Avenue
One of the key features of Avenue street lights is their energy efficiency. Equipped with state-of-the-art LED technology, these lights consume significantly less energy than traditional street lights, which means lower electricity bills and a reduced environmental footprint. Plus, with a long lifespan of at least 60,000 hours, you won't need to worry about frequent replacements or maintenance.

Product Description

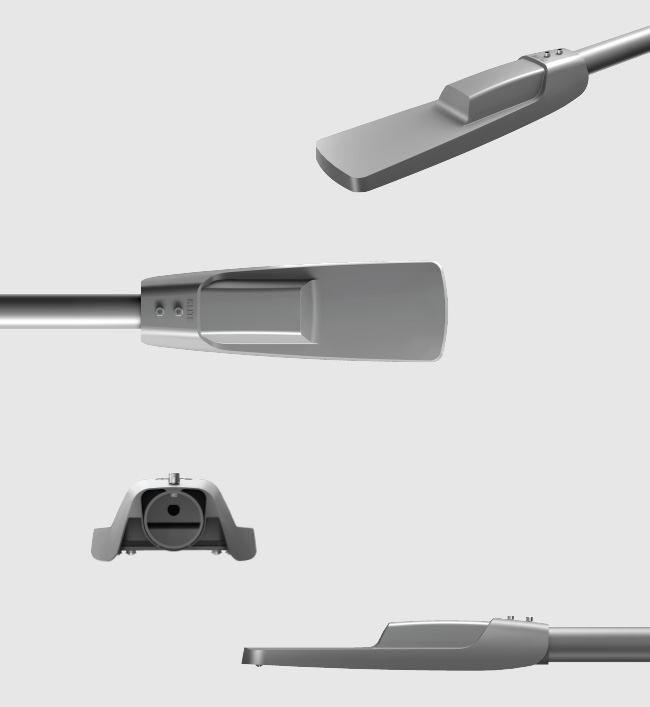

• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Suitable for Mounting on 38mm / 60mm OD pipe
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >70 (>80 On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24391-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

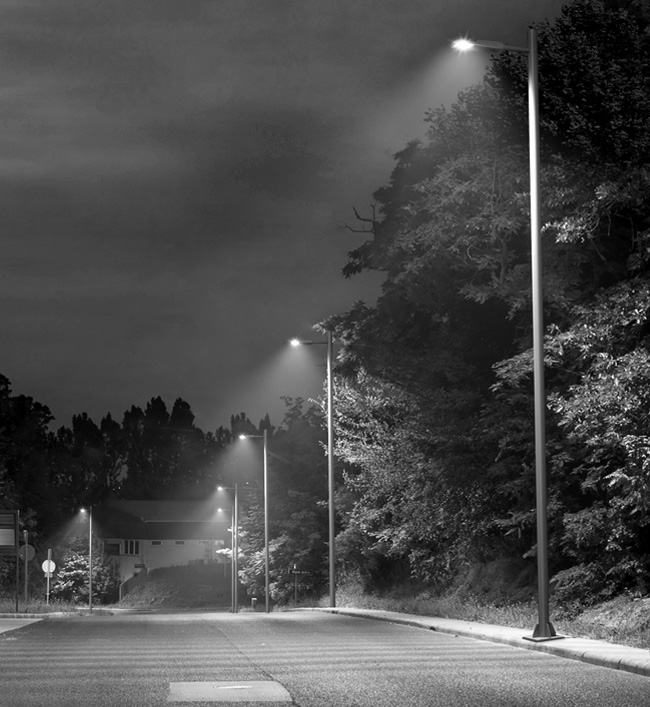

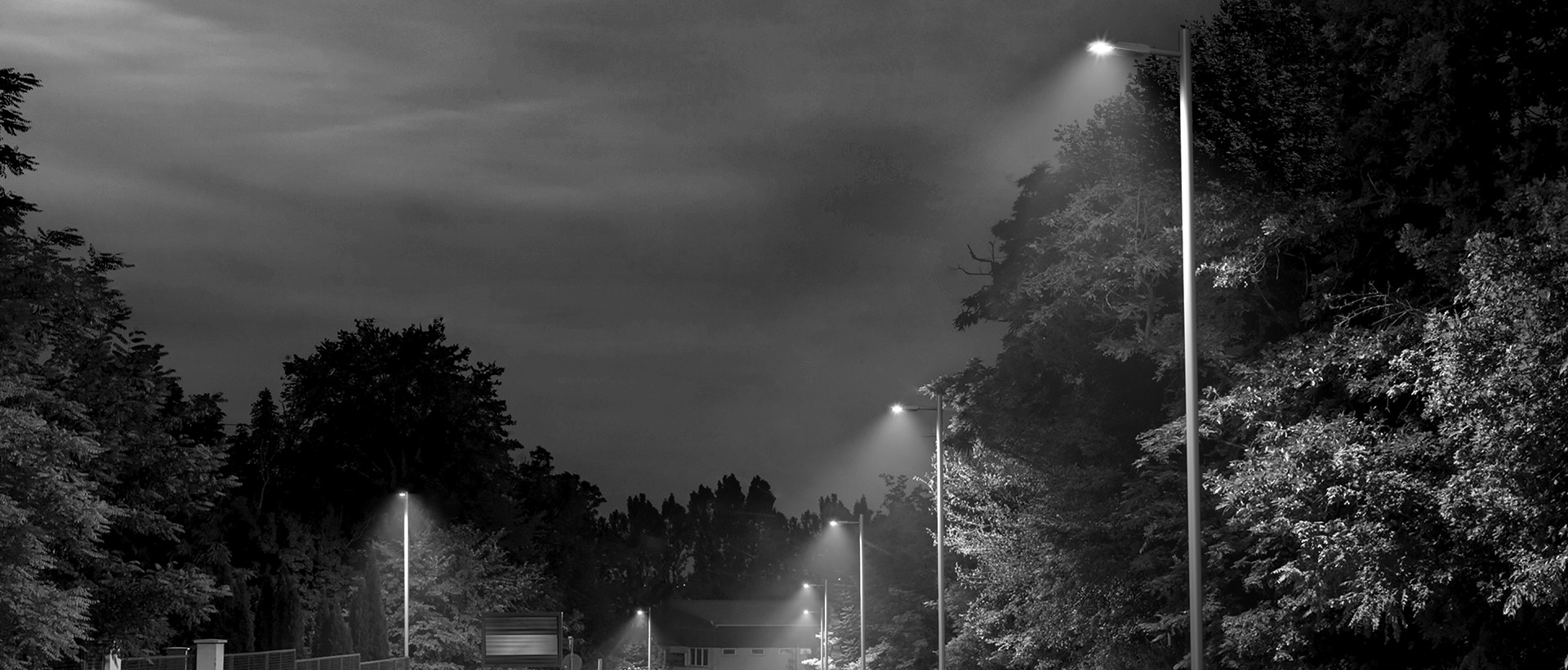

Illuminating parks, Gardens, Commercial complex, Private driveways, Street lighting, Smaller roadways, Residential area lighting

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDSpecificationIESPhotometryTechnical DatasheetTechnical Description
24392

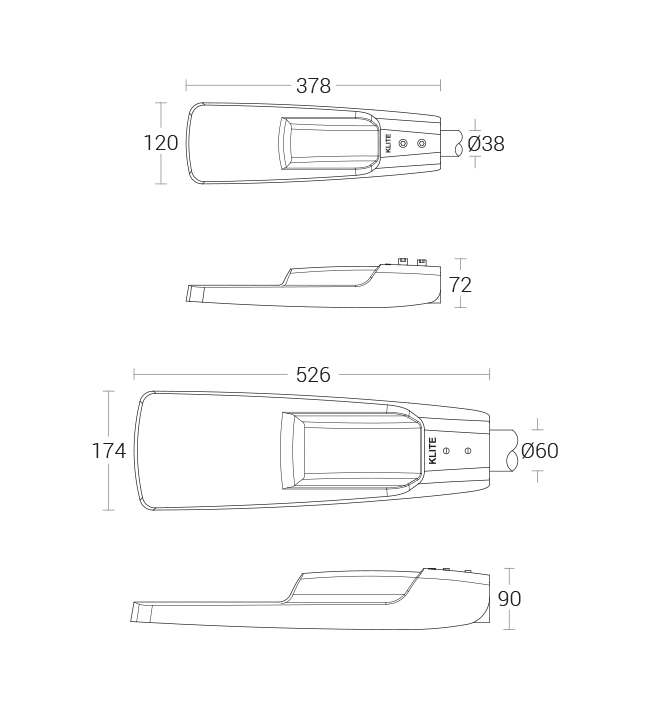

Dimension : 526 x 174 x 90
LuminaireCoupling : Ø60 - Ht.100mm
Wattage : 100W, 120W
CCT : 3000K, 4000K, 5700K
CRI : >70
Optics : Type II
ProductFinish : Powder Coating, Marine Grade Powder
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 5 Years
Diffuser : Clear Toughened Glass
24392-BATYPEII-3000K.IES
24392-BATYPEIII-3000K.IES
24392-BATYPEIV-3000K.IES
24392-BATYPEII-4000K.IES
24392-BATYPEIII-4000K.IES
24392-BATYPEIV-4000K.IES
24392-BATYPEII-5700K.IES
24392-BATYPEIII-5700K.IES
24392-BATYPEIV-5700K.IES
24392-BATYPEII-3000K.PDF
24392-BATYPEIII-3000K.PDF
24392-BATYPEIV-3000K.PDF
24392-BATYPEII-4000K.PDF
24392-BATYPEIII-4000K.PDF
24392-BATYPEIV-4000K.PDF
24392-BATYPEII-5700K.PDF
24392-BATYPEIII-5700K.PDF
24392-BATYPEIV-5700K.PDF
24392.pdf 24392.txt
24391
Dimension : 378 x 120 x 72
LuminaireCoupling : Ø38 - Ht.80mm
Wattage : 40W, 50W
CCT : 3000K, 4000K, 5700K
CRI : >70
Optics : Type II
ProductFinish : Powder Coating, Marine Grade Powder
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 5 Years
Diffuser : Clear Toughened Glass
24391-BATYPEII-3000K.IES
24391-BATYPEIII-3000K.IES
24391-BATYPEIV-3000K.IES
24391-BATYPEII-4000K.IES
24391-BATYPEIII-4000K.IES
24391-BATYPEIV-4000K.IES
24391-BATYPEII-5700K.IES
24391-BATYPEIII-5700K.IES
24391-BATYPEIV-5700K.IES
24391-BATYPEII-3000K.PDF
24391-BATYPEIII-3000K.PDF
24391-BATYPEIV-3000K.PDF
24391-BATYPEII-4000K.PDF
24391-BATYPEIII-4000K.PDF
24391-BATYPEIV-4000K.PDF
24391-BATYPEII-5700K.PDF
24391-BATYPEIII-5700K.PDF
24391-BATYPEIV-5700K.PDF
24391.pdf 24391.txt
