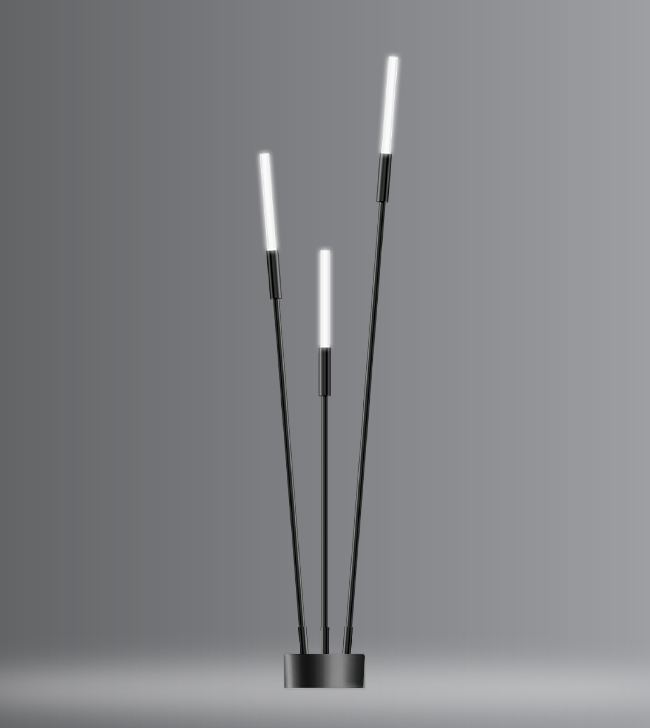

Stix Light
Product Description
• Luminaire made of extrusion aluminium tube.
• Pure polyester powder coated finish for high durablity.
• Non yellowing UV stabilized Clear Acrylic Rod.
• Die cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.
• Integral constant current power supply suitable for operating on 240V, 50Hz single phase AC supply.
• Luminaire supplied with one metre cable length and IP67 connector.
• Ordering guide : KL-24553-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K (Special CCT on request - Amber / Red / Green / Blue).
Product Benefits
• Timeless modern design, quick & simple installation.
• Soft diffused lighting provides pedestrians glareless and distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Suitable for gated community and non-public / low density public areas.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Special finish : Teak / Bamboo - On Request
• Luminaire made of extrusion aluminium tube.
• Pure polyester powder coated finish for high durablity.
• Non yellowing UV stabilized Clear Acrylic Rod.
• Die cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.
• Integral constant current power supply suitable for operating on 240V, 50Hz single phase AC supply.
• Luminaire supplied with one metre cable length and IP67 connector.
• Ordering guide : KL-24553-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K (Special CCT on request - Amber / Red / Green / Blue).
Product Benefits
• Timeless modern design, quick & simple installation.
• Soft diffused lighting provides pedestrians glareless and distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Suitable for gated community and non-public / low density public areas.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Special finish : Teak / Bamboo - On Request
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

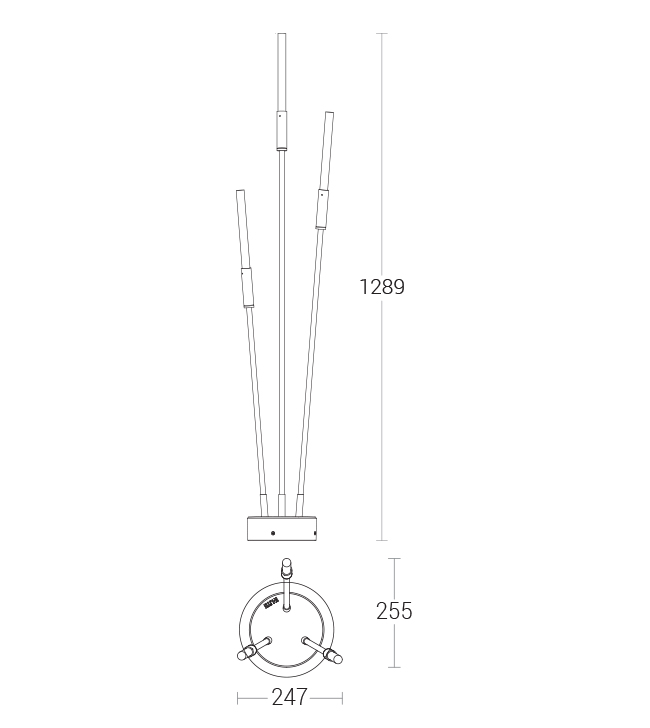

| 24553 | Dimension : 247 x 255 x 1289 Wattage : 3 x 3W CCT : 3000K, 4000K, 5700K, 2700K CRI : >80 ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 3 Years Diffuser : Clear Acrylic Rod | 24553.pdf | 24553.txt |
Configuration Options
