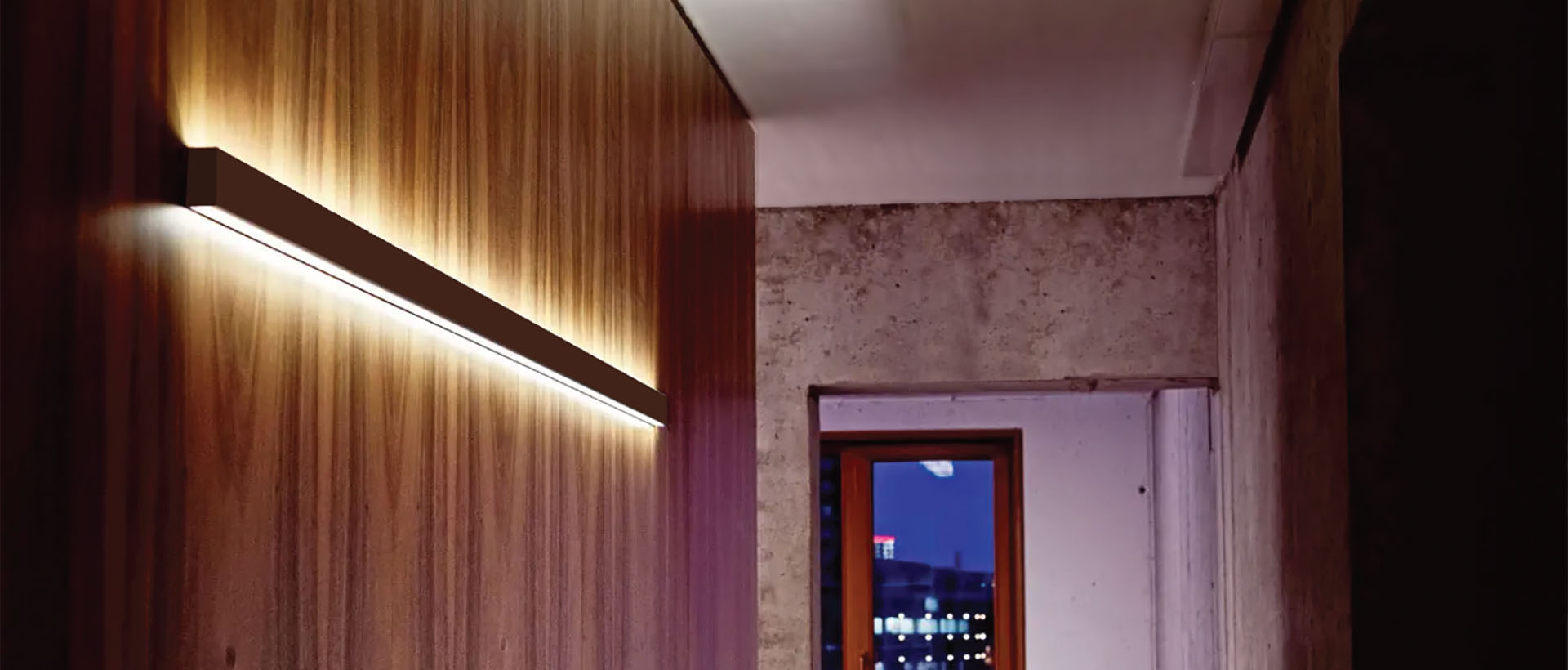

Up & Down

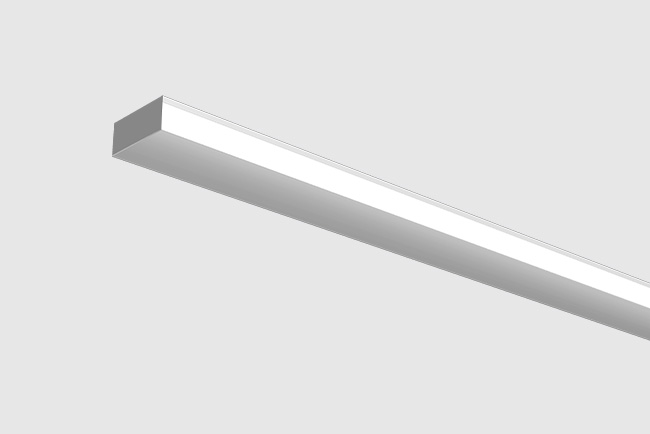

Linear Lighting will to suit ceiling / wall / pendant is a slim and elegantly designed fixture,suited for varied applications offers a uniform,glareless and soft lighting.

Product Description
• Luminaire made of extruded aluminium for better thermal management.
• PC opal matte diffuser for excellent diffused lighting experience throughout the life of the fixture.

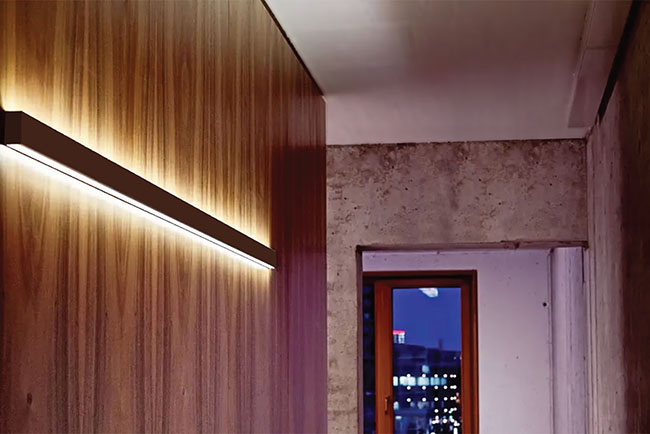

• Designed for mounting on wall.
• Cable entries for through-wiring of mains supply cable
• To be used with LED strip & power supply unit of suitable rating.
• Cable entries for through-wiring of mains supply cable
• Integral power supply.
• Suitable for operation on 240V, 50Hz single phase ac supply.

Product Benefits
• Attractive high quality housing.
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

Area of Application
Corporate Offices,Malls,Restaurants,Receptions,Corridors,Commercial & Business Centers,Residential lighting, etc.
IDSpecificationIESPhotometryTechnical DatasheetTechnical Description
22861

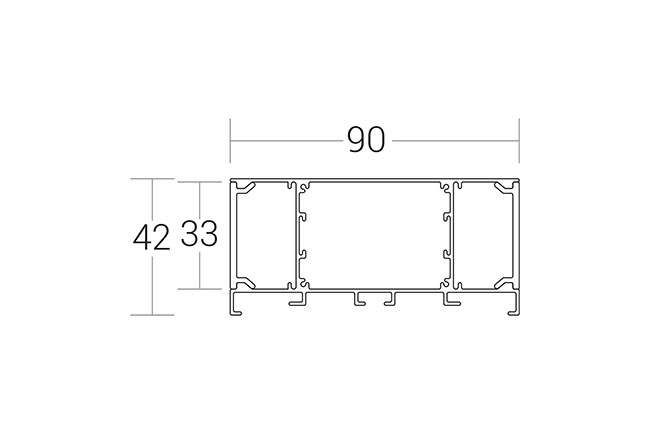

Dimension : 1220 x 90 x 42
Wattage : Upto 2 x 20W
CCT : 3000K, 4000K, 5700K, 2700K
CRI : >80
Optics : 115°
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 5 Years
Mounting : Surface Mounting
Diffuser : PC Opal Matte
Controls : Switchable
22861.pdf
Standard Length available in 1.2, 2.4metres
