Polar - Wall Bracket

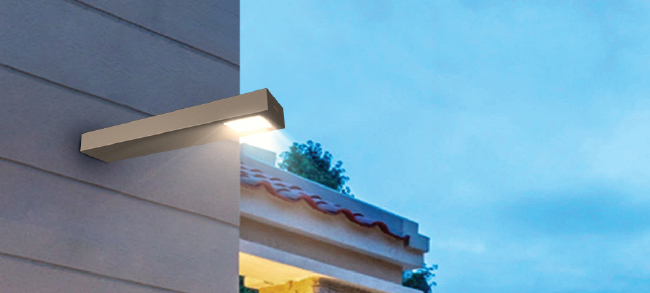

Surface mounted range of LED wall light is perfect fit for varied outdoor lighting applications. Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Product offered asymmetrical light distribution.
Product Description
• Luminaire body made of extruded aluminium (grade 6063) with aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 60W LED.
• Mounting bracket for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the
power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : =80
• Suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24416-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Commercial complex, Pathways in residential buildings & office complex, Residential area lighting.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Product Description
• Luminaire body made of extruded aluminium (grade 6063) with aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 60W LED.
• Mounting bracket for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the
power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : =80
• Suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24416-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K
Product Benefits
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Area of Application
Commercial complex, Pathways in residential buildings & office complex, Residential area lighting.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

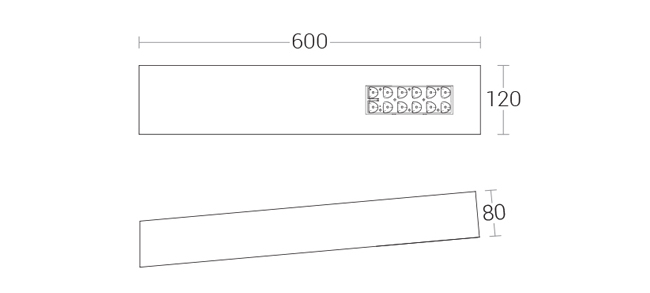

| 24414 | Dimension : 600 x 120 x 80 Wattage : 30W CCT : 3000K, 4000K, 5700K, 2700K Optics : Type III ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years Diffuser : Polycarbonate Optical Lens | 24414.pdf | 24414.txt | ||
| 24415 | Dimension : 600 x 120 x 80 Wattage : 50W CCT : 3000K, 4000K, 5700K, 2700K Optics : Type III ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years Diffuser : Polycarbonate Optical Lens | 24415.pdf | 24415.txt | ||
| 24416 | Dimension : 600 x 120 x 80 Wattage : 60W CCT : 3000K, 4000K, 5700K, 2700K Optics : Type III ProductFinish : Powder Coating ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 5 Years Diffuser : Polycarbonate Optical Lens | 24416.pdf | 24416.txt |
Configuration Options
