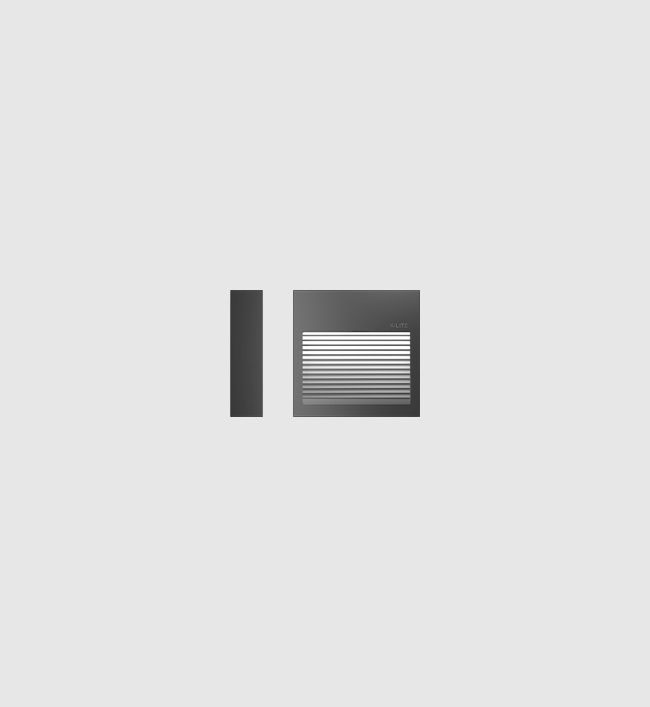

Rado Mini
Asymmetrical surface mount floor washer with a wide beam for glare free illumination of pathways, entrances etc. Sustainable LED technology offers durability and optimal light output with lower power consumption.

Material
Body : Pressure die cast aluminium
Impact Protection : IK09
Ingress Protection : IP65
Diffuser : Clear polycarbonate
Gasket : Clear silicone gasket
Mounting : Wall - Surface

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 2KV

Product Configurations
Wattage : 6W
Light Distribution : Asymmetrical
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application

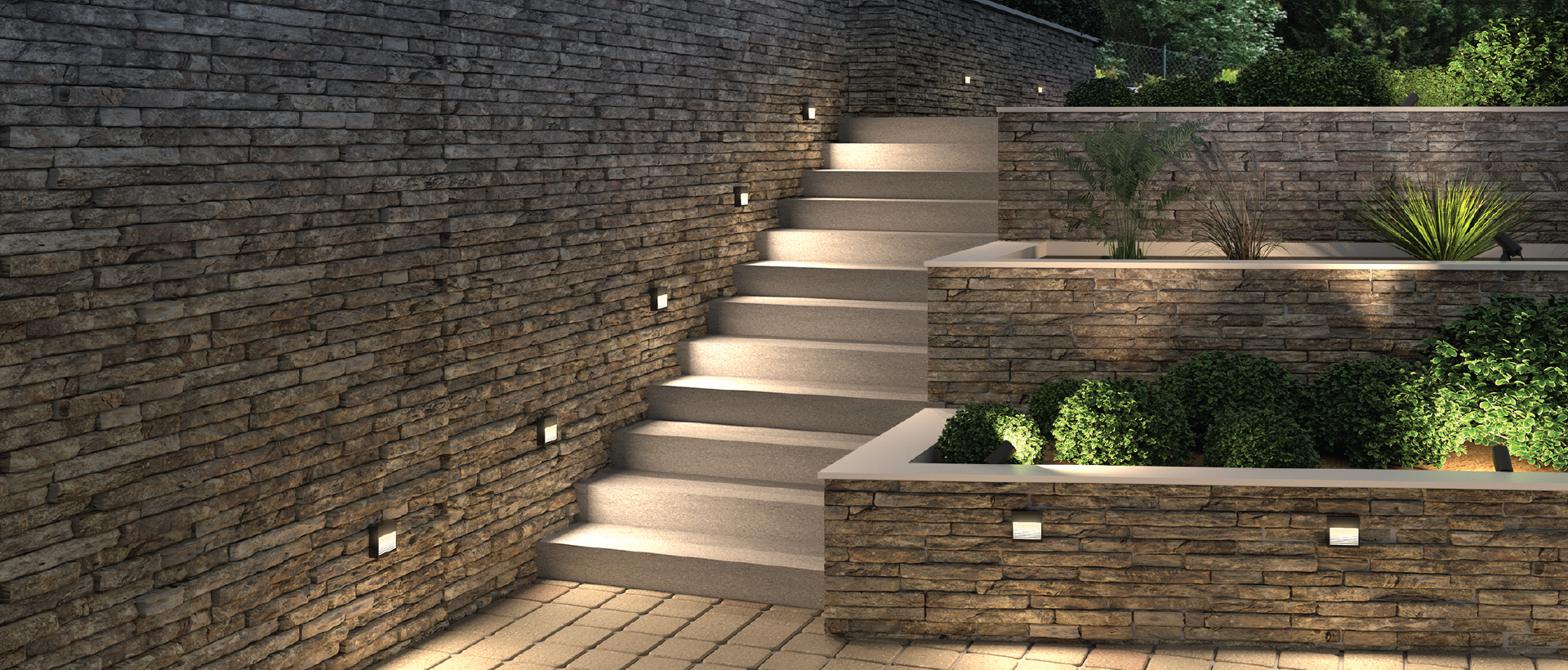

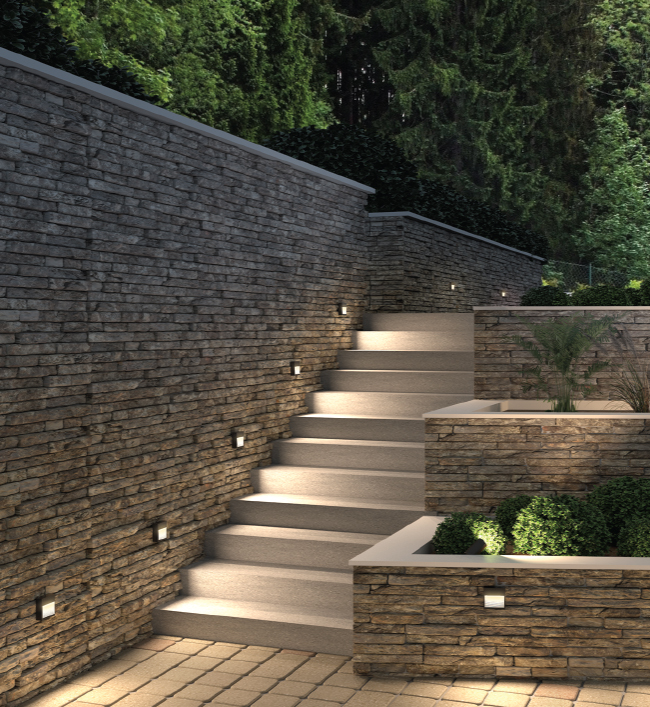

Staircase, Patios, Walkways, Passages, Porches, Entrance & Exits for both Interior & Exterior applications.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDSpecificationIESPhotometryTechnical DatasheetTechnical Description
22776

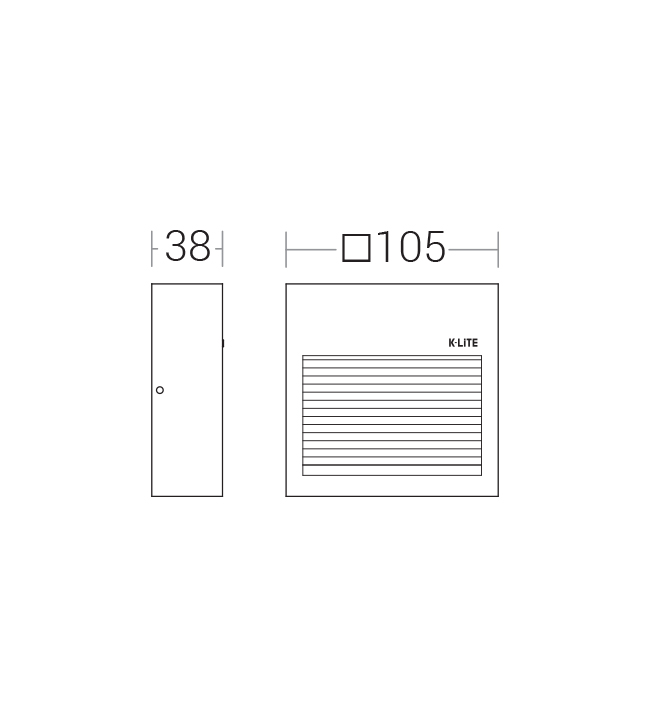

Dimension : Sq.105 x 38
Wattage : 6W
CCT : 3000K, 4000K, 5700K, 2700K
CRI : >80
ProductFinish : Powder Coating, Marine Grade Powder
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 3 Years
Diffuser : Clear Polycarbonate
22776-BA--2700K.IES
22776-BA--3000K.IES
22776-BA--4000K.IES
22776-BA--5700K.IES
22776-BA--2700K.PDF
22776-BA--3000K.PDF
22776-BA--4000K.PDF
22776-BA--5700K.PDF
22776.pdf 22776.txt
