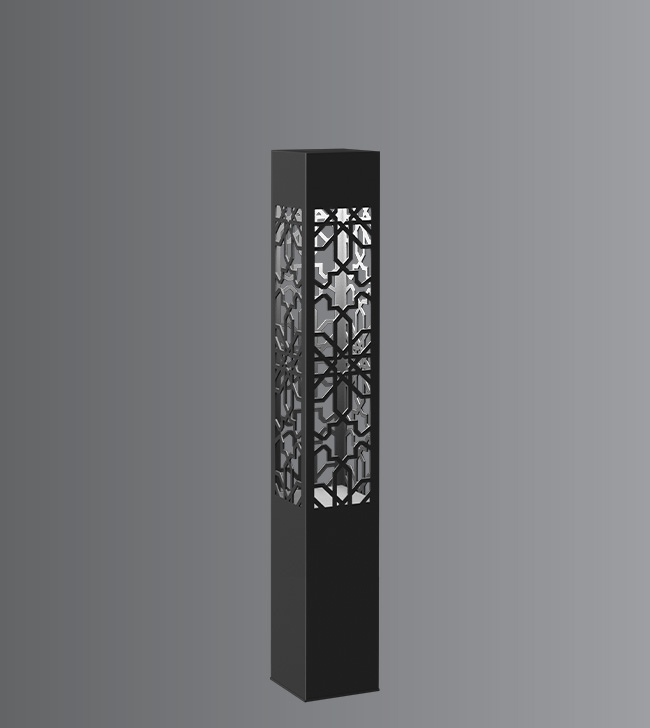

Verbena Square Bollard

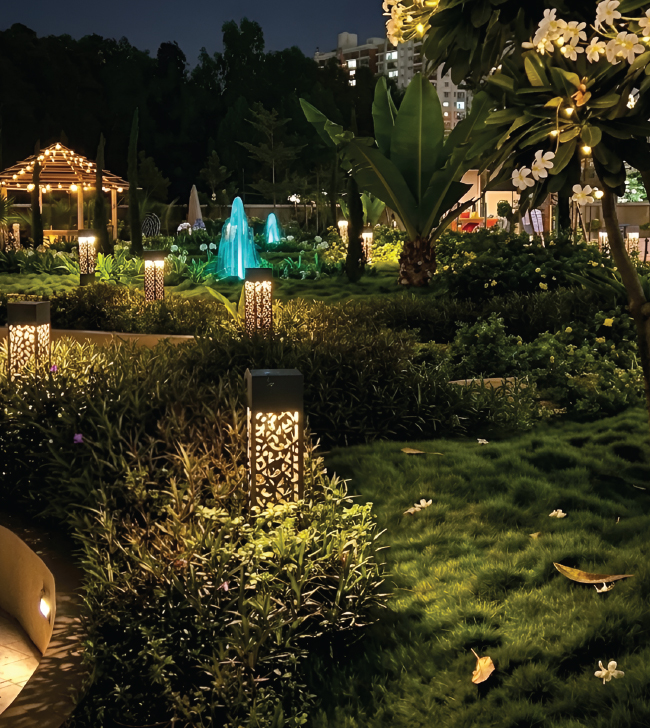

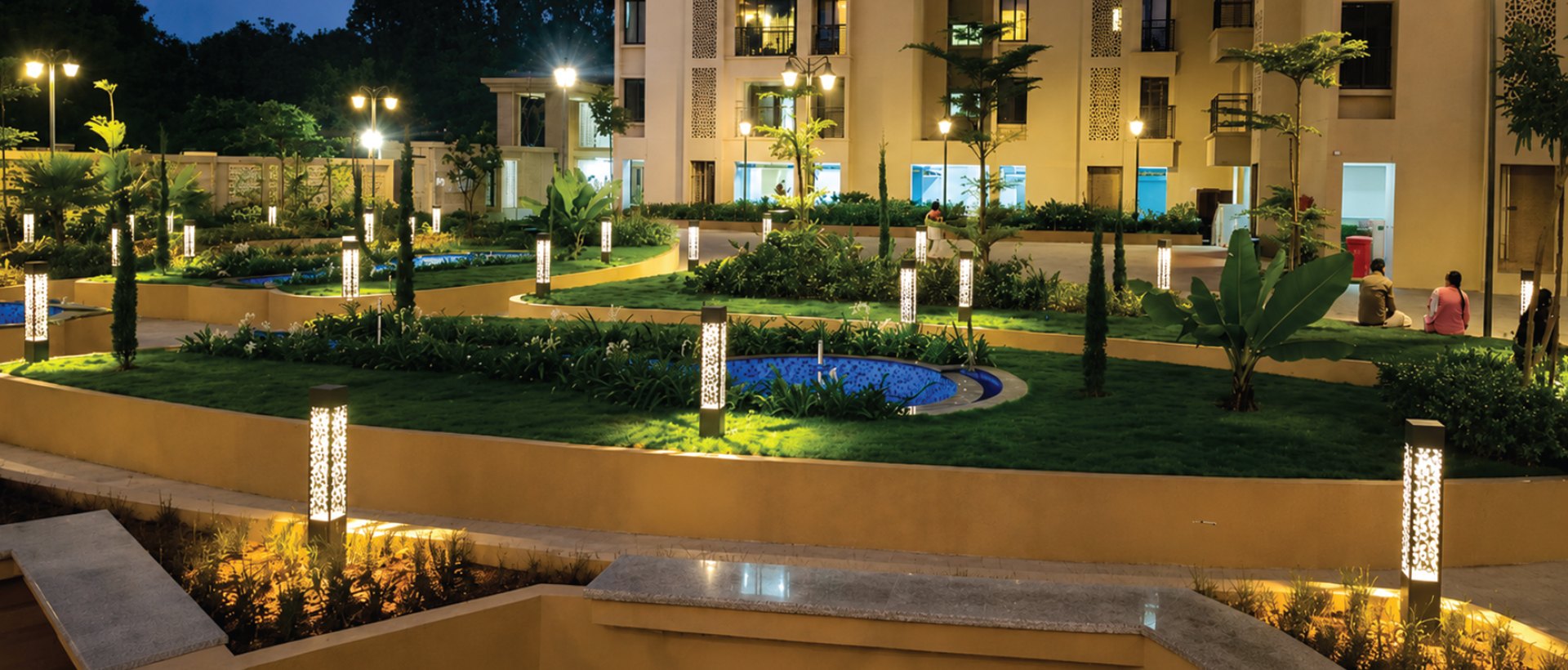

The Verbena bollard lights from K-Lite Lighting bring vitality and drama to landscape lighting applications. These decorative bollards project a compelling nature-inspired pattern downward onto the ground, adding a stunning pictorial drama to night time beauty of the landscape with excitement and fun.
Product Description
• Luminaire body made of square aluminium tube (grade 6063) with aluminium components and SS fasteners.
• For optimum coordination with lighting situation, luminaires can be supplied in different bespoke design options.
• Silicone gasket
• Luminaire integrated with 12W LED.
• Mounting plate pressure die cast aluminium with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : 90
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24735-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K
Product Benefits
• Elegant, Robust design
• Corrosion resistant and Maintenance free.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption
Area of Application
Suitable for low / medium traffic areas.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
Product Description
• Luminaire body made of square aluminium tube (grade 6063) with aluminium components and SS fasteners.
• For optimum coordination with lighting situation, luminaires can be supplied in different bespoke design options.
• Silicone gasket
• Luminaire integrated with 12W LED.
• Mounting plate pressure die cast aluminium with an anchorage unit and stainless steel fixing screws.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : 90
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24735-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K
Product Benefits
• Elegant, Robust design
• Corrosion resistant and Maintenance free.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption
Area of Application
Suitable for low / medium traffic areas.
Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
| ID | Specification | IES | Photometry | Technical Datasheet | Technical Description |
|---|---|---|---|---|---|

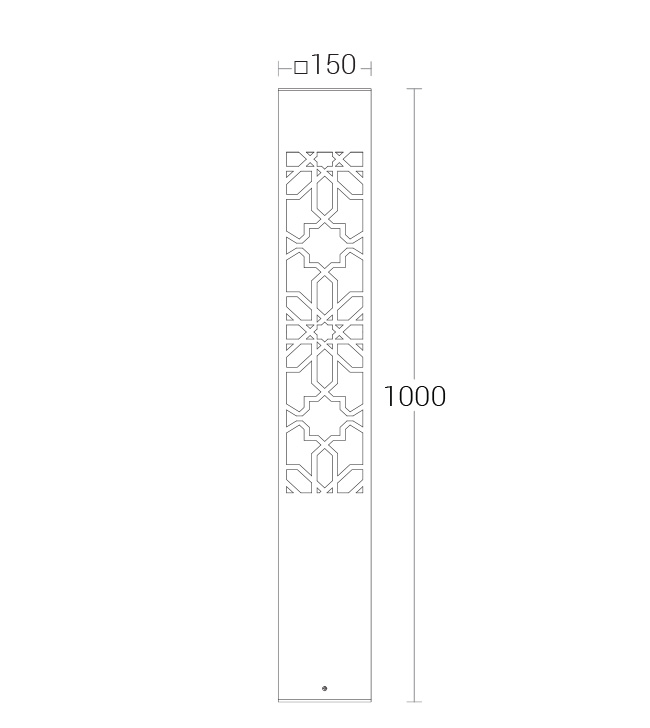

| 24735 | Dimension : Sq.150 x 1000 Wattage : 12W CCT : 3000K, 4000K, 6500K, 2700K CRI : 90 ProductFinish : Powder Coating, Marine Grade Powder ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White Warranty : 3 Years LuminaireOption : P14, P33, P01, P13, P22 | 24735-BA--WW.IES 24735-BA--CW.IES 24735-BA--NW.IES |
24735-BA--WW.PDF 24735-BA--CW.PDF 24735-BA--NW.PDF |
24735.pdf | 24735.txt |
Configuration Options
