Corvus Hybrid
These environmentally friendly LED garden and pathway luminaires, create a pleasant light distribution with a high degree of visual comfort. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with pressure die-cast aluminium components and non corrosive SS fasteners.
• Clear toughened glass.
• Silicone gasket.
• Mounting earth spike arrangement to facilitate easy installation at any desired location.
• Integral constant current power supply
• CRI ( Ra) : 90
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-24262-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 6500K

Product Benefits
• Elegant, Robust design
• Quick & simple installation.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.

Area of Application
Pathways, Parks, Sculptures, Gardens, Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDSpecificationIESPhotometryTechnical DatasheetTechnical Description
24262

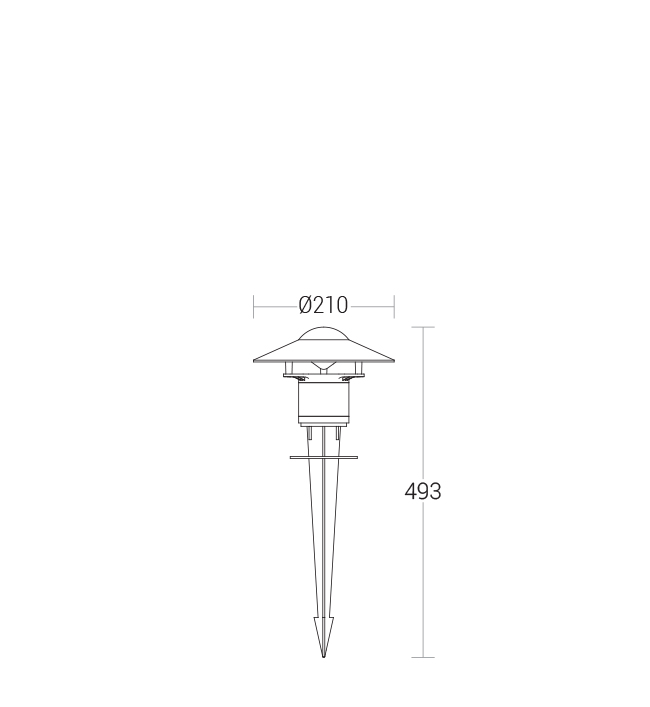

Dimension : Ø210 x 493
Wattage : 12W
CCT : 3000K, 4000K, 6500K, 2700K
CRI : 90
ProductFinish : Powder Coating
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 3 Years
Diffuser : Toughened Clear Glass
24262-BA--WW.IES
24262-BA--CW.IES
24262-BA--NW.IES
24262-BA--WW.PDF
24262-BA--CW.PDF
24262-BA--NW.PDF
24262.pdf 24262.txt
