Bamboo Bollard
These flower bed luminaire is a combination of low height tube. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and external non corrosive SS fasteners.
• For optimum coordination with lighting situation, these luminaries can be supplied in two different heights.
• Clear toughened glass.
• Pressure die-cast aluminium mounting base.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-22534-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for low traffic areas.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDSpecificationMountingIESPhotometryTechnical DatasheetTechnical Description
22534

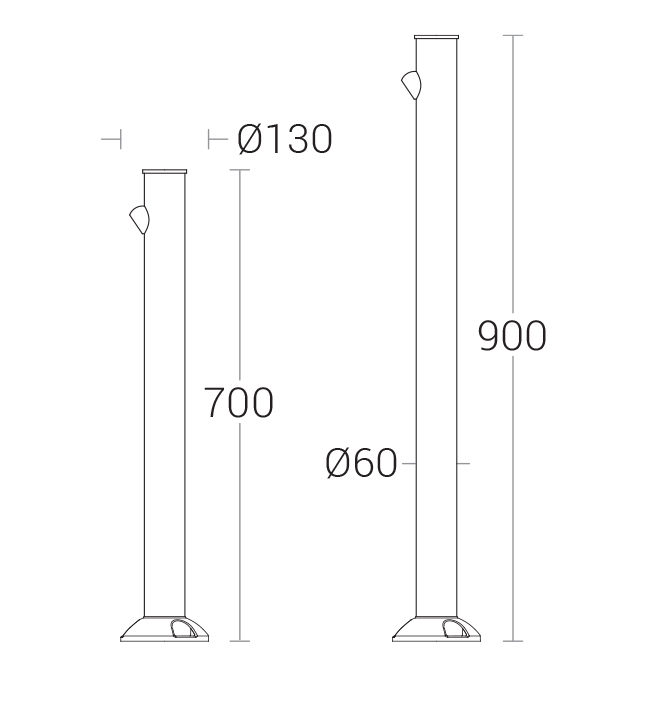

Dimension : Ø130 x 700, Ø130 x 900
Wattage : 6W
CCT : 3000K, 4000K, 5700K, 2700K
CRI : >80
ProductFinish : Powder Coating
ProductFinishColour : RAL 9004 Black, Graphite Grey, RAL 7016 Anthracite Grey, RAL 9007 Grey Aluminium, RAL 9016 Traffic White
Warranty : 3 Years, 5 Years
Diffuser : Clear Toughened Glass
M57
Detailed Foundation Drawing
22534.pdf 22534.txt
