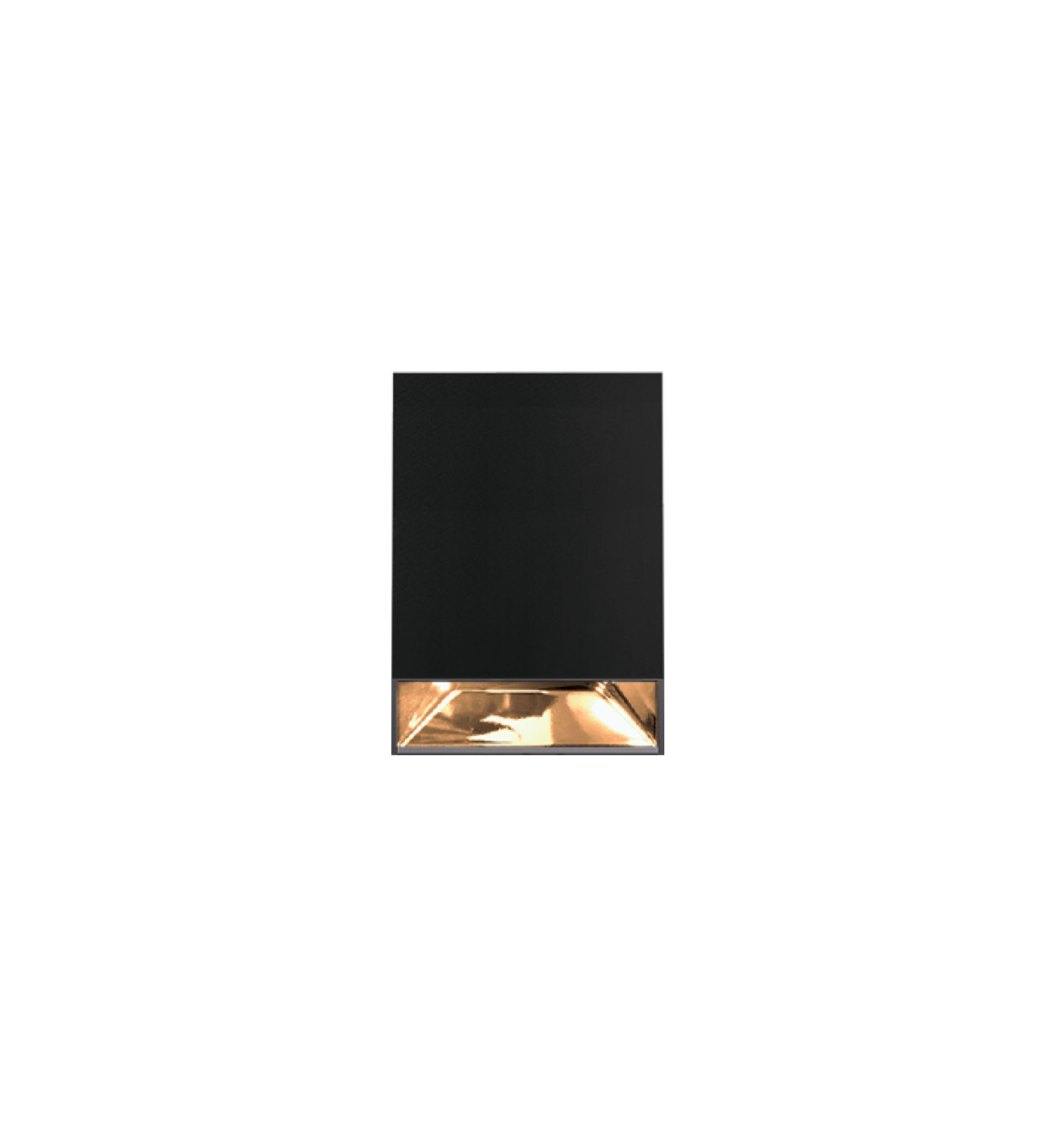

Astra Square
Astra surfaced mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The die cast aluminium housing is ideal for better thermal management.High lumen output make this luminaire versatile for indoor lighting solutions.

Product Description
• Luminaire made of die-cast aluminium for better thermal management.
• Die-cast aluminium inner ring with reflector for uniform light distribution.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable
• Available in 30° beam angle
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Safety class II
• Ordering guide : KL-3687-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6000K

Product Benefits
• Excellent efficiency for high energy savings of up to 80% compared to CFL downlights.
• Replacement of existing CFL downlights with even better performance.
• Quick & simple installation.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

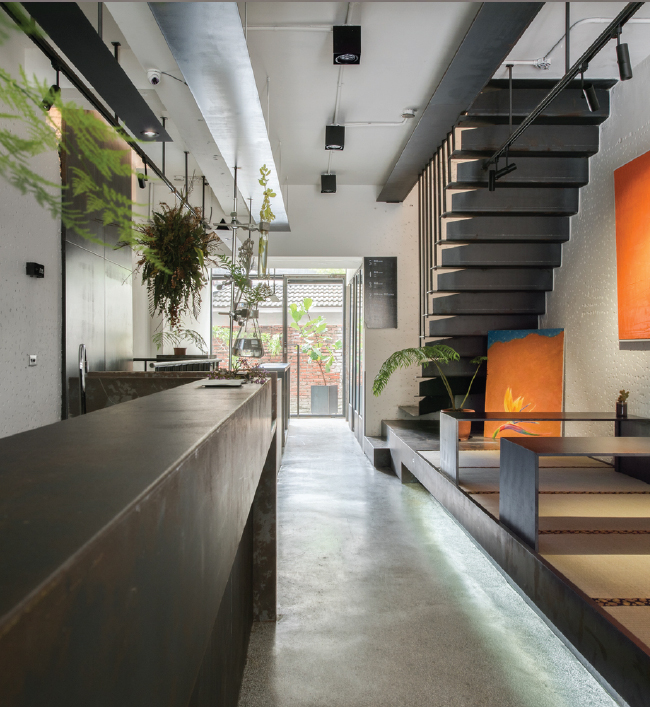

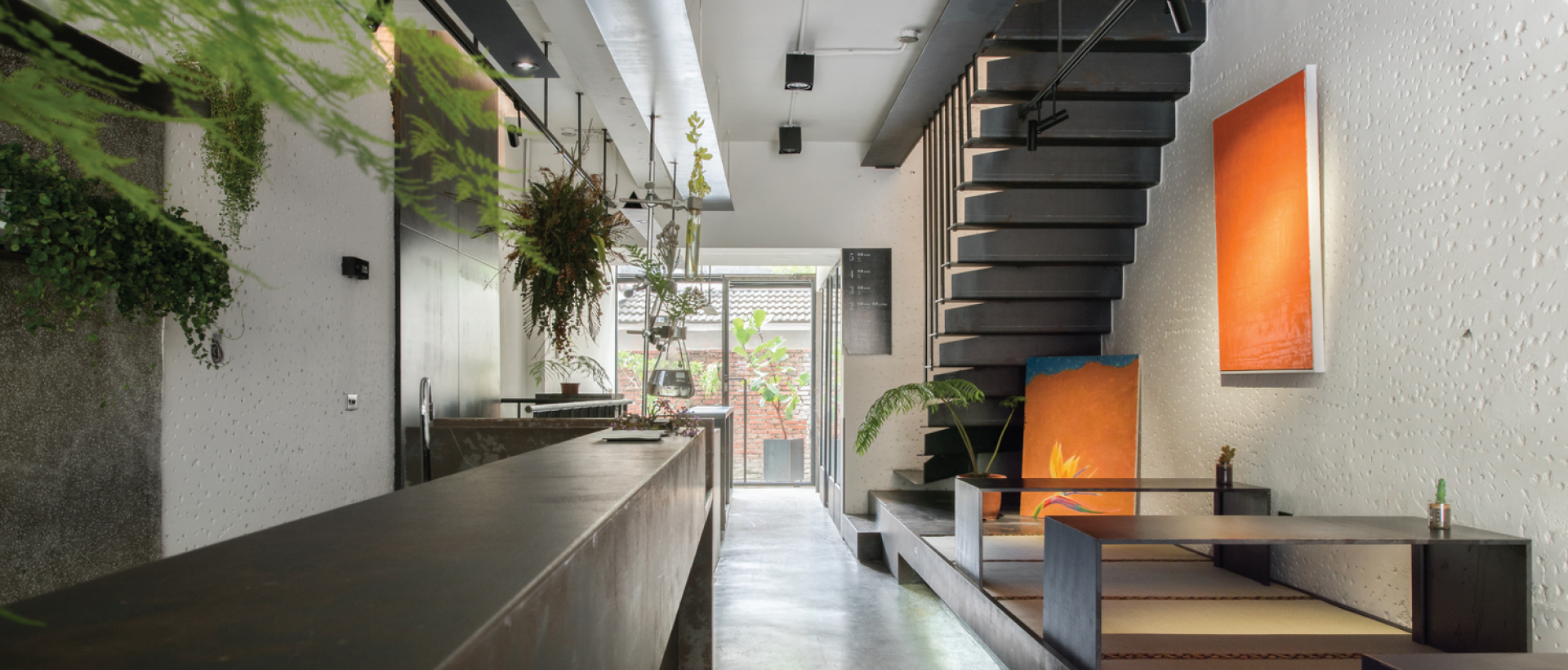

Area of Application
Lobbies & Foyers, Retail Sector, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, etc.

Available Finish
Epoxy polyester powder coated Black & Rose Gold and White & Silver

Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

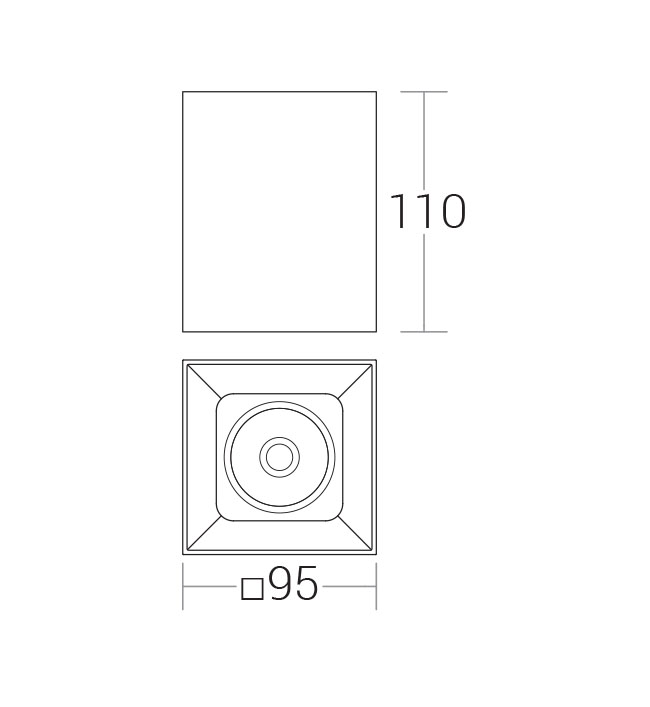

KL-368720W LED WW,NW,CW BA:30°, Clear PolycarbonateSq.95 x 110mmKL-3687.IESKL-3687.PDF3687.pdf
