Proxima

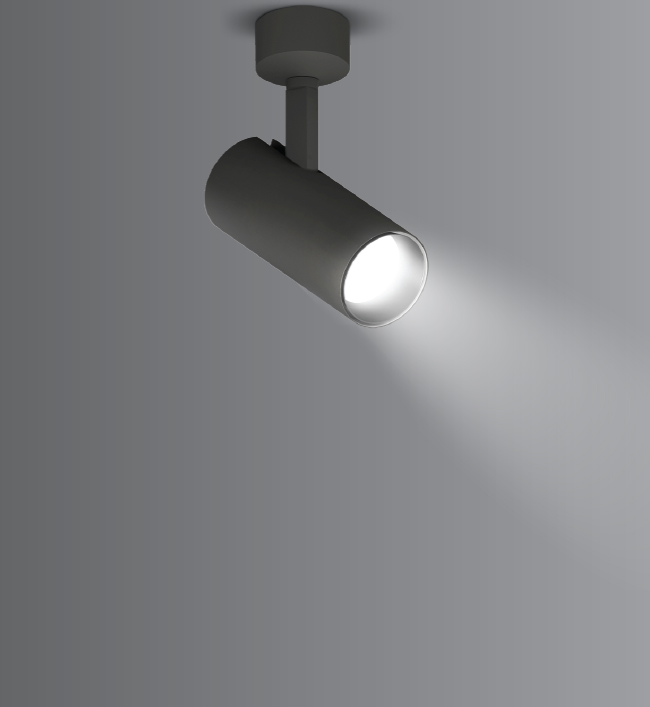

"Proxima" surface mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The extruded aluminium housing is ideal for better thermal management. Different wattage available make this luminaire versatile for indoor lighting solutions.

Product Description
• Luminaire made of extruded aluminium for better thermal management.
• The lamp along with driver is housed inside the extruded hallow circular aluminium pipe.
• Polycarbonate optical lens cover for glare free uniform light distribution.
• Bracket to facilitate proper aiming of the luminaire at desired angle.
• Available in 12°, 24°, 36° beam angles
• Surface mounting on ceiling using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3680-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K (5700K,6500K on request)

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly.
• Quick & simple installation.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

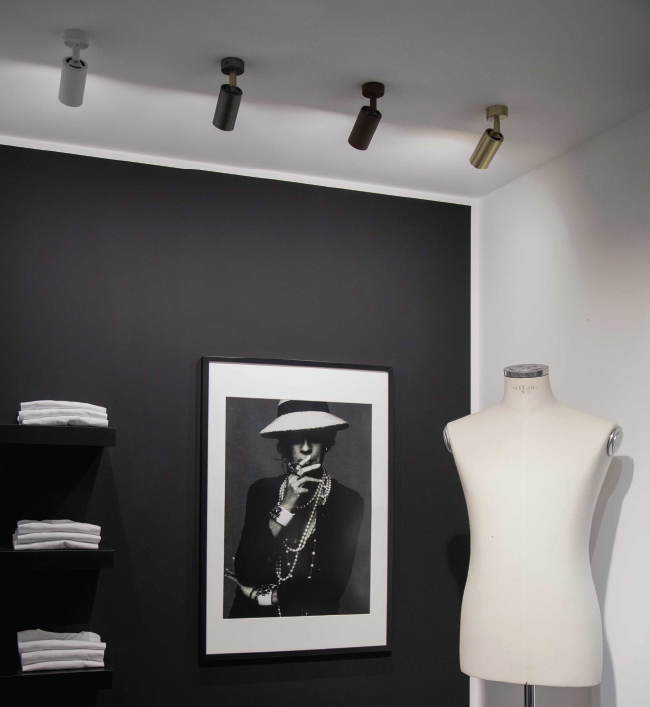

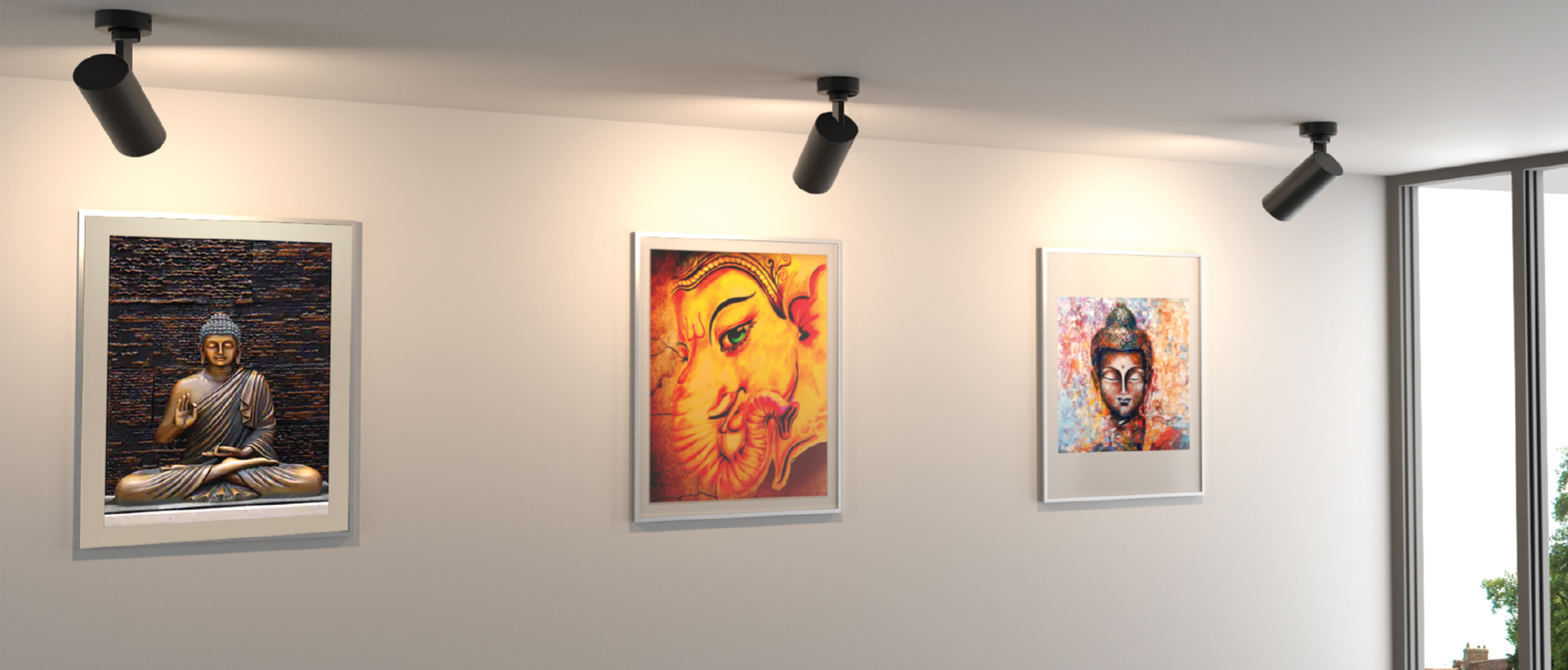

Area of Application
Retail Sector, Corporate, Malls, Restaurants, Receptions, Corridors, Commercial & Business Centers, etc.

Available Finish
Pure polyester powder coated
• White
• Black

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

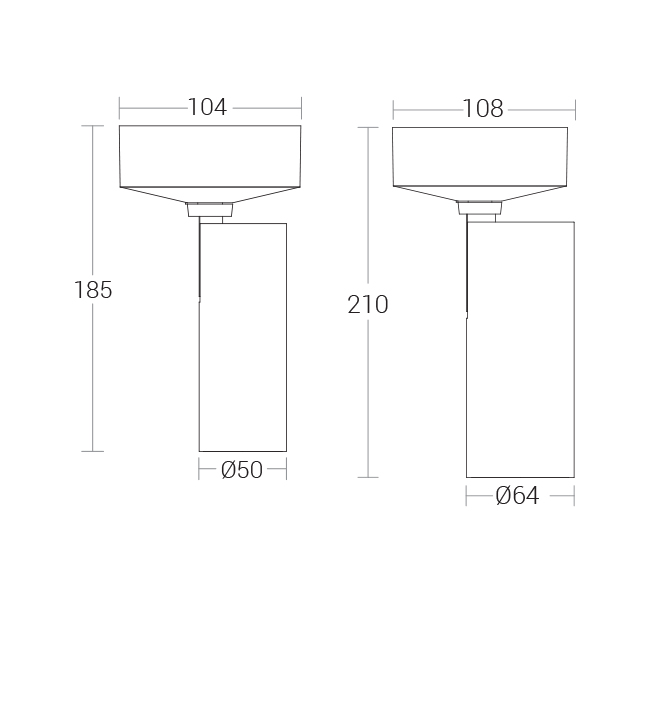

KL-368012W LED WW,NW BA:12°,24°,36°, Clear PolycarbonateØ50 x 104 x 185mmKL-3680.IESKL-3680.PDF3680.pdf
KL-3680.txt
KL-368120W LED WW,NW BA:12°,24°,36°, Clear PolycarbonateØ64 x 108 x 210mmKL-3681-BA12°-WW.IES
KL-3681-BA24°-NW.IES
KL-3681-BA24°-NW.IES
KL-3681-BA12°-WW.IES
KL-3681-BA12°-WW.PDF
KL-3681-BA24°-NW.PDF
KL-3681-BA24°-NW.PDF
KL-3681-BA12°-WW.PDF
3681.pdf
KL-3681.txt
