Proxima
Proxima series adopt the energy-saving, environmental LED lamp. It is a Perfect lamp with high luminous efficiency, prominent energy saving effect and long lifespan. Also with no radialization, no strobe flash, gentle light. It’s appearance is refined and elegant.

Product Description

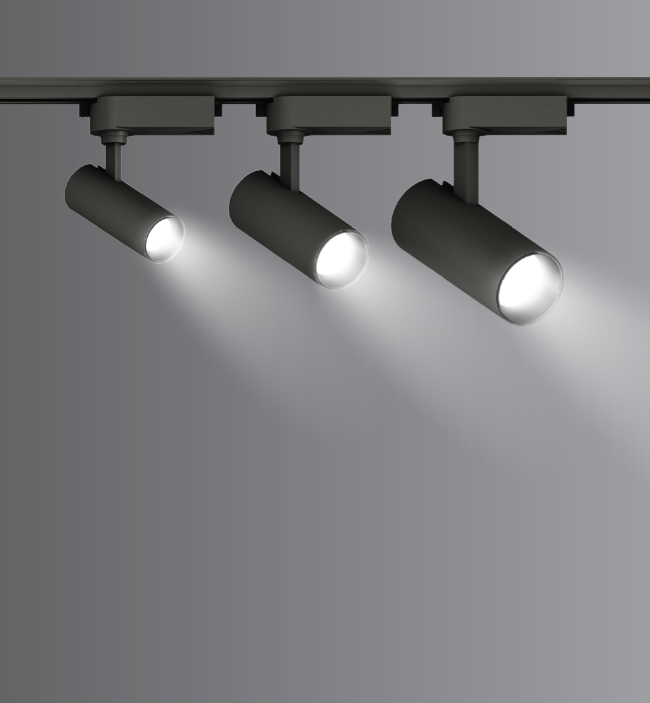

• Adjustable spot light with adapter for installation on track. Luminaire made of die cast aluminium 360° on vertical axis and 90° tilt.
• The body of LED spot light adopt aluminium alloy which has excellent mechanical strength, extruded aluminium for better thermal management.
• Adopting reflector which is with excellent optics effect and excellent spot light effect.
• Two circuit connector, directionally adjustable, convenient installation and maintenance.
• Luminaire provided with built-in-constant current driver with advanced circuit design achieves stable performances and long services span.
• Integral constant current power supply.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3679-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K (5700K,6500K on request).

Product Benefits
• Excellent efficiency for high energy savings of up to 80% compared to CFL downlights.
• Replacement of existing CFL downlights with even better performance.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

Area of Application

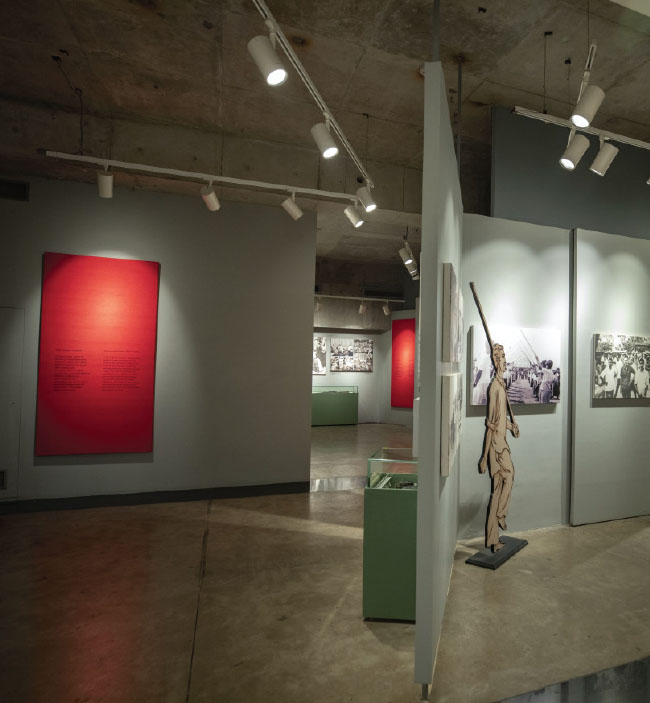

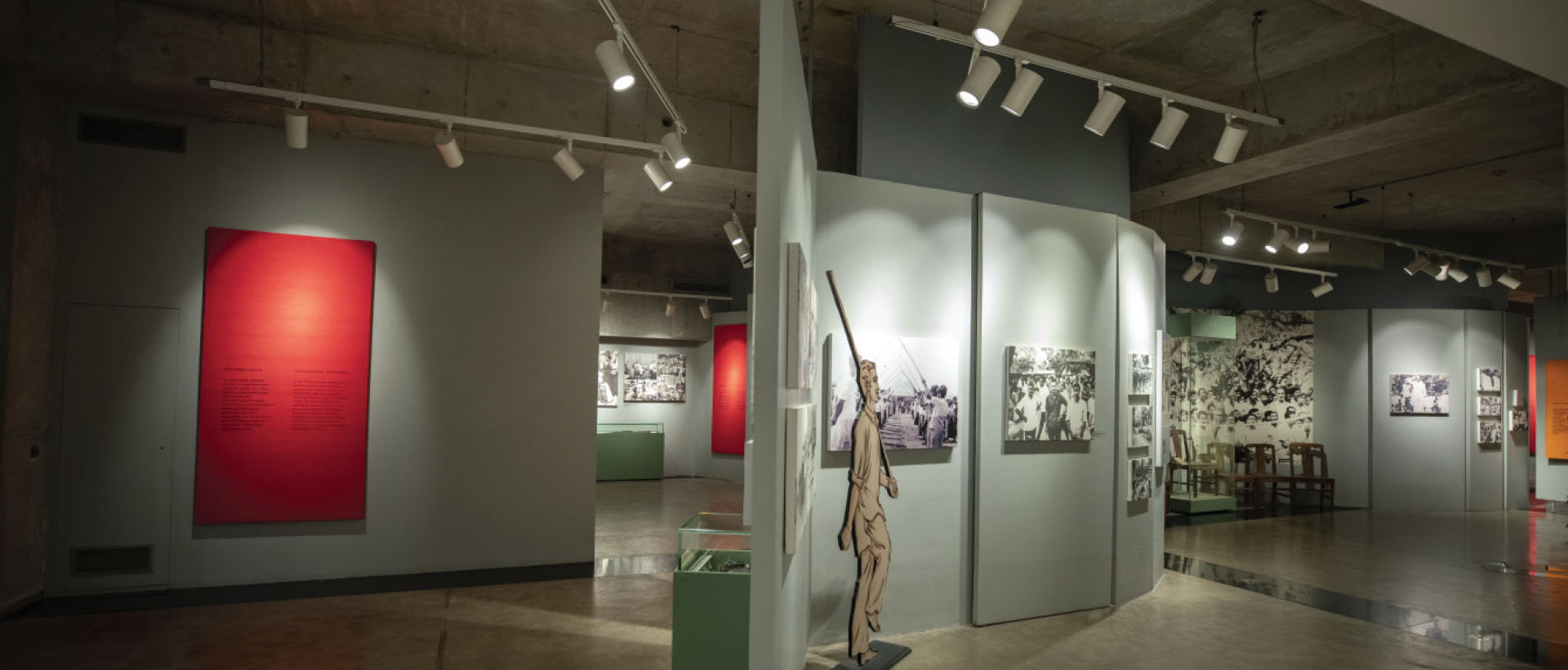

Retail Sector, Receptions, Large shopping malls, Brand sales, Museum / Art Gallery display, etc.

Available Finish
Epoxy polyester powder coated White / Black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-7807I Connector7807.pdf
KL-7814L Connector7814.pdf
KL-7819T Connector7819.pdf
KL-7824+ Connector7824.pdf
KL-78031 Meter 2 Wire Track1000mm7803.pdf
KL-32062 Meter 2 Wire Track2000mm3206.pdf

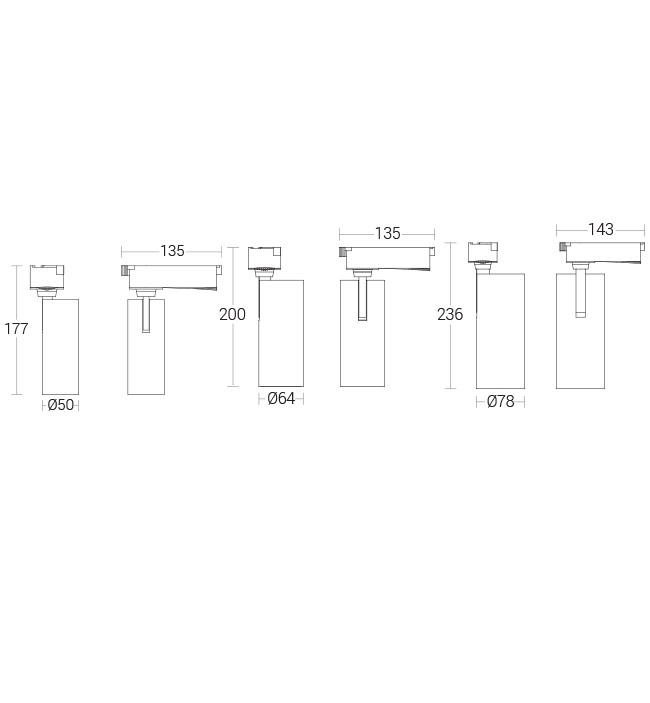

KL-367712W LED 2700K,3000K,4000K,6500K BA:12°,24°,36°, Clear PolycarbonateØ50 x 135 x 177mmKL-3677-BA24°-WW.IES
KL-3677-BA24°-CW.IES
KL-3677-BA24°-NW.IES
KL-3677-BA24°-WW.PDF
KL-3677-BA24°-CW.PDF
KL-3677-BA24°-NW.PDF
3677.pdf
KL-367820W LED 2700K,3000K,4000K,6500K BA:12°,24°,36°, Clear PolycarbonateØ64 x 135 x 200mmKL-3678-BA12°-WW.IES
KL-3678-BA24°-NW.IES
KL-3678-BA12°-WW.PDF
KL-3678-BA24°-NW.PDF
3678.pdf
KL-367930W LED 2700K,3000K,4000K,6500K BA:12°,24°,36°, Clear PolycarbonateØ78 x 143 x 236mmKL-3679-BA24°-WW.IES
KL-3679-BA12°-NW.IES
KL-3679-BA24°-WW.PDF
KL-3679-BA12°-NW.PDF
3679.pdf
