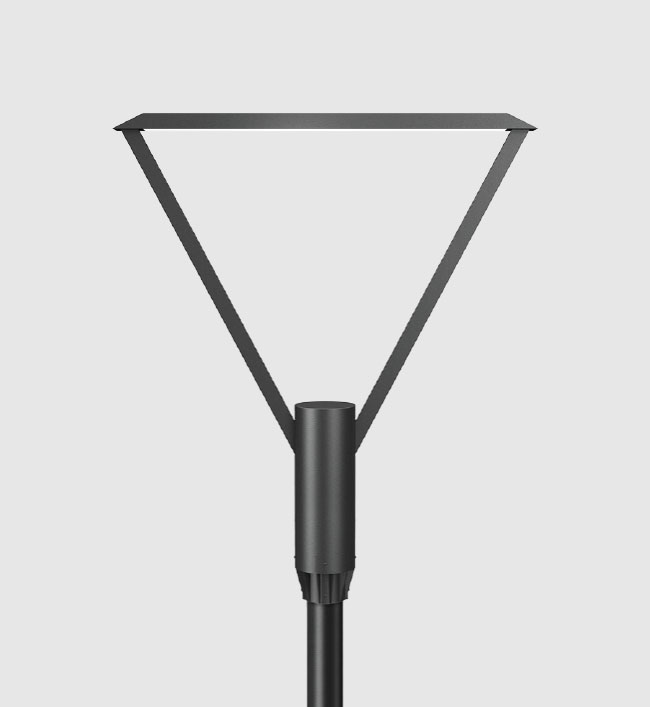

Stencil
An sleek and efficient lantern with translucent diffuser provide a unique, comfortable light choice with glare free light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• Luminaire made of hallow circular tube integrated with supporting arms made of MS hotdip galvanized.
• The lamp compartment enclosed inside MS hotdip galvanized steel and covered with translucent acrylic diffuser
• Die cast aluminium mounting base.
• Luminaire integrated with 40W LED.
• Suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5383-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

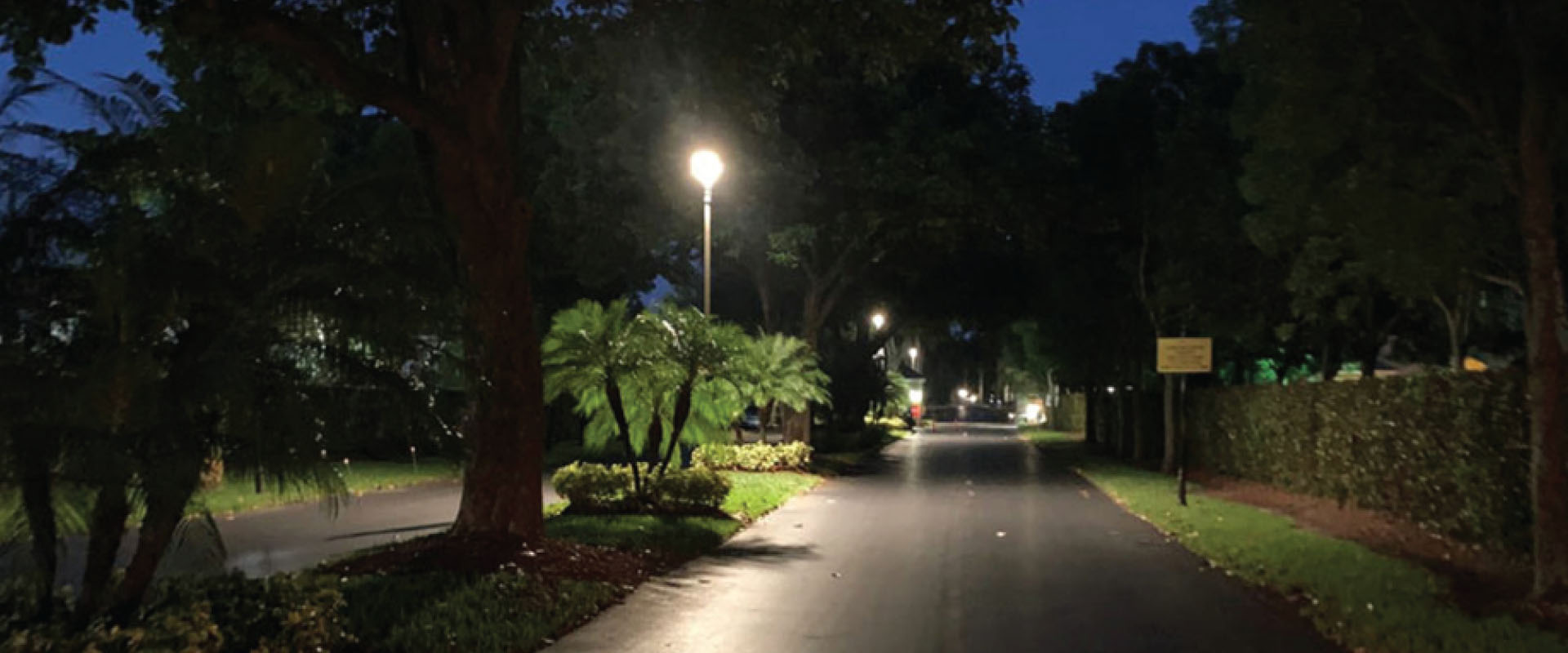

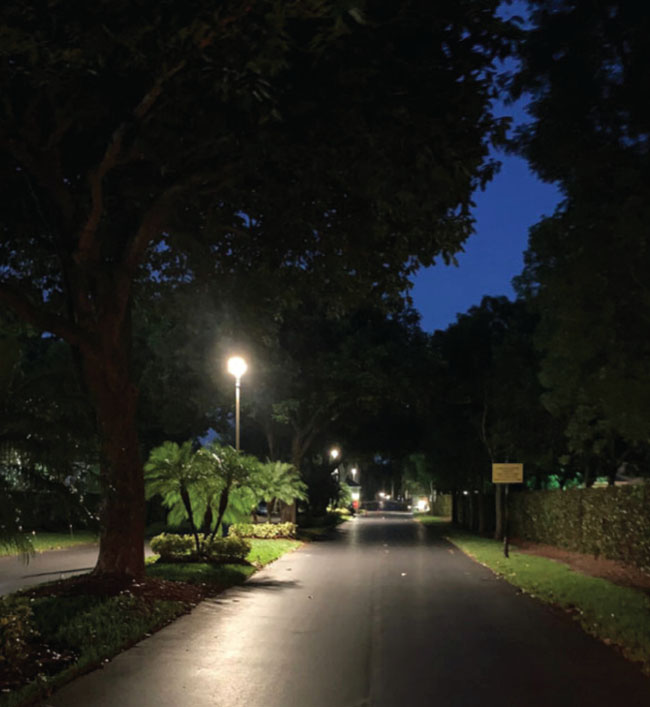

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-538340W LED WW,NW,CW BA:120°, Translucent Acrylic692 x Ø107 x 770mmD2KL-5383.IESKL-5383.PDF5383.pdf
KL-5383.txt
