Tagalog

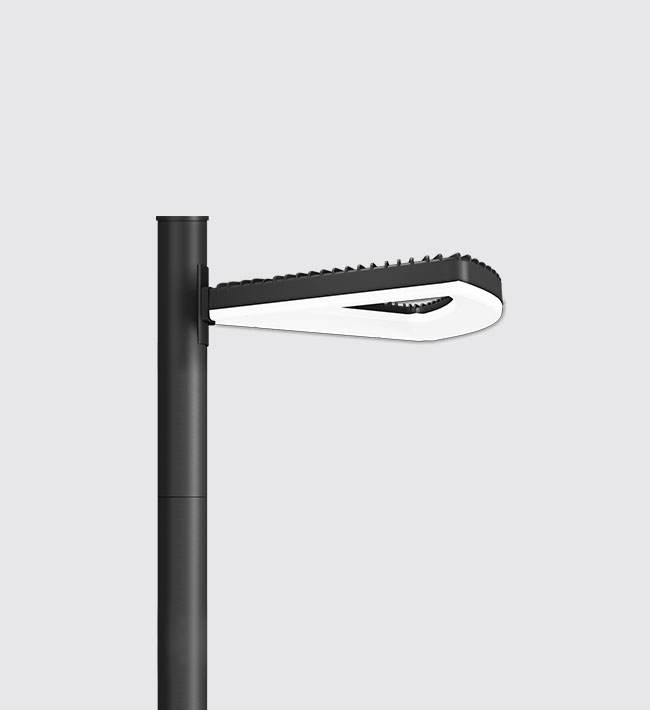

An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice with glare free light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire totally weather proof with housing made of die cast aluminium.
• Diffuser placed into the provision formed on the periphery of the bottom cover.
• Non yellowing UV stabilized translucent polycarbonate diffuser.
• Luminaire integrated with 50W LED.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5368-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

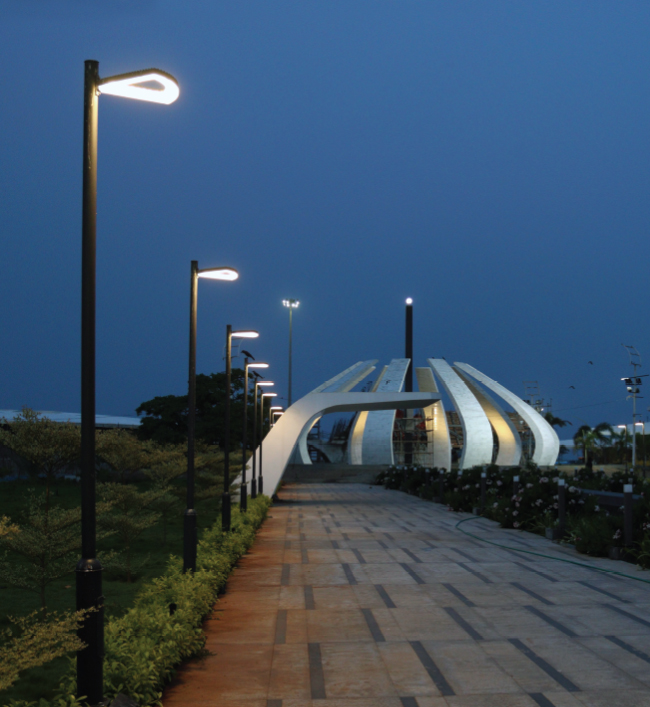

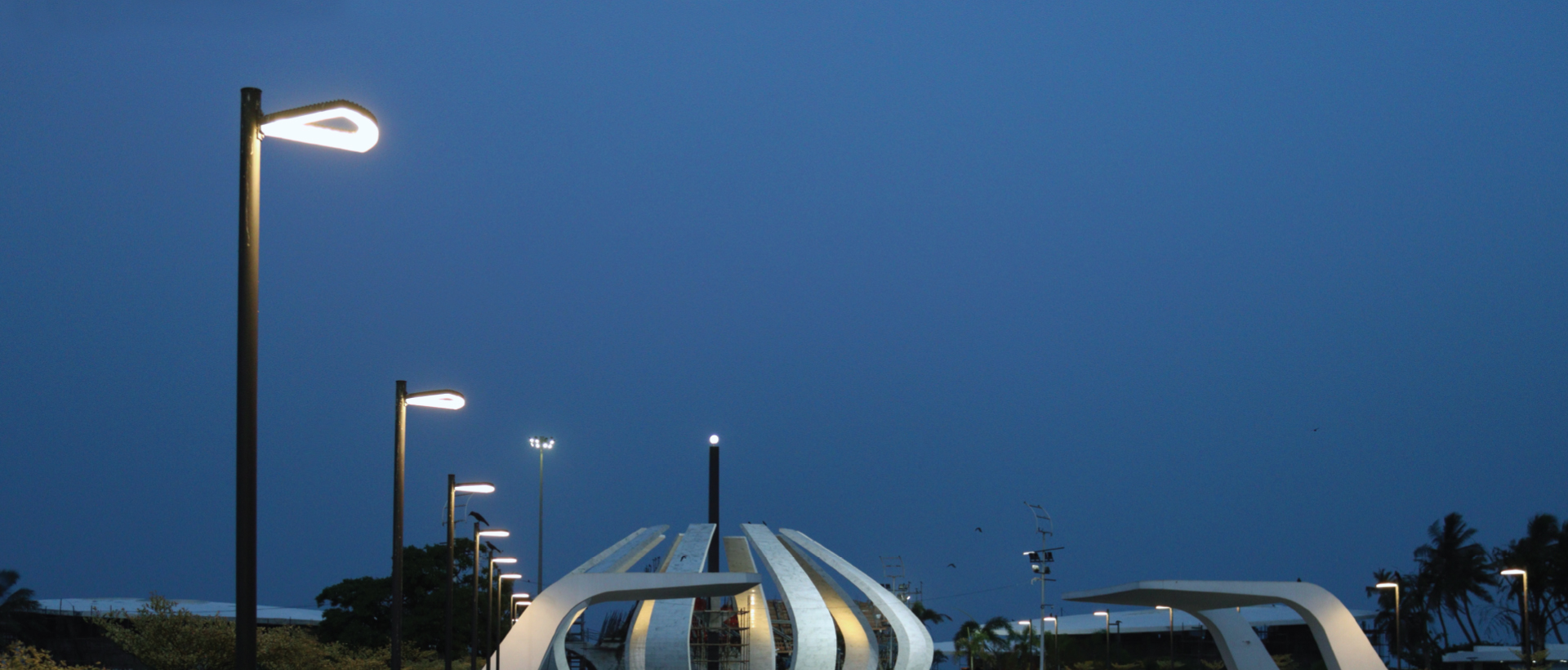

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated Grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

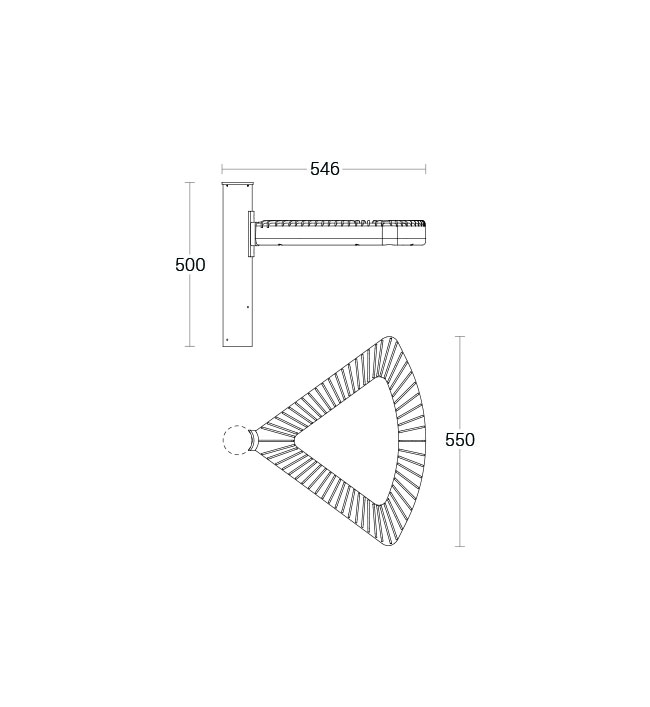

KL-536850W LED WW,CW,NW BA:120°, Translucent Polycarbonate465 x 550 x 120mmD3KL-5368.IESKL-5368.PDF5368.pdf
