Magnum

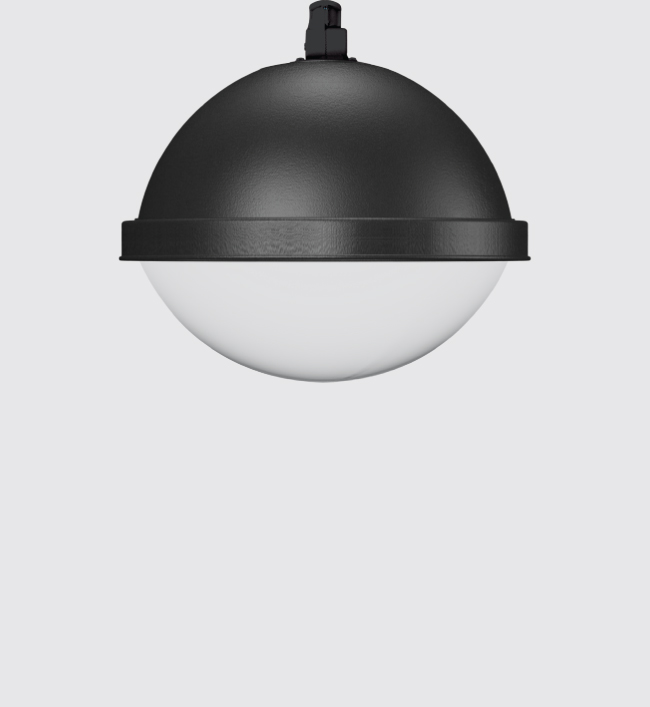

Magnum Street Light is a special purpose outdoor luminaire, integral model, totally weather proof aesthetically contoured. Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment.

Product Description
• Luminaire body made of die-cast aluminium.
• Bowl shaped clear polycarbonate diffuser.
• Luminaire integrated with 200W LED.
• Suitable for mounting (adjustable from 0°-90° for upside-down and horizontal installation) on to 60-75mm dia tube.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4621-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintanance.
• Environmental friendly.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.

Area of Application

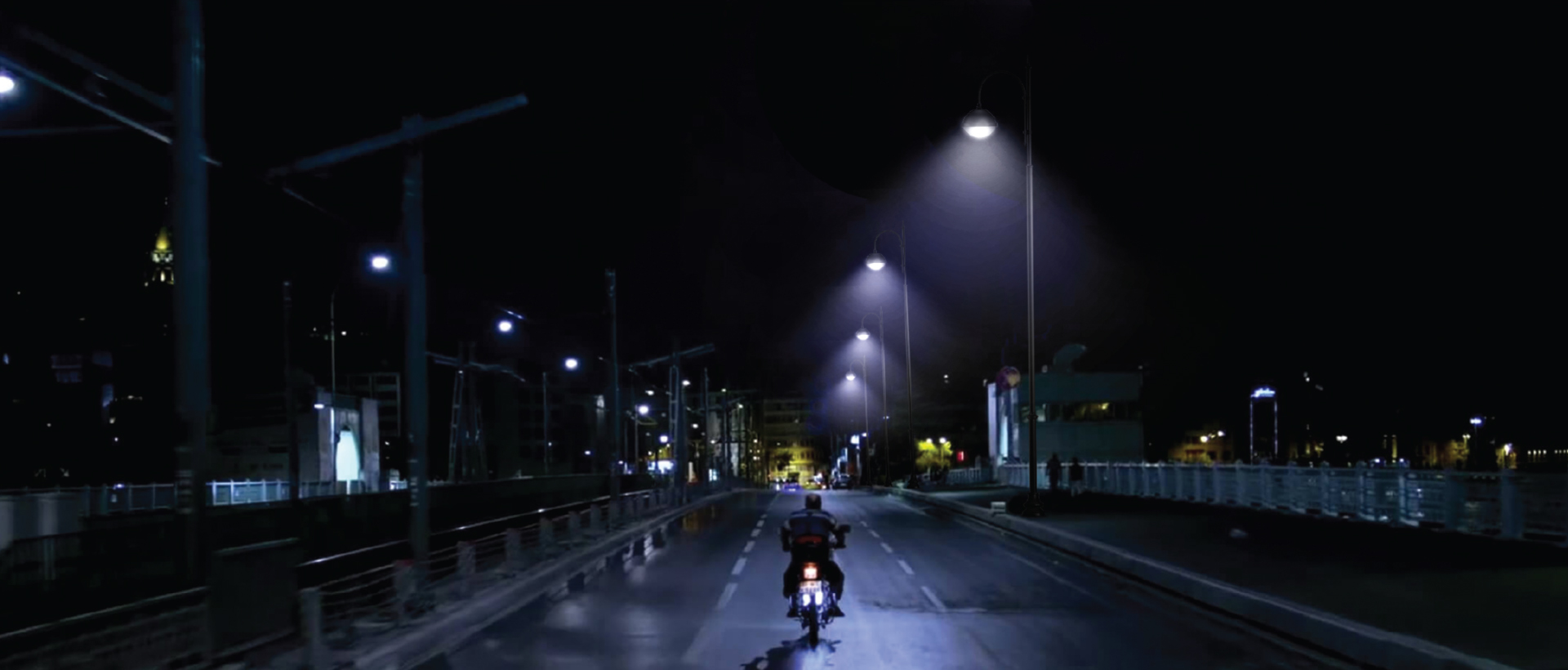

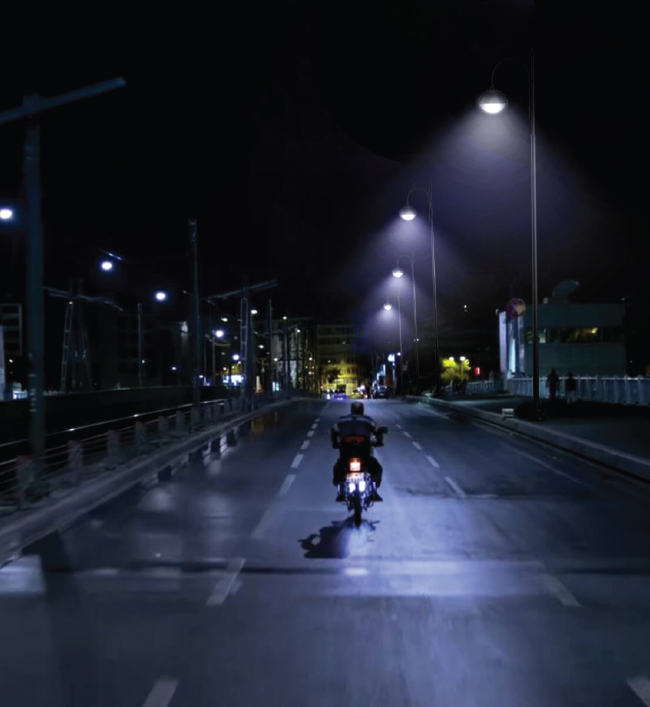

Street Lighting, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

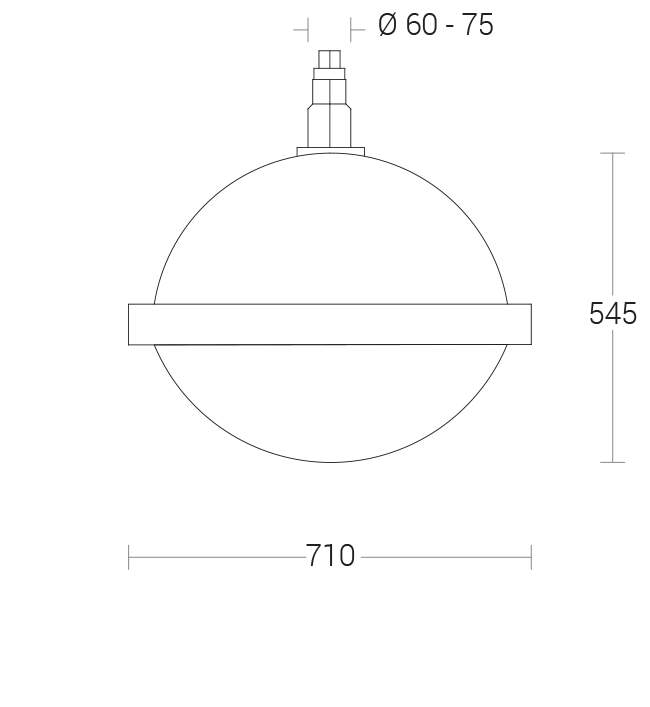

KL-4621200W LED WW,CW,NW BA:Type IV, Clear PolycarbonateØ710 x 545mm4621.pdf
