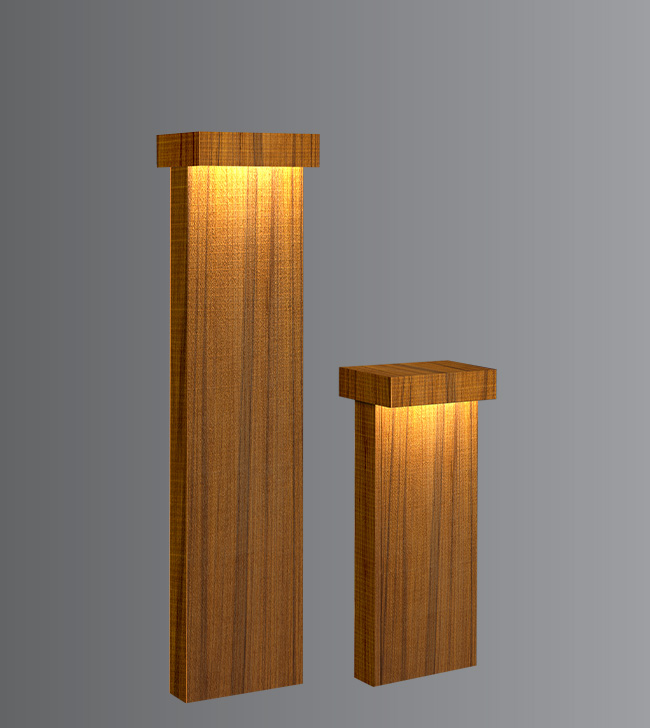

Duo Jado Wood Bollard
A decorative LED bollards designed with double sided light output to provide soft,flat beam light distribution.
These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture.
Clean Lines and pure form are the underlying elements in this series of LED bollards.

Product Description
• Luminaire body made of rectangular extruded aluminium tube (grade 6063)with die cast aluminium components and non corrosive SS fasteners.
• For optimum coordination with lighting situation,these luminaries can be supplied in three different heights.
• Non yellowing UV stabilized clear acrylic diffuser.
• Silicone gasket.
• Mounting plate die cast aluminium double powder coat with an anchorage unit.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7673-CCT (Colour Temperature).
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

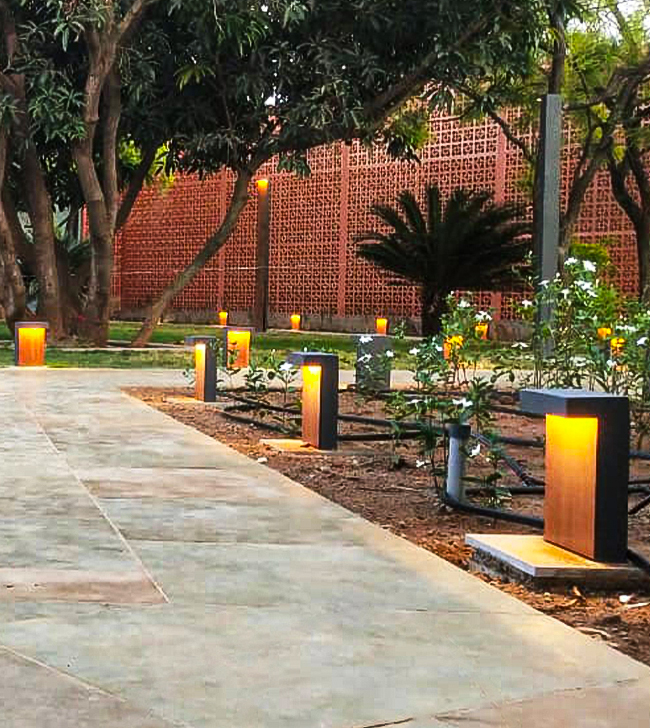

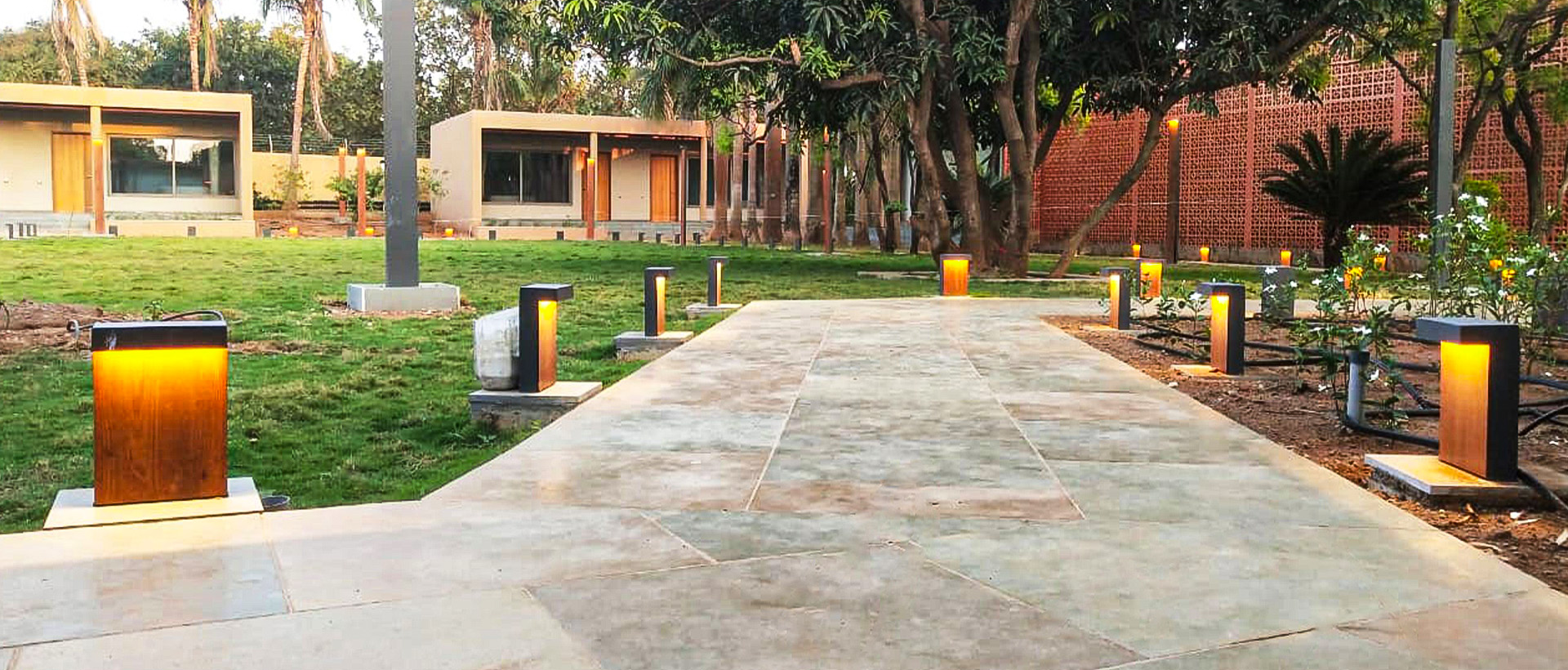

Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and landscape architecture.

Available Finish
Bamboo / Teak / Bronze Gold.

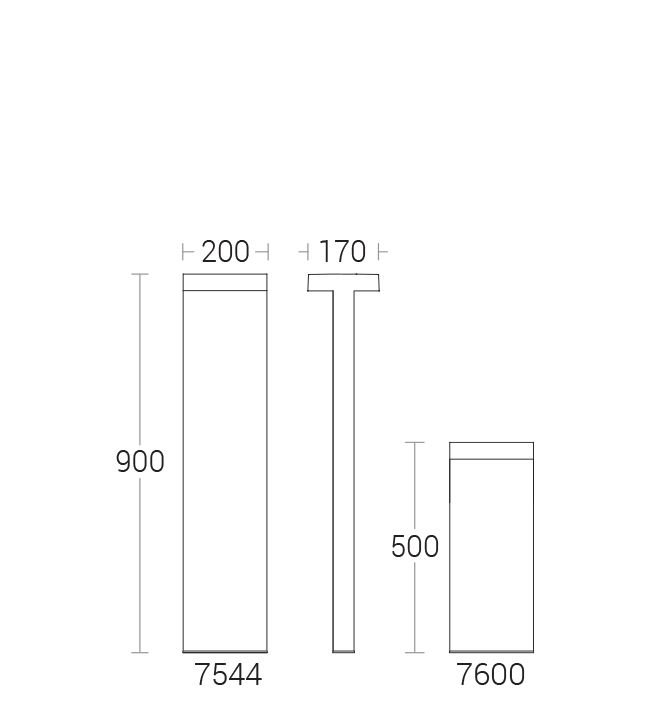

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-75442 x 12W LED 2700K,4000K,5700K, Clear Acrylic200 x 170 x 1000mmM24
Detailed Foundation Drawing
7544.pdf
KL-76732 x 12W LED 2700K,4000K,5700K, Clear Acrylic200 x 170 x 300mmM24
Detailed Foundation Drawing
7673.pdf
KL-76002 x 12W LED 2700K,4000K,5700K, Clear Acrylic200 x 170 x 600mmM24
Detailed Foundation Drawing
7600.pdf
