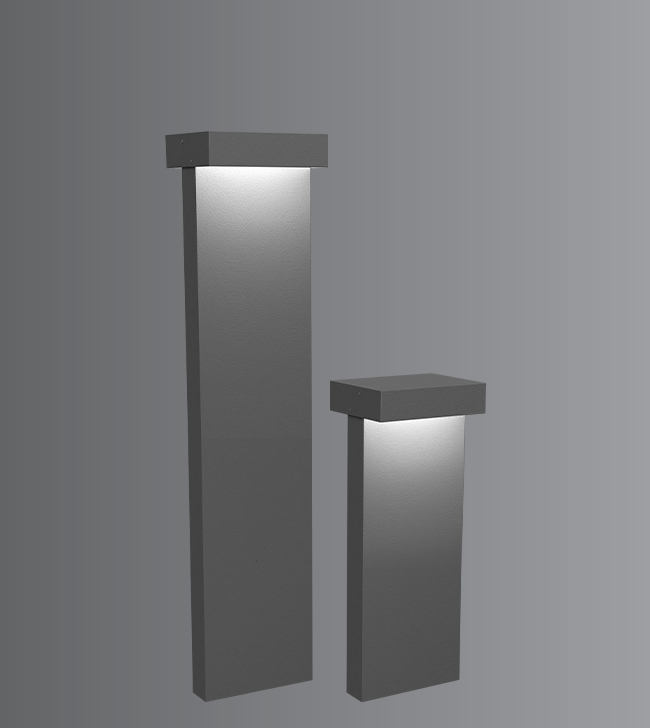

Duo Jado Bollard
A decorative LED bollards designed with single/double sided light output to provide soft, flat beam light distribution. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture. Clean Lines and pure form are the underlying elements in this series of LED bollards.

Product Description
• Luminaire made of extruded aluminium tube with die cast aluminium alloy LED housing and non corrosive SS fasteners.
• For optimum illumination, these luminaires can be supplied in three different heights.
• UV stabilized clear acrylic diffuser.
• Silicone gasket
• Mounting plate Die cast aluminium double powder coat with an anchorage unit.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-7204-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

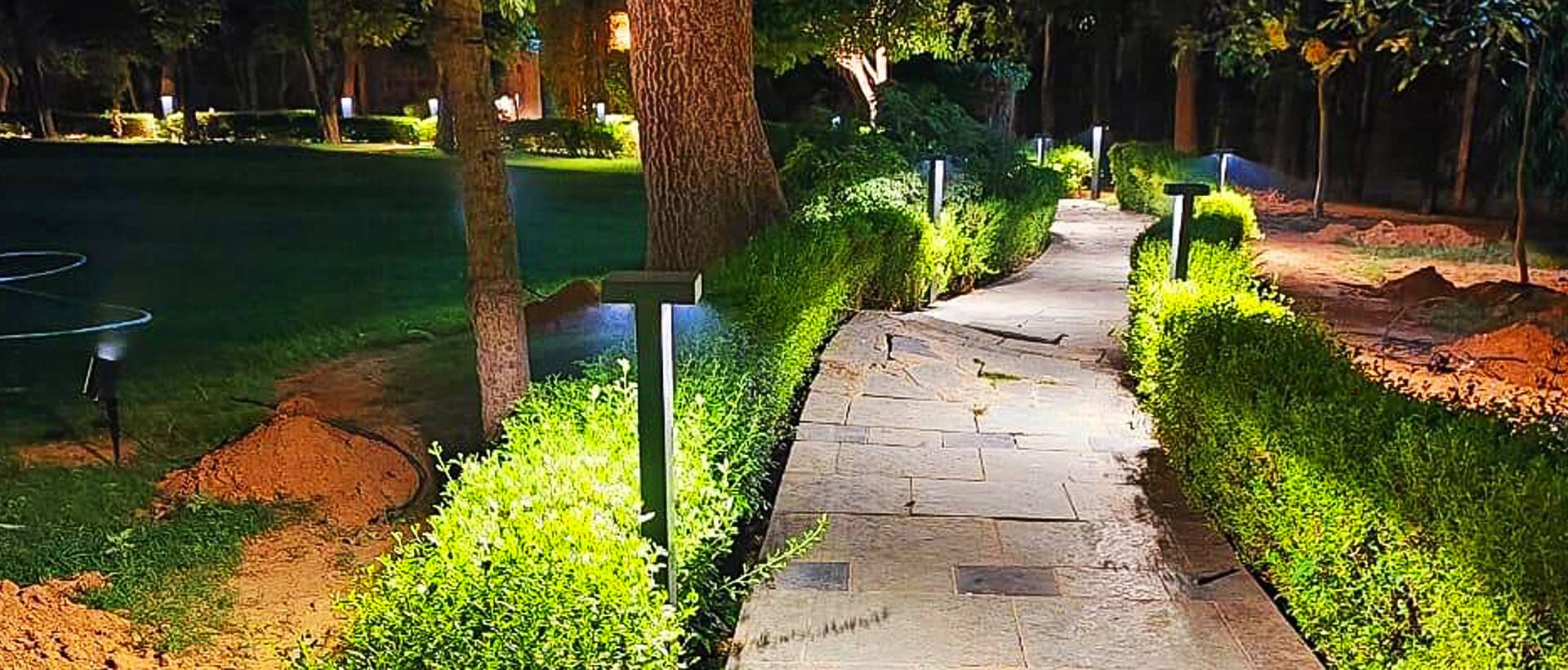

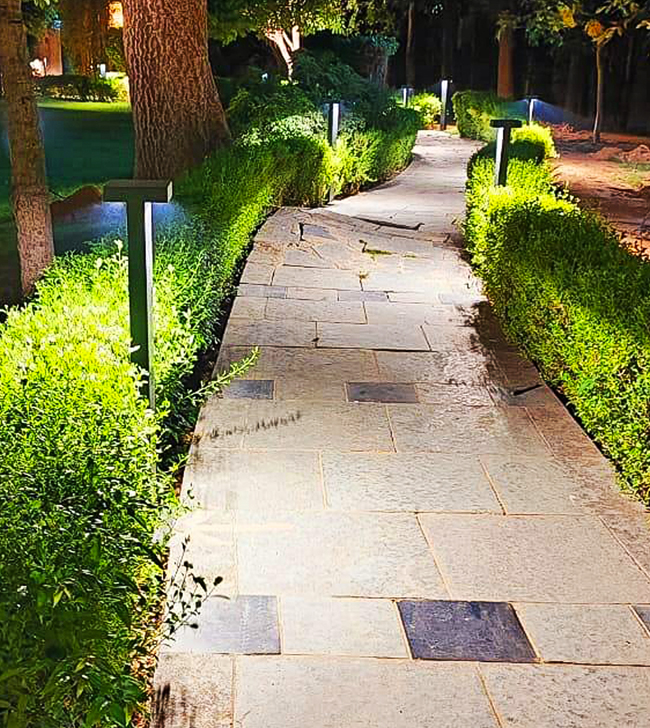

Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey (RAL : 7016)
• Jet black (RAL : 9005)

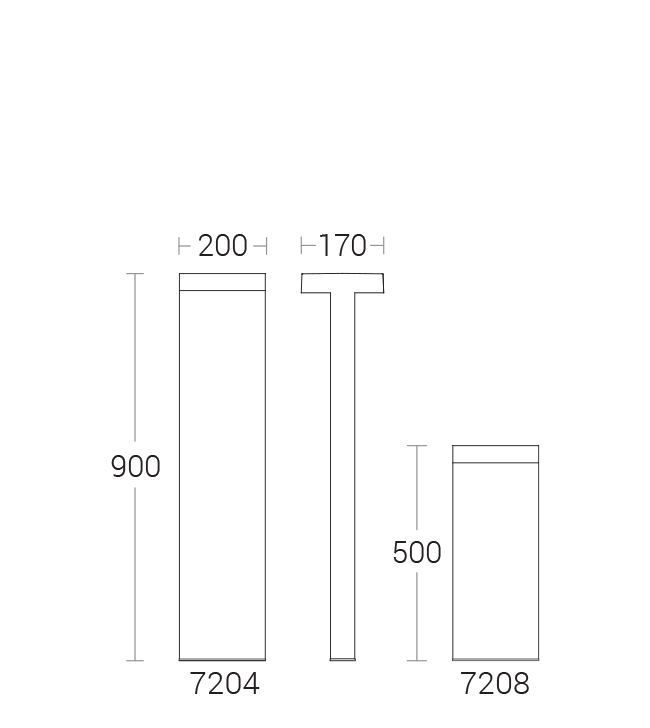

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-72042 x 12W LED WW,NW,CW, Clear Acrylic200 x 170 x 1000mmM24
Detailed Foundation Drawing
7204.pdf
KL-72122 x 12W LED WW,NW,CW, Clear Acrylic200 x 170 x 300mmM24
Detailed Foundation Drawing
7212.pdf
KL-72082 x 12W LED WW,NW,CW, Clear Acrylic200 x 170 x 600mmM24
Detailed Foundation Drawing
7208.pdf
