Line 'n' Dot Down Light
Line ‘n’ Dot recess mounted range of LED ceiling lights are a perfect fit for all indoor lighting applications. The die cast aluminium housing is ideal for better thermal management. High lumen output / Different wattage & CCT options available make this versatile for superior glare free indoor lighting solutions.

Product Description
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High PF constant current LED driver with surge and thermal protection.
• Ideal for super low depth space constraint false ceiling.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-7440-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Visual comfort
• Linear shape
• Compact dimensions
• Minimalist design
• Anti-glare
• Quick & simple installation.
• High performance
• Sustainable LED technology

Area of Application

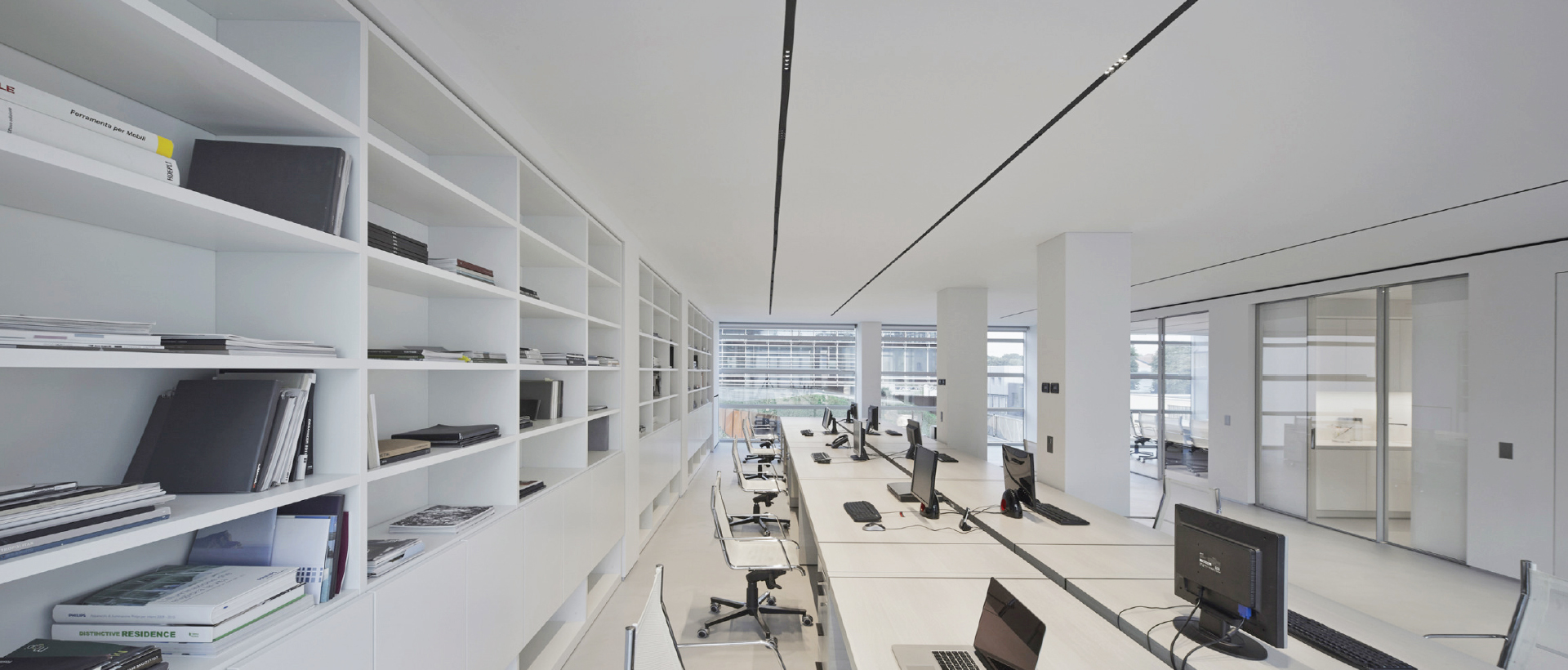

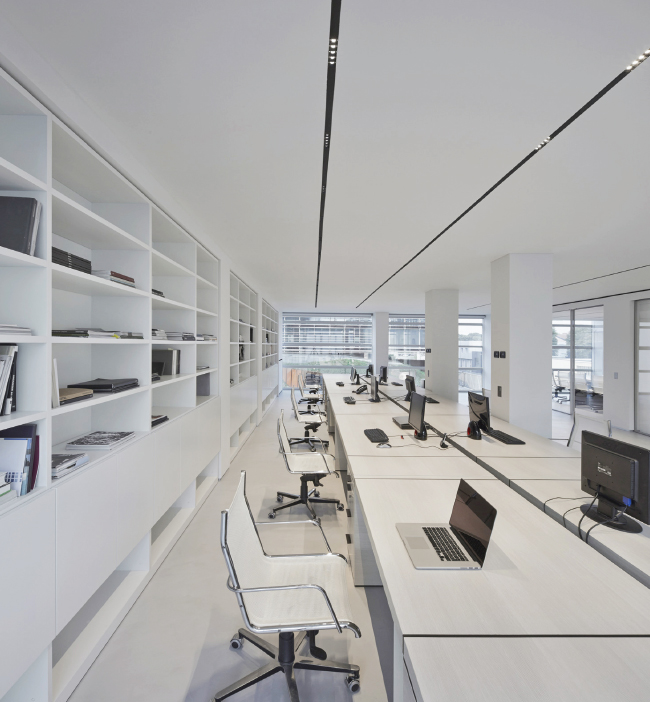

Shopping malls, Corporate Office, Airports, Conference Center, Clubs, Villas, Restaurants, etc.

Available Finish
White epoxy polyester powder coating.

Downloads
Catalogue Page

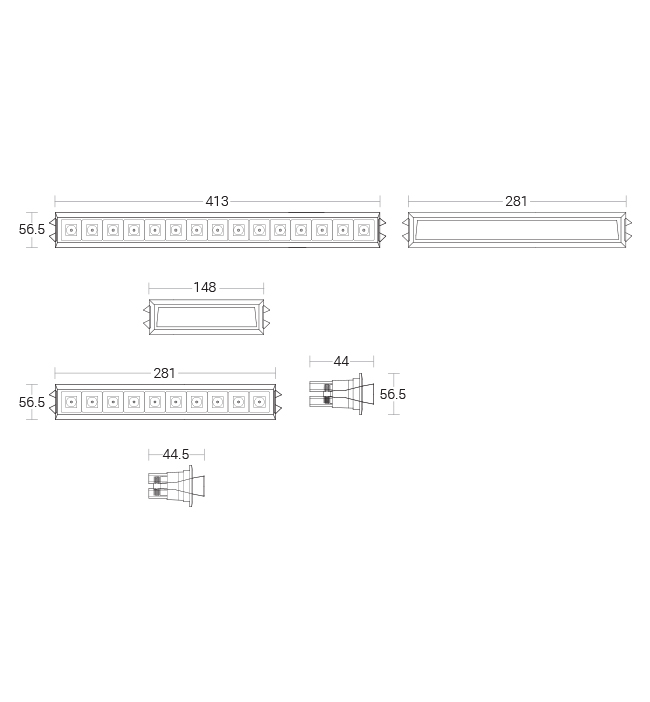

IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-74505 x 2W LED WW,NW,CWC.O.D : 137 x 35mmKL-7450-BA--WW.IES
KL-7450-BA--CW.IES
KL-7450-BA--WW.PDF
KL-7450-BA--CW.PDF
KL-7450.txt
KL-745110 x 2W LED WW,NW,CWC.O.D : 271 x 35mmKL-7451.IESKL-7451.PDFKL-7451.txt
KL-744710 x 2W LED WW,NW,CW BA:12°,34°,48°C.O.D : 271 x 35mmKL-7447-BA34°-WW.IES
KL-7447-BA48°-WW.IES
KL-7447-BA34°-WW.PDF
KL-7447-BA48°-WW.PDF
KL-7447.txt
KL-744915 x 2W LED WW,NW,CW BA:12°,34°,48°C.O.D : 403 x 35mmKL-7449.IESKL-7449.PDFKL-7449.txt
