Wall Cylin Mini

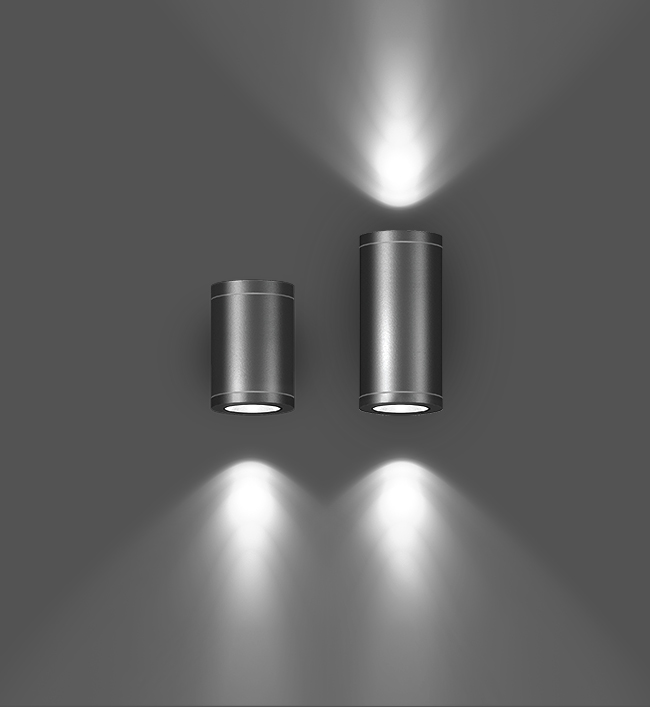

Facade luminaires with Hybrid optics, downwards for ambient lighting and orientation, upwards to accentuate architectural elements, Precise lighting for where it is required. Aesthetically shaped wall mounted luminaire with fully shielded light source for striking light effects.

Product Description
• Luminaire made of die-cast aluminium, aluminium & SS fasteners.
• Clear safety tempered glass.
• Silicone gasket
• Hybrid optics with lens & reflector combination for higher efficiency, lower optical losses with optimum glare suppression.
• Die Cast aluminium base for easy installation onto the wall / column.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-7897-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K (CW on request)

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation with low maintenance.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

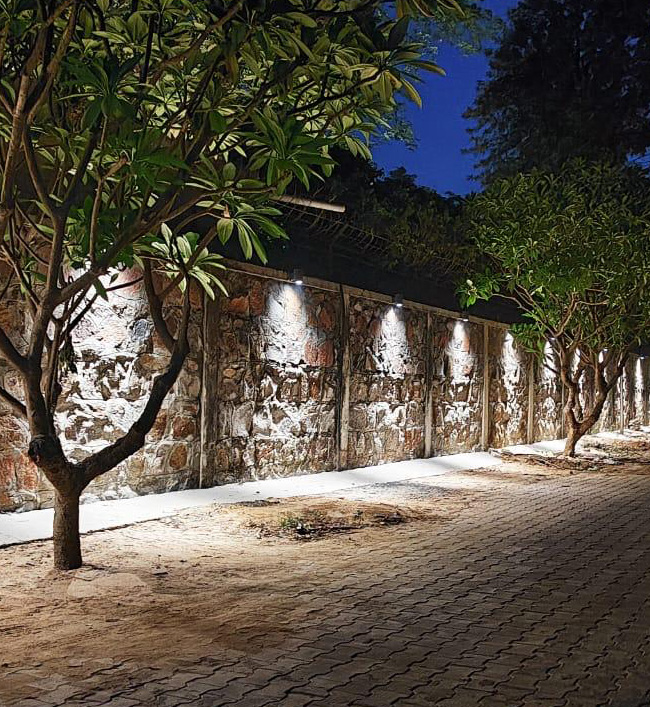

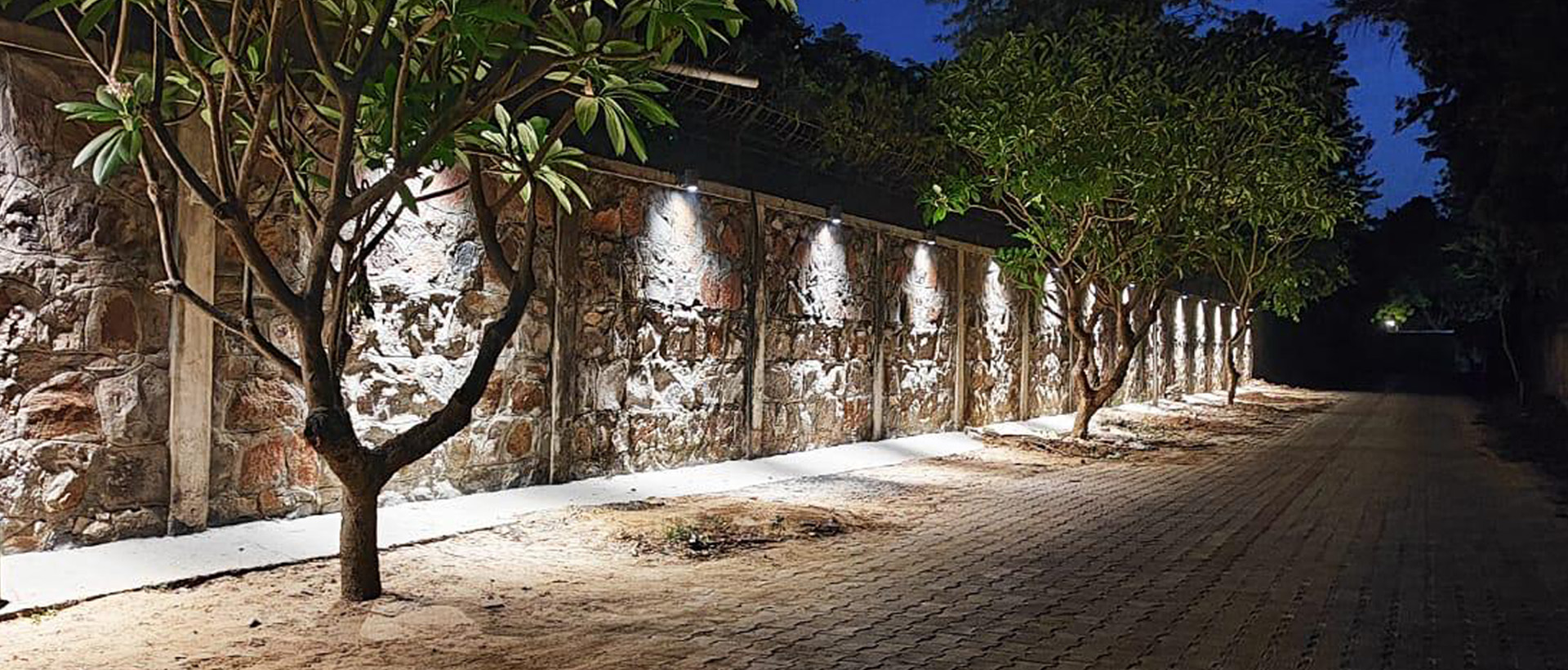

Residential, Building facade, Commercial centres, Passages, Pathways, Sculptures and Structures.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey (RAL : 7016)
• Jet black (RAL : 9005)

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

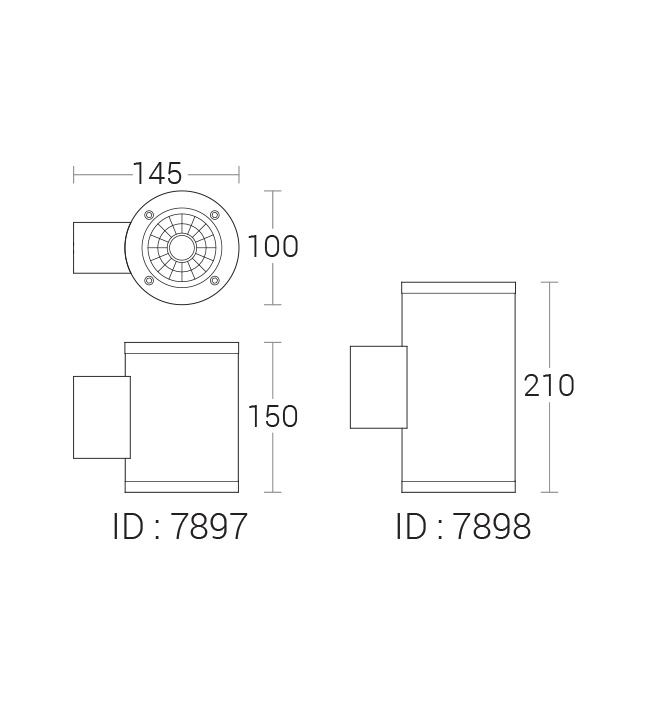

KL-78976W LED WW,NW BA:25°,40°,15°, Clear tempered glass145 x 100 x 160mmKL-7897-BA25°-WW.IES
KL-7897-BA25°-NW.IES
KL-7897-BA25°-WW.PDF
KL-7897-BA25°-NW.PDF
7897.pdf
KL-78982 x 6W LED WW,NW BA:25°,40°,15°, Clear tempered glass145 x 100 x 210mm7898.pdf
