Cubus

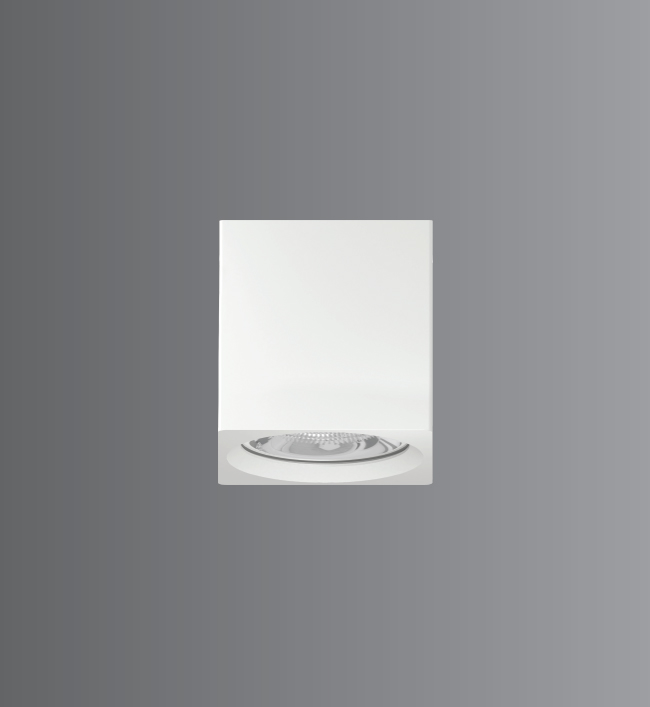

Cubus surfaced mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The die cast aluminium housing is ideal for better thermal management. Different wattage options make this luminaire versatile for indoor lighting solutions.

Product Description
• LED ceiling surface mounted - Indoor luminaire with wide beam light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• Pressure die-cast aluminium inner ring with high purity aluminium reflector for uniform light distribution.
• Clear Polycarbonate diffuser.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-7348- CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6500K.

Product Benefits
• Attractive high quality housing and optics.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

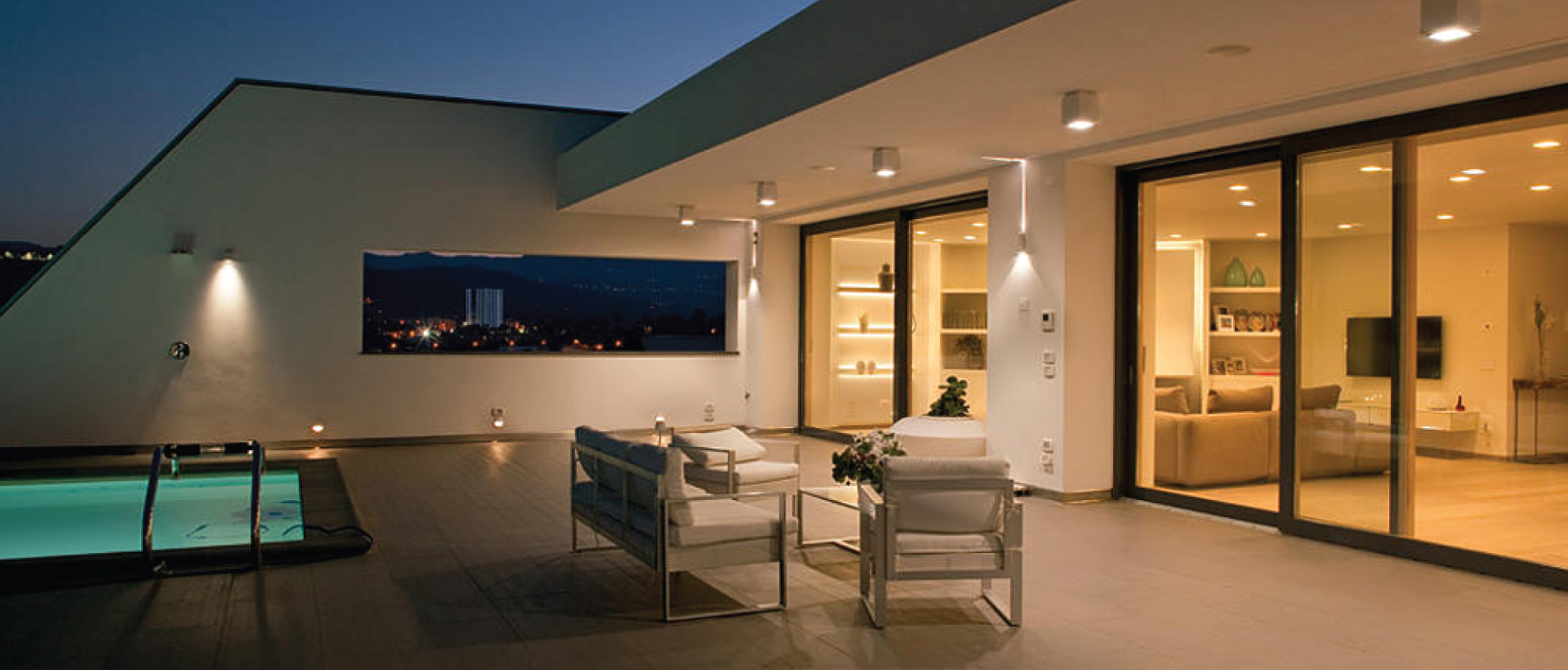

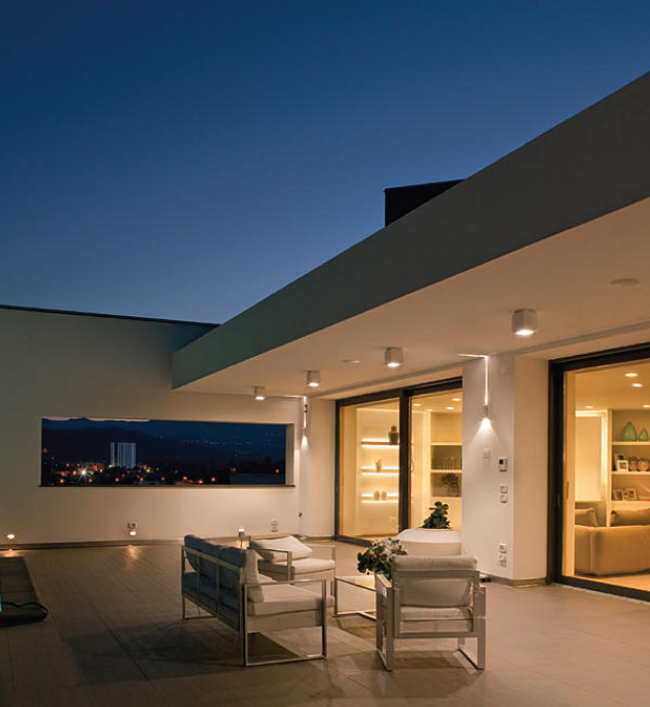

Area of Application
Lobbies & Foyers, Retail Sector, Residential, Receptions, Internal passages, Commercial & Business Centers, etc.

Available Finish
White epoxy polyester powder coating.

Downloads
Catalogue Page

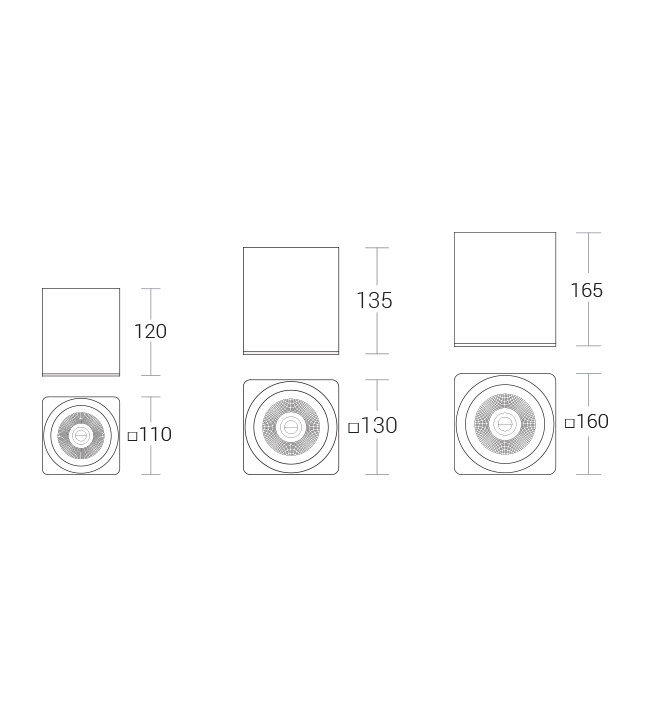

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-734925W LED WW,NW,CW BA:45°, Clear PolycarbonateSq. 130 x 135mm7349.pdf
KL-734815W LED WW,NW,CW BA:45°, Clear PolycarbonateSq.110 x 120mm7348.pdf
KL-735035W LED WW,NW,CW BA:50°, Clear PolycarbonateSq.160 x 165mm7350.pdf
