Ray
Innovative Design options to provide Visual integration with the environment. High Brightness, LED Light source do not pose any environment risks. Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World. Long life span with very low maintenance.

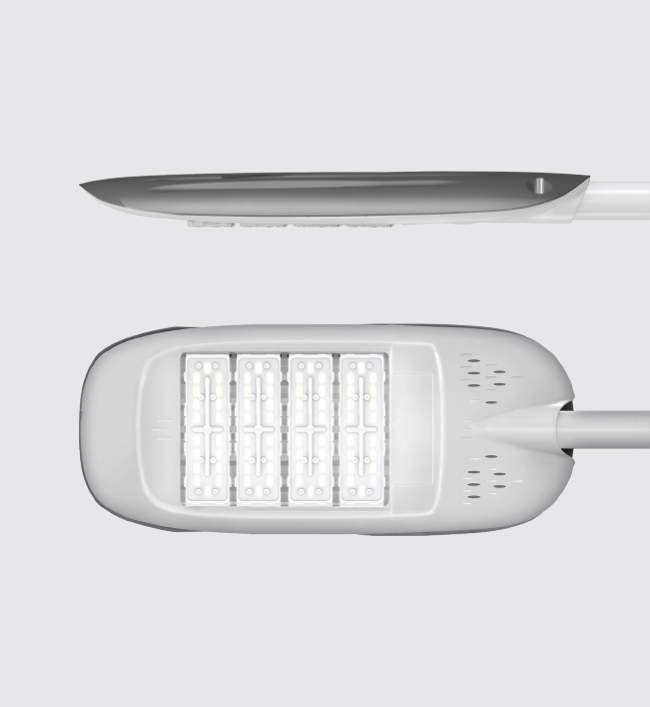

Product Description
• Aluminium alloy body and top cover, featuring high strength and anti corrosion.
• LED modules are fixed to frame.
• Top cover retained by screw for easy maintenance.
• Clear polycarbonate optical cover.
• Suitable for lateral (side entry) mounting on 60mm dia pipe.
• Double-coupling IP68 protection for module, highest waterproof level.
• 6KV Surge Protection.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >70
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4175-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Modular pluggable technology, easy-tool onsite maintenance.
• Functionally versatile, strong and stable with sound engineering.
• Corrosion resistant and maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

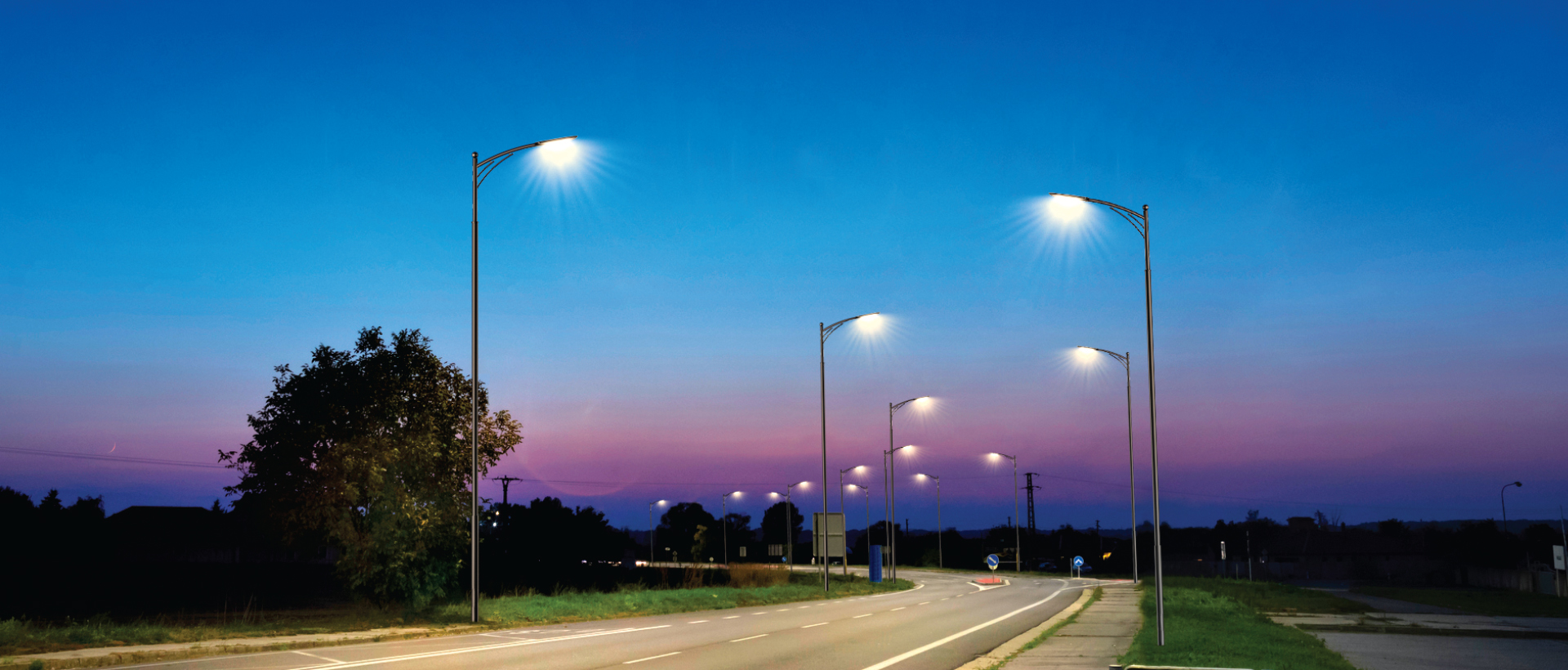

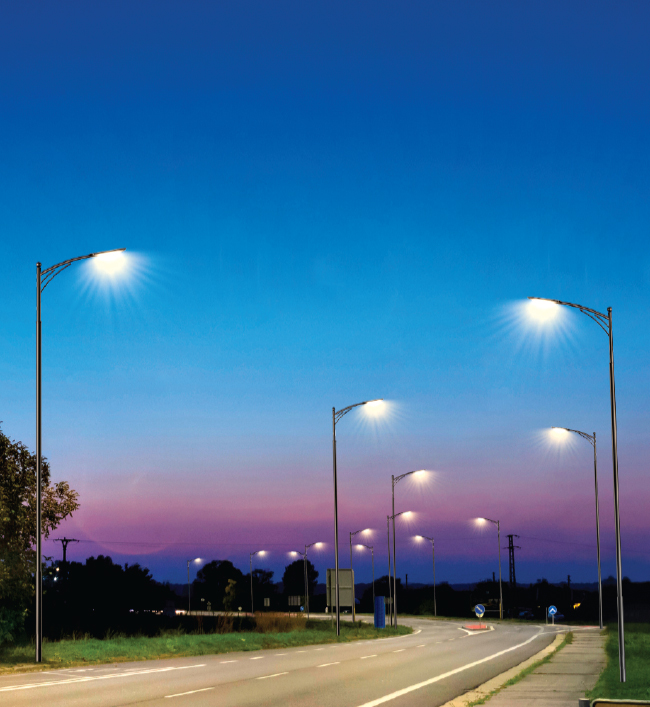

Street Lighting, Park Lighting, Expressways, Highways, Courtyards.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

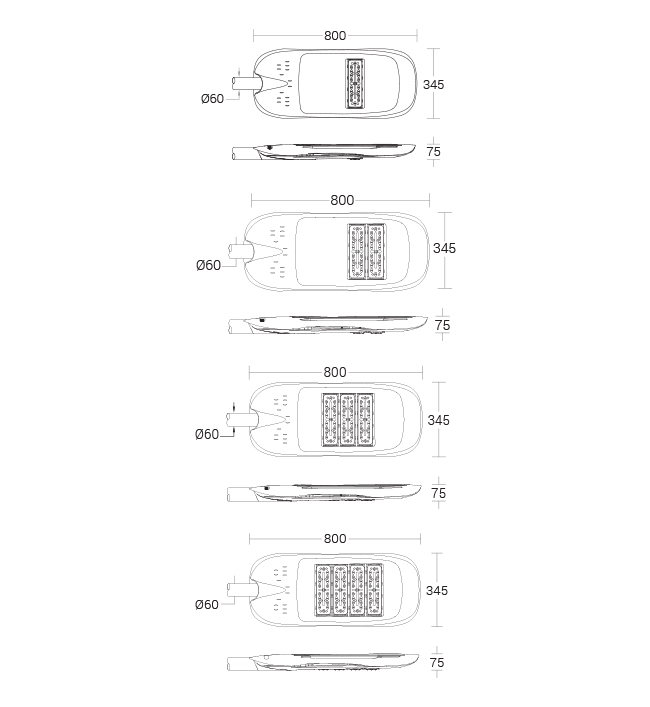

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-41632 x 60W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover800 x 345 x 75mmD24163.pdf
KL-41643 x 60W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover800 x 345 x 75mmD24164.pdf
KL-41744 x 60W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover800 x 345 x 75mmD24174.pdf
KL-41751 x 60W LED WW,NW,CW BA:Type III, Clear Polycarbonate Optical Cover800 x 345 x 75mmD24175.pdf
