Beacon Metro Mega
An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice with symmetrical and glare free light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire comprises of die-cast aluminium flat top cover serving as a canopy for the fitting and die cast aluminium base.
• Spun aluminium reflector system encased in translucent UV protected polycarbonate diffuser for rotationally symmetrical distribution of light.
• Luminaire integrated with 30W LED.
• Luminaires suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5477-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Functionality
• Environmental Friendly
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

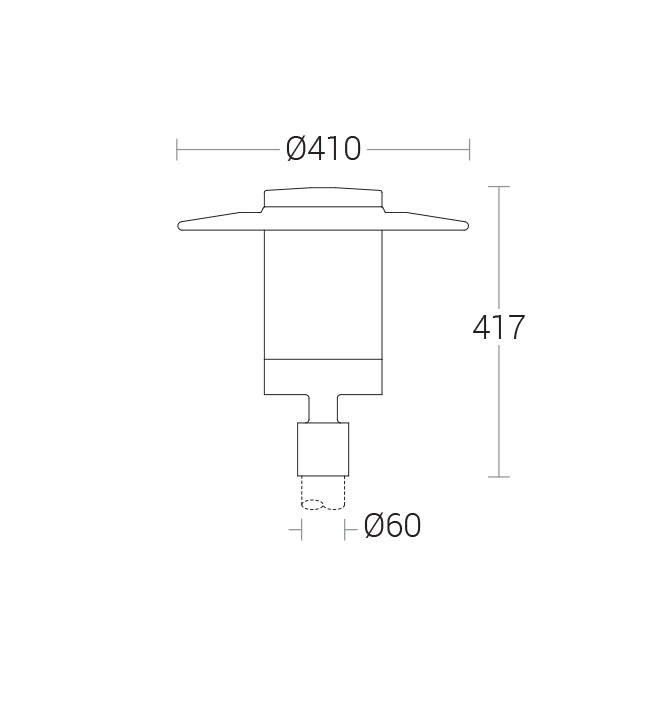

KL-547730W LED 2700K,3000K,4000K,5700K, Translucent PolycarbonateØ410 x 417mmD2
KL-5477.IESKL-5477.PDF5477.pdf
