Deep

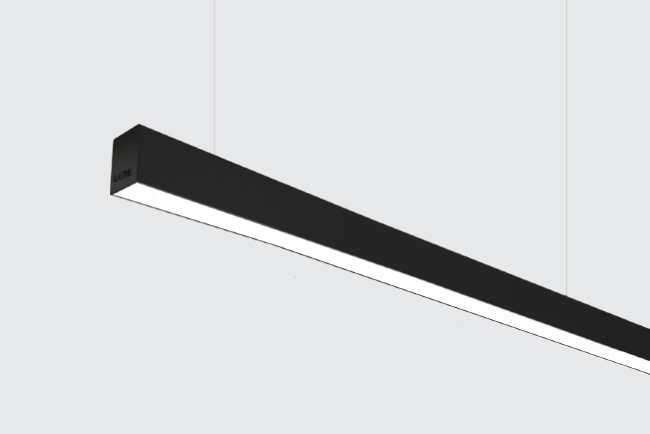

Linear pendant lighting designed for continuous lighting systems. Unobstructed illumination offering coherent solutions suitable for any kind of space.
Our modern, slim profiles and stylish linear design offer excellent direct lighting, exceptional performance and versatility combined with visually comfortable and efficient light.

Product Description
• Luminaire body made of High-Grade aluminium with die-cast endcaps.
• UV stabilized Polycarbonate diffuser.
• High PF constant current LED driver with surge and thermal protection.

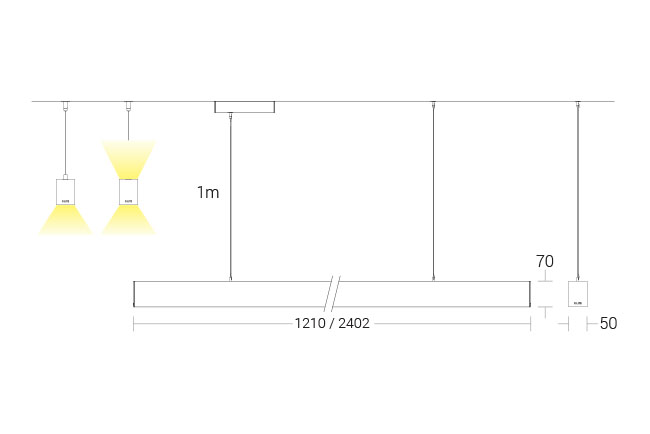

• Designed for mounting on ceiling with suspension kit (1 meter).
• Cable entries for through-wiring of mains supply cable.
• Beam angle 120°
• CRI (Ra) : >80 ( 90 CRI - On Request )
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3412-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Attractive high quailty housing and optics.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

Area of Application

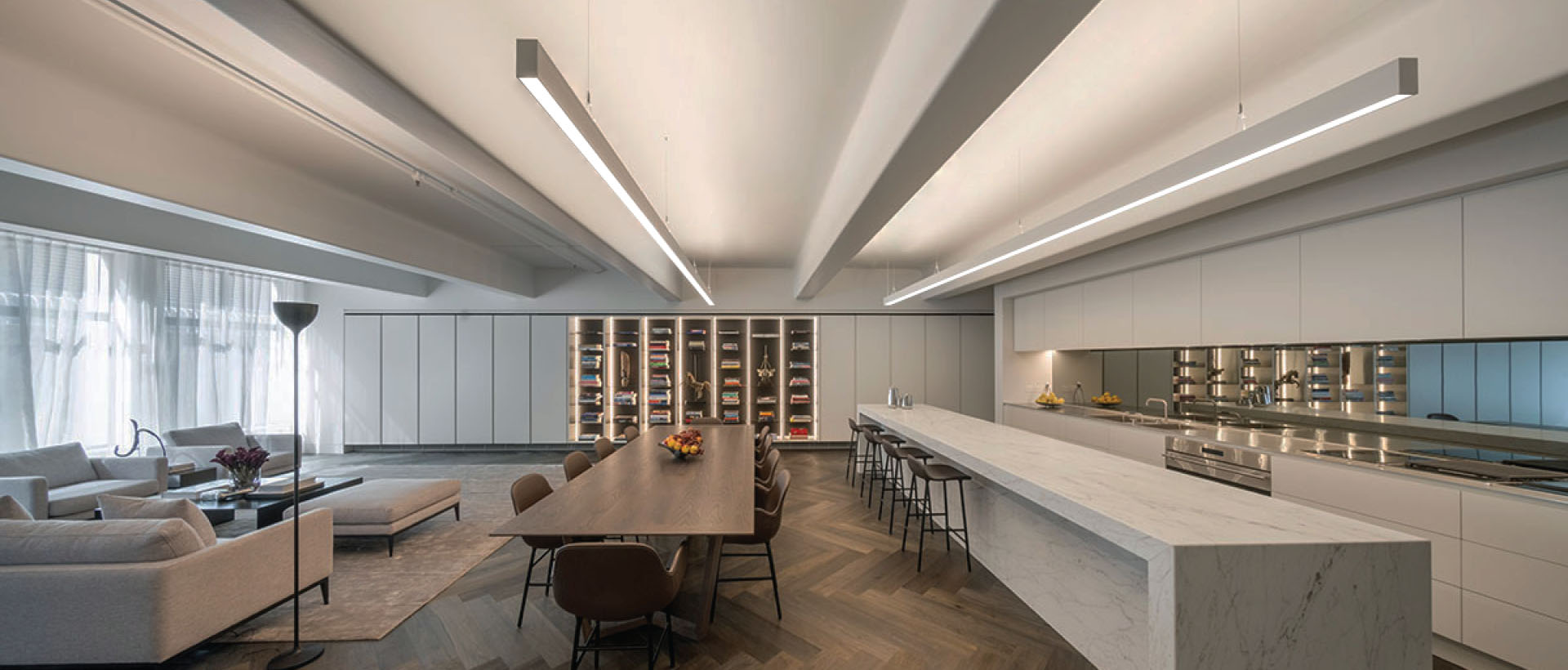

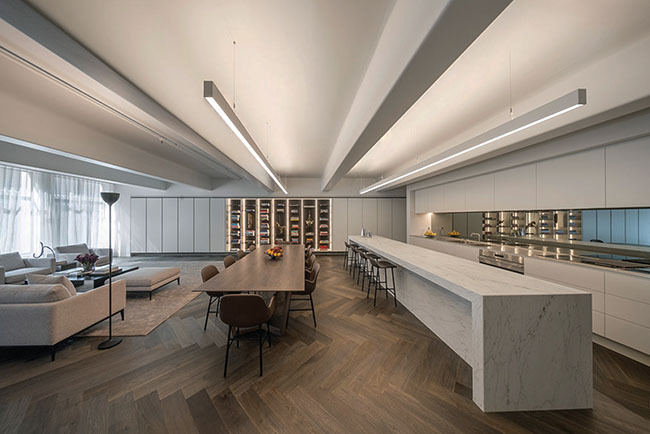

Corporate Offices, Malls, Restaurants, Receptions, Conference rooms, Museums, Retail outlets, Hotels and more.

Available Finish
Pure polyester powder coated
• White(RAL9016)
• Black(RAL9005)
• Grey(RAL 9006)

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-3536Upto 40W & 15W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Opal Matte & Prismatic1210 x 50 x 70mm3536.pdf
KL-3537Upto 80W & 30W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Opal Matte & Prismatic2402 x 50 x 70mm3537.pdf
KL-3412Upto 40W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Opal Matte1210 x 50 x 70mmKL-3412-BA120°-WW.IES
KL-3412-BA120°-CW.IES
KL-3412-BA120°-NW.IES
KL-3412-BA120°-WW.PDF
KL-3412-BA120°-CW.PDF
KL-3412-BA120°-NW.PDF
3412.pdf
KL-3412.txt
KL-3531Upto 80W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Opal Matte2402 x 50 x 70mm3531.pdf
KL-3532Upto 40W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Prismatic1210 x 50 x 70mm3532.pdf
KL-3533Upto 80W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Prismatic2402 x 50 x 70mm3533.pdf
KL-3534Upto 40W & 15W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Opal Matte1210 x 50 x 70mm3534.pdf
KL-3535Upto 80W & 30W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Opal Matte2402 x 50 x 70mm3535.pdf
