Navira Mini
“Navira Mini” pathway luminaire, is an innovative design options to provide visual integration with the environment. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Product offered asymmetrical light distribution.

Product Description
• Luminaire made of die cast aluminium with non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 30W LED.
• Die Cast aluminium base for easy installation onto the wall / pole.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4971-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Illuminating parks, Gardens, Private driveways, Commercial complex, Pathways in Residential buildings & office complex, Internal passages.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

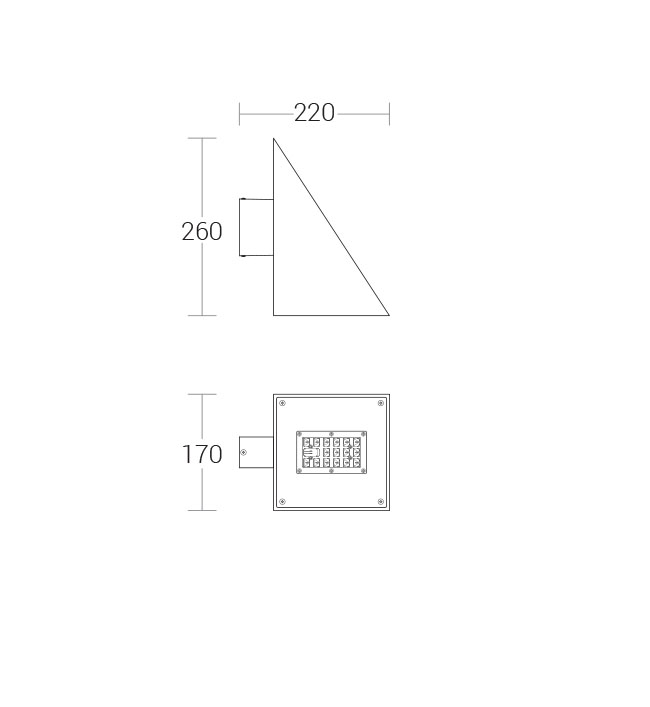

KL-497130W LED WW,CW,NW BA:Type II, Polycarbonate Optical Lens220 x 170 x 260mmKL-4971-BATYPEII-WW.IES
KL-4971-BATYPEII-CW.IES
KL-4971-BATYPEII-NW.IES
KL-4971-BATYPEII-WW.PDF
KL-4971-BATYPEII-CW.PDF
KL-4971-BATYPEII-NW.PDF
4971.pdf
KL-4971.txt
