Lucy
Lucy post top luminaire, is an innovative design options to provide visual integration with the environment. High Brightness, LED Light source do not pose any environment risks. Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.

Product Description
• Luminaire made of die-cast aluminium with non corrosive SS fasteners.
• Die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Clear polycarbonate diffuser.
• Luminaire integrated with 30W LED.
• Luminaires suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4850-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Functionality
• Environmental Friendly
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

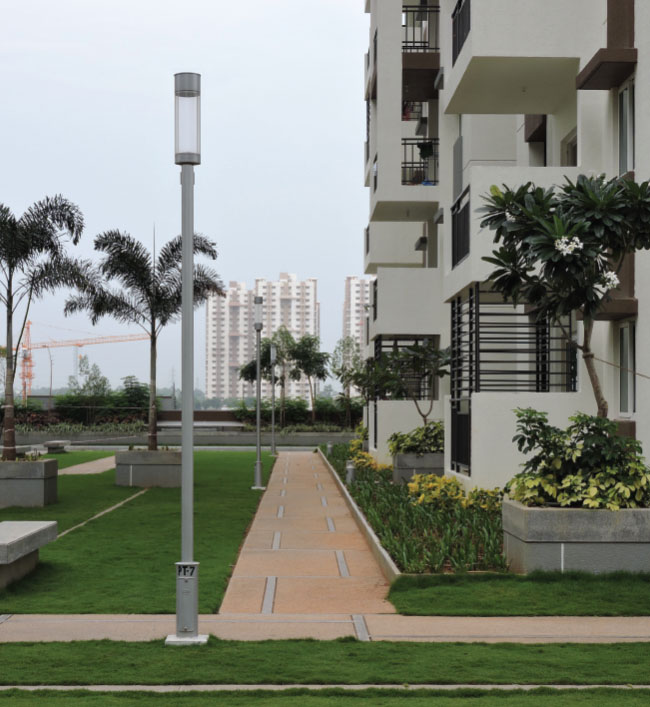

Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

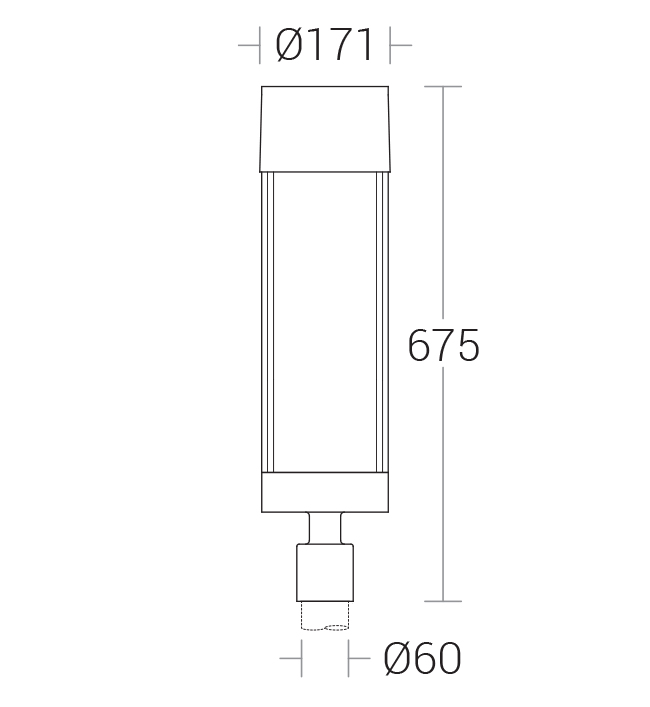

KL-485030W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateØ171 x 675mmD2
KL-4850-BA120°-WW.IES
KL-4850-BA120°-CW.IES
KL-4850-BA120°-NW.IES
KL-4850-BA120°-WW.PDF
KL-4850-BA120°-CW.PDF
KL-4850-BA120°-NW.PDF
4850.pdf
KL-549350W LED 2700K,3000K,4000K,5700K, Clear polycarbonateØ171 x 675mmD2
5493.pdf
