Ani

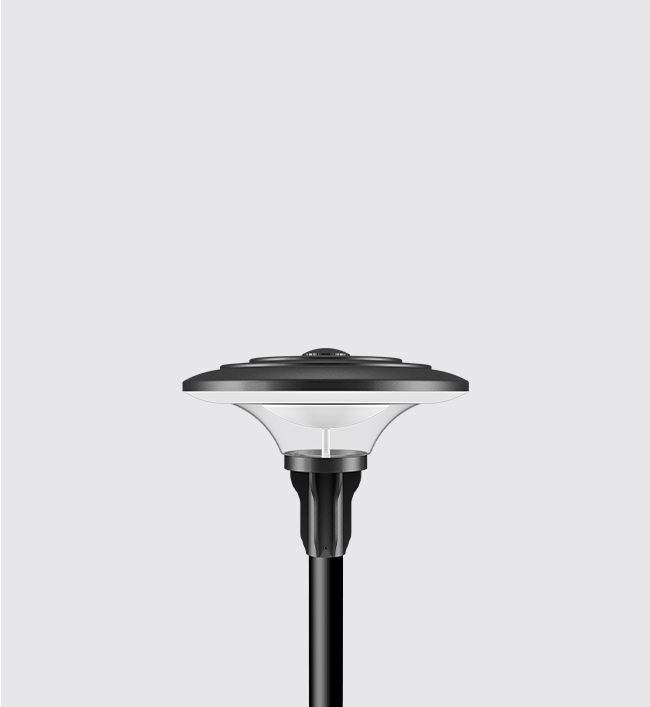

A modern heritage post top luminaire upgraded with high performance light engines. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation. Designed for highest efficiency in terms of more lumens at reduced wattages.

Product Description
• The luminaire comprises of spun aluminium top cover serving as a canopy for the fitting.
• A combination of one on one double diffuser (a clear outer diffuser and a translucent inner diffuser)
• Luminaire integrated with 30W LED.
• Die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4975-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Elegant, Robust design
• Environmental friendly, moisture proof, insect free.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application

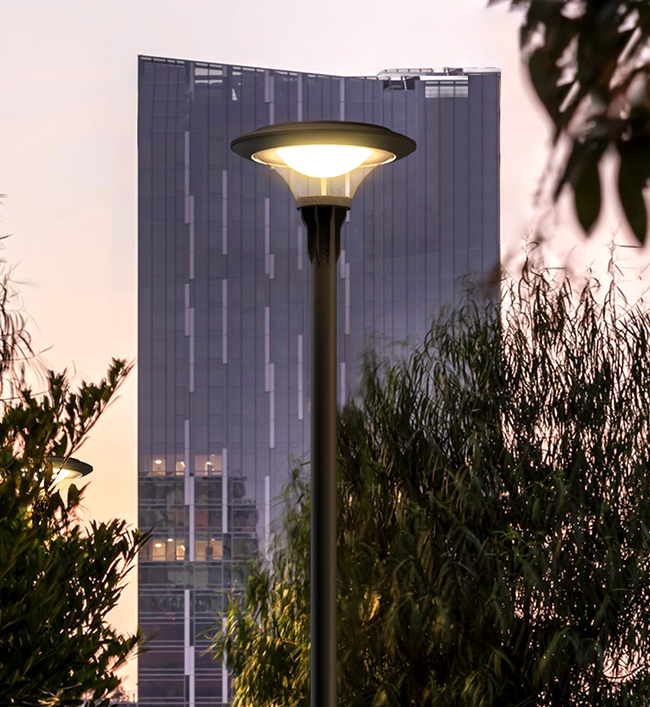

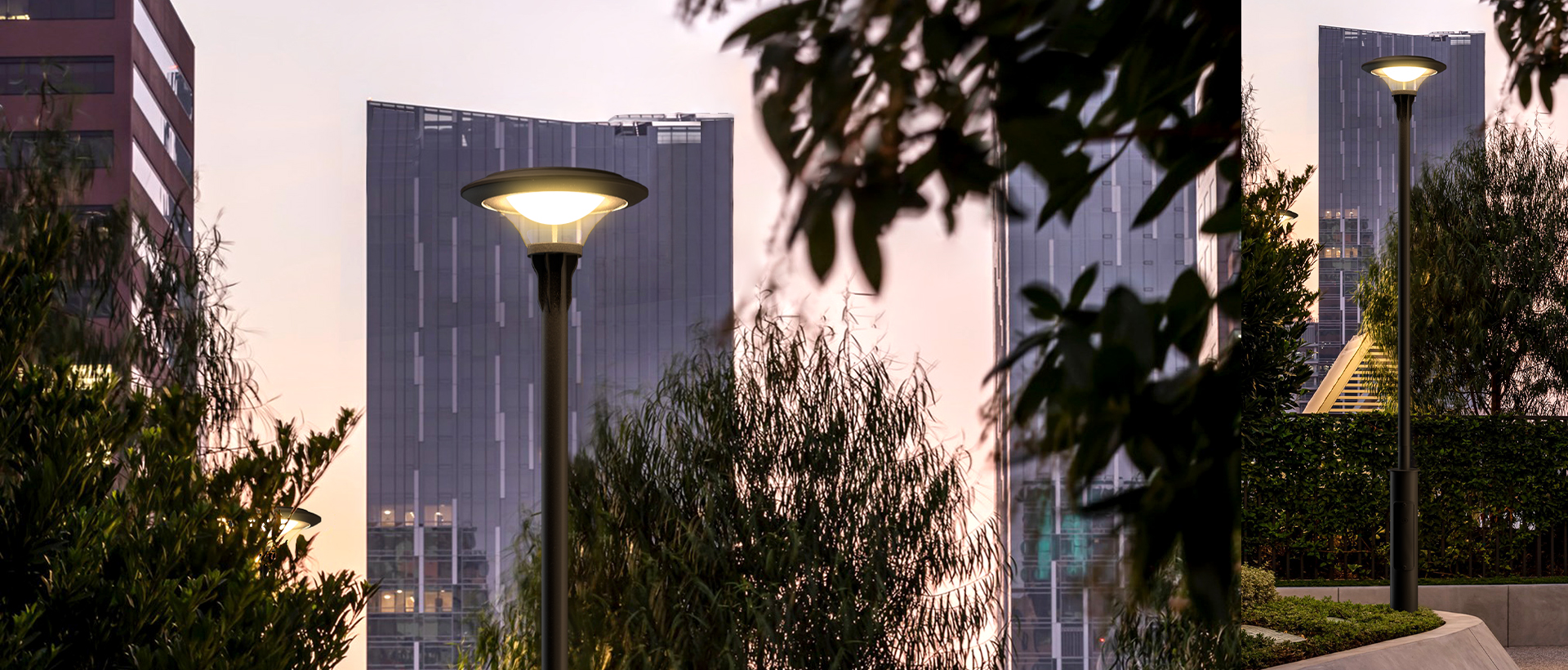

Illuminating parks, Gardens, commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

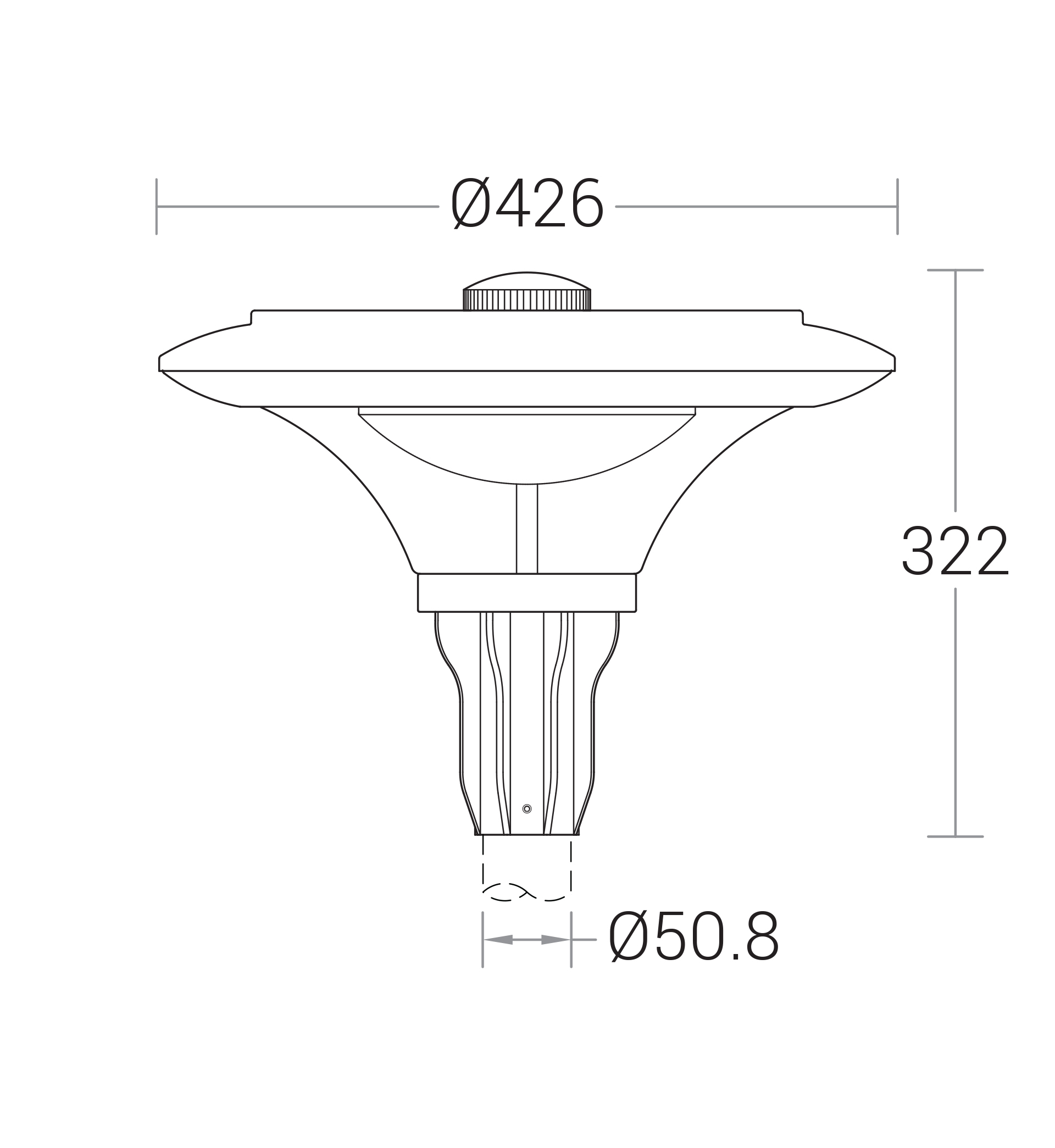

KL-497530W LED 2700K,3000K,4000K,5700K, Clear AcrylicØ426 x 322mmD1
KL-4975.IESKL-4975.PDF4975.pdf
