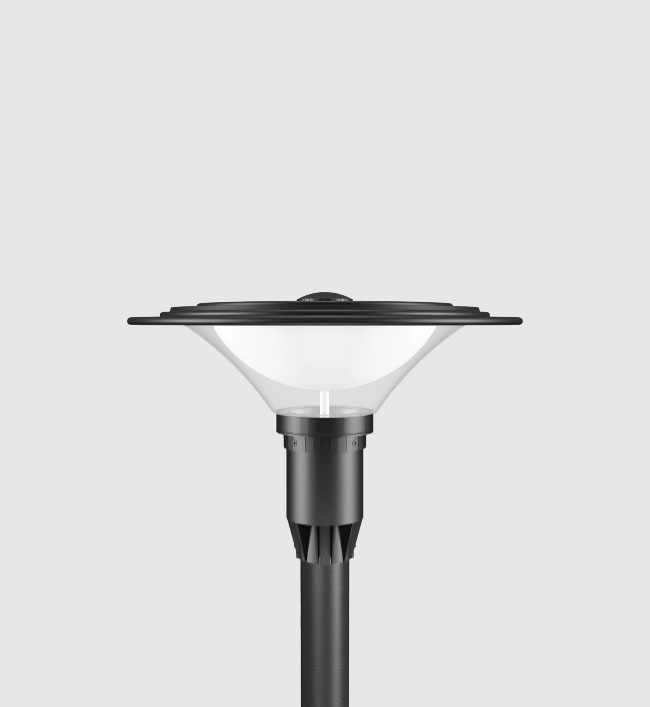

A modern heritage post top luminaire upgraded with high performance light engines.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Designed for highest efficiency in terms of more lumens at reduced wattages.

Product Description
• The luminaire made of spun aluminium top cover and die cast aluminium base.
• A combination of one on one double diffuser (a clear outer diffuser and a translucent inner diffuser)
• Luminaire integrated with 30W LED.
• Die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4976-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K.

Product Benefits
• Elegant,Robust design.
• Environmental friendly,moisture proof,insect free.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application

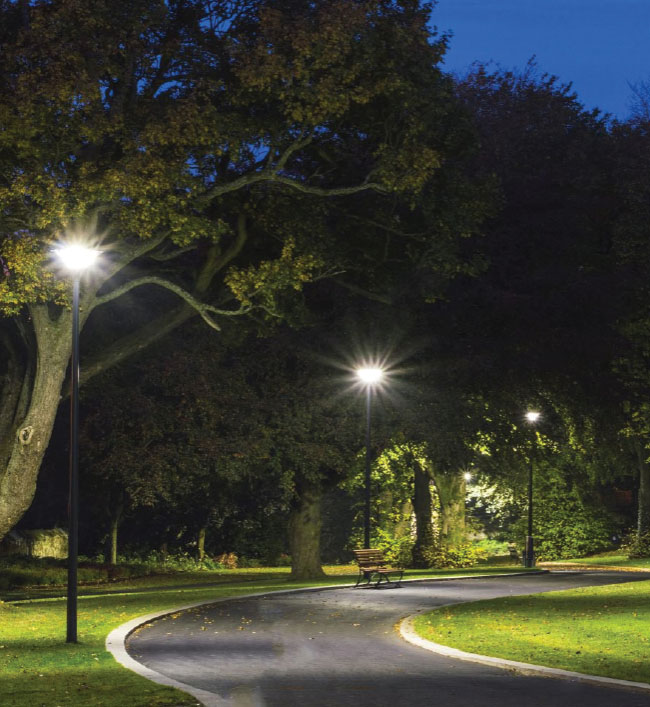

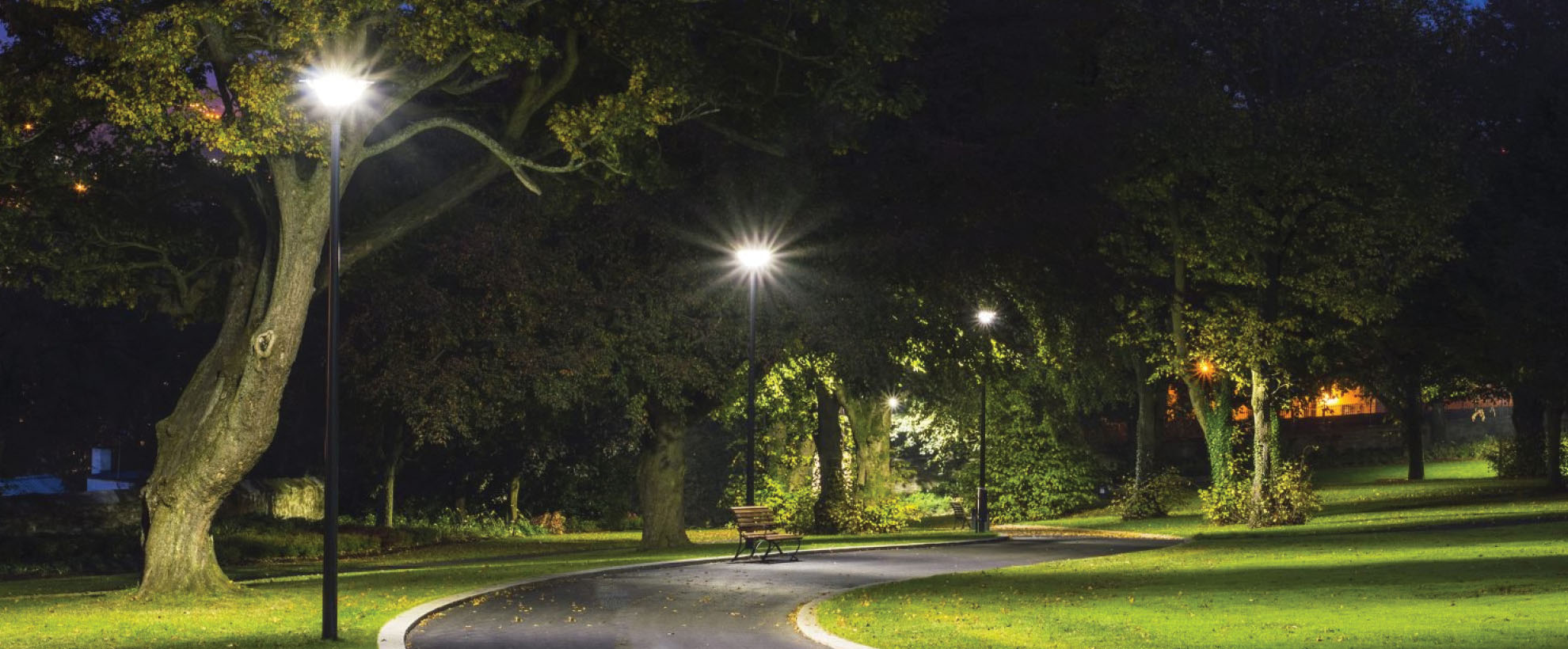

Illuminating parks,Gardens,commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

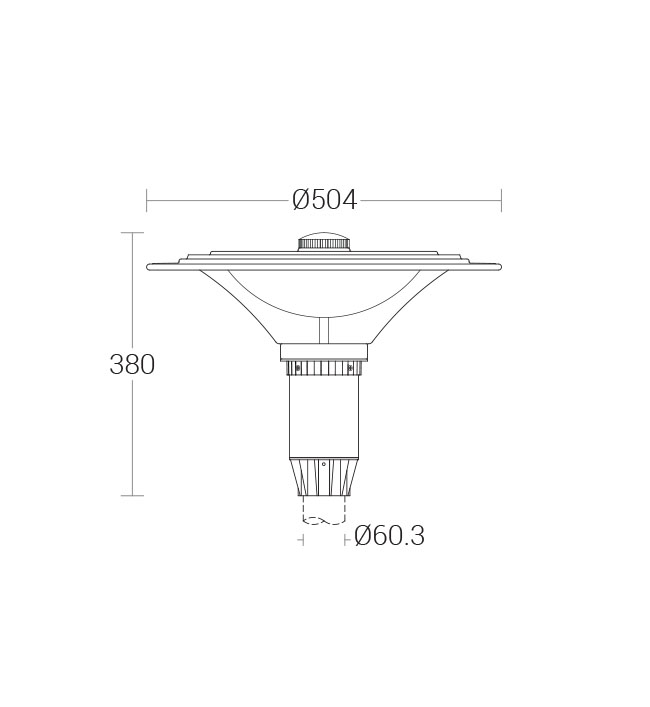

KL-497630W LED 3000K,4000K,5700K, Translucent acrylic Inner & Clear acrylic outerØ504 x 389mmD2
