Jamal - Adjustable
Jamal Street Light Cut off lantern, integral model, aesthetically contoured. Improved long lasting protection against ingress of dust / insects inside optical compartment with top opening facility for maintenance.

Product Description
• Luminaire body and top cover made of die cast aluminium featuring high strength and anti corrosion.
• Integrated with 50W / 100WLED module.
• Clear polycarbonate optical cover

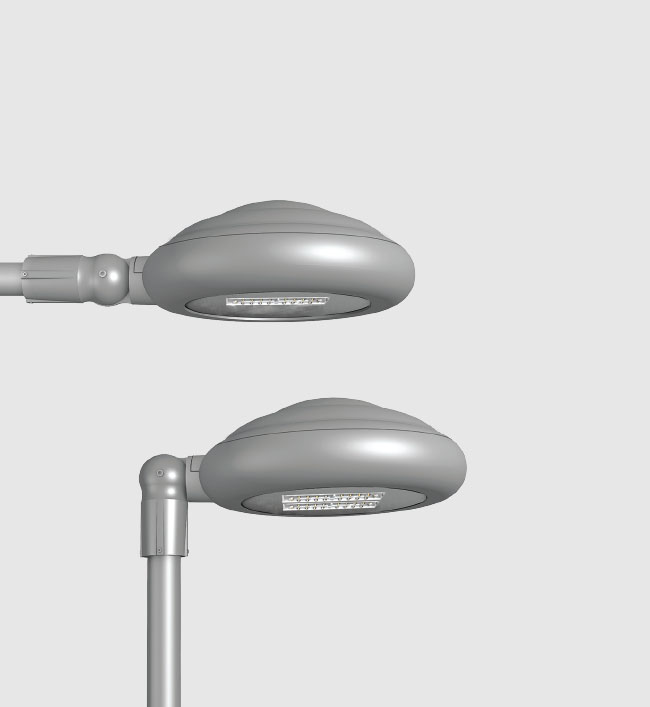

• Suitable for mounting on to 60mm dia pipe at any angle between lateral (side entry) and vertical (top mount).
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single phase ac supply.
• Ordering guide : KL-6790-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Top cover retained by hinge for easy maintenance and held in closed position by spring loaded latch.
• Functionally versatile, strong and stable with sound engineering.
• Corrosion resistant and easy maintenance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

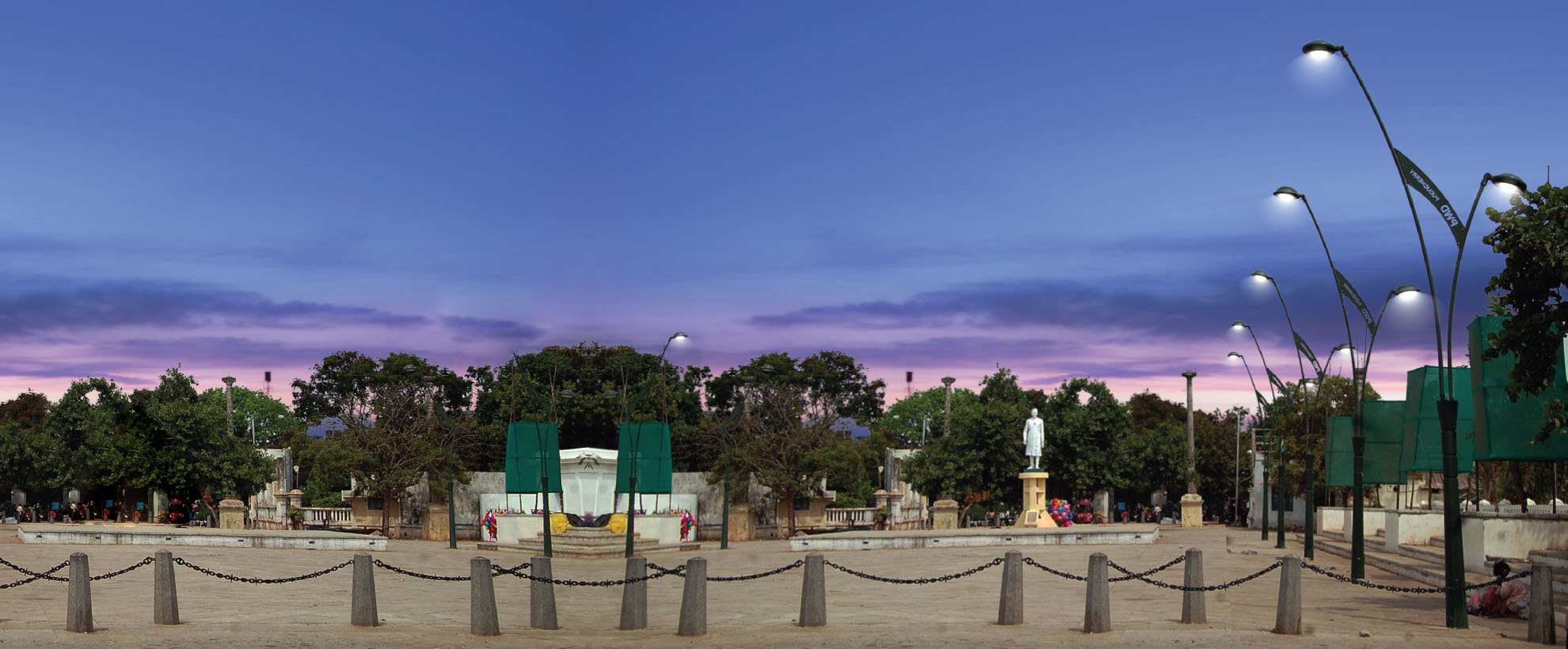

Street Lighting, Smaller Roadways, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Traffic grey
• Black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

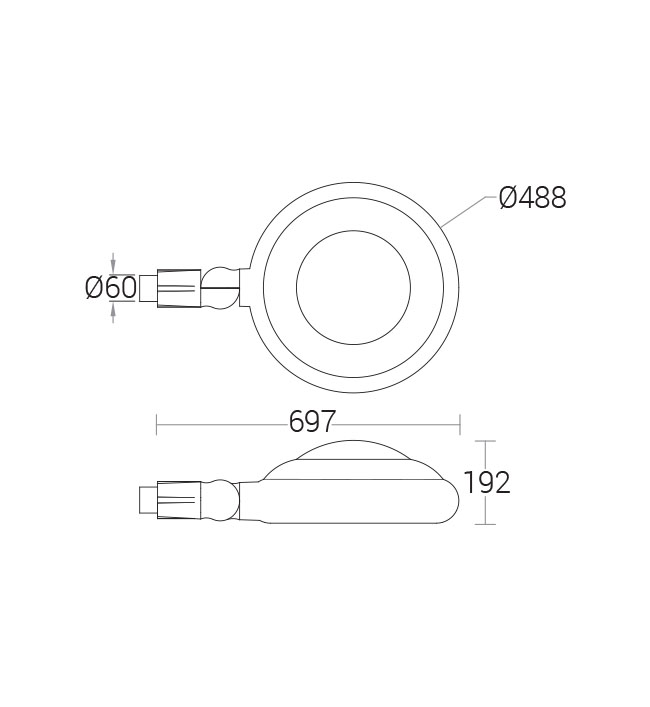

KL-6300100W LED WW,CW,NW BA:Type III, Clear Polycarbonate Optical Cover697 x 488 x 192mmD26300.pdf
KL-679050W LED WW,CW,NW BA:Type III, Clear Polycarbonate Optical Cover697 x 488 x 192mmD2KL-6790-BATYPEIII-WW.IES
KL-6790-BATYPEIII-CW.IES
KL-6790-BATYPEIII-NW.IES
KL-6790-BATYPEIII-WW.PDF
KL-6790-BATYPEIII-CW.PDF
KL-6790-BATYPEIII-NW.PDF
6790.pdf
KL-6790.txt
