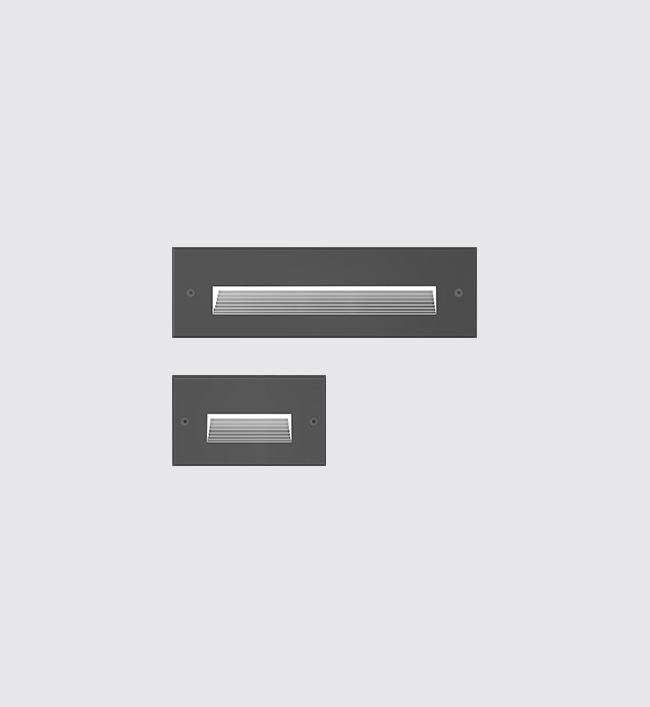

Sudo/Sudo Mini - Asy Frame
Sudo represents a perfect combination of sleek and aesthetic fixtures designed to provide uniform illumination for low mounting heights where guidance and security lighting is required. Sustainable LED technology offers durability and optimal light output with low power consumption.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive A2 stainless steel fasteners.
• Non yellowing UV stabilized clear acrylic diffuser.
• Silicone gasket.
• ABS plastic installation housing for preparing the recess opening in wall / stairs for flush mounting.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80 ( >90 - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-2743-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High visual comfort
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for pathway.

Area of Application
Staircase,Patios,Walkways,Passages,Porches,Entrance & Exits for both Interior & Exterior applications.

Available Finish
Pure polyester powder coat
• Graphite grey
• Anthracite grey
• Jet black

Accessory
Recess installation mounting sleeve included.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-274312W LED 2700K,3000K,4000K,5700K, Clear AcrylicC.O.D : 240 x 83 x 70mmKL-2743.IES
KL-2743.IES
KL-2743.IES
KL-2743-BA--4000K.IES
KL-2743.PDF
KL-2743.PDF
KL-2743.PDF
KL-2743-BA--4000K.PDF
2743.pdf
KL-2743.txt
KL-27576W LED 2700K,3000K,4000K,5700K, Clear AcrylicC.O.D : 240 x 83 x 70mmKL-2757.IES
KL-2757.IES
KL-2757.IES
KL-2757.PDF
KL-2757.PDF
KL-2757.PDF
2757.pdf
KL-2757.txt
KL-27476W LED 2700K,3000K,4000K,5700K, Clear AcrylicC.O.D : 124 x 83 x 70mmKL-2747.IES
KL-2747.IES
KL-2747.IES
KL-2747-BA--3000K.IES
KL-2747.PDF
KL-2747.PDF
KL-2747.PDF
KL-2747-BA--3000K.PDF
2747.pdf
KL-2747.txt
