Juno

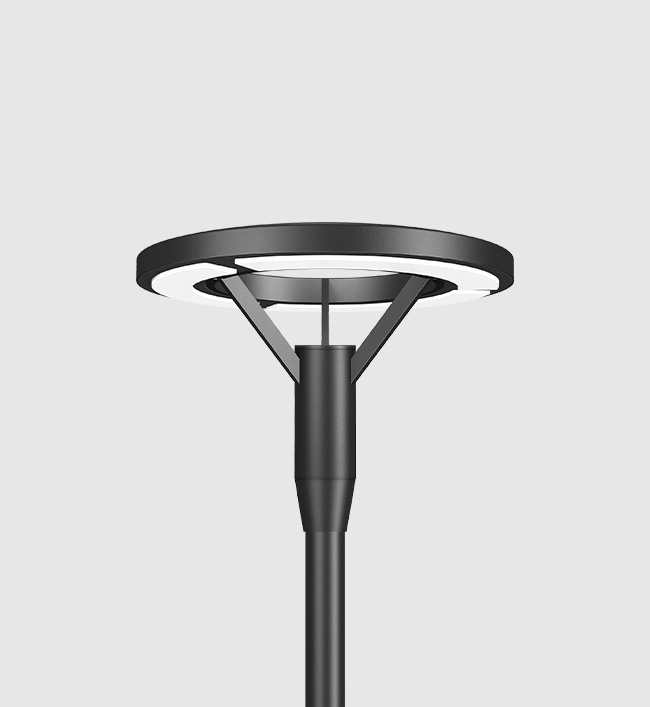

An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice with glare free light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• Aluminium housing, integrated with MS hotdip pipe along with die cast aluminium base through supporting arms made of mild steel.
• Diffuser placed into the provision formed on the pheriphery of the bottom cover.
• Non yellowing UV stabilized translucent acrylic diffuser.
• Low power loss LED driver with 60W LED.
• Suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5040-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

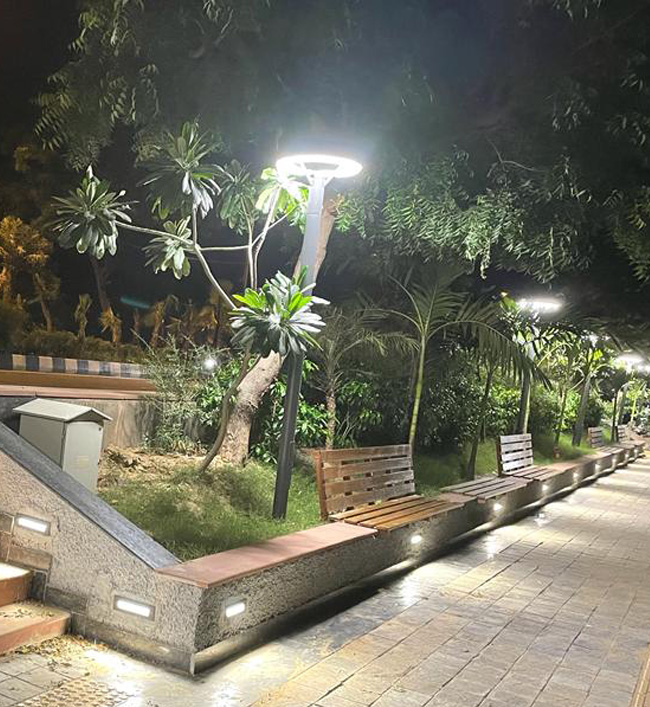

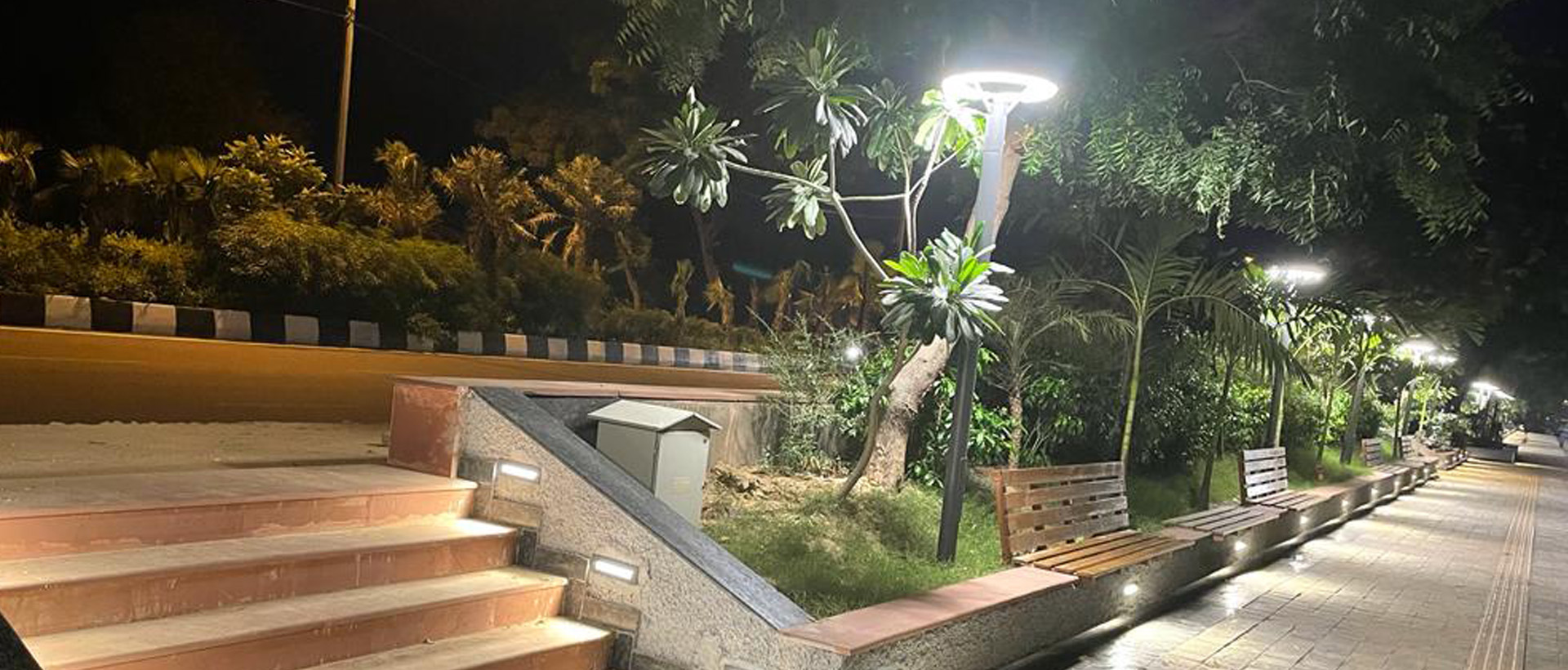

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

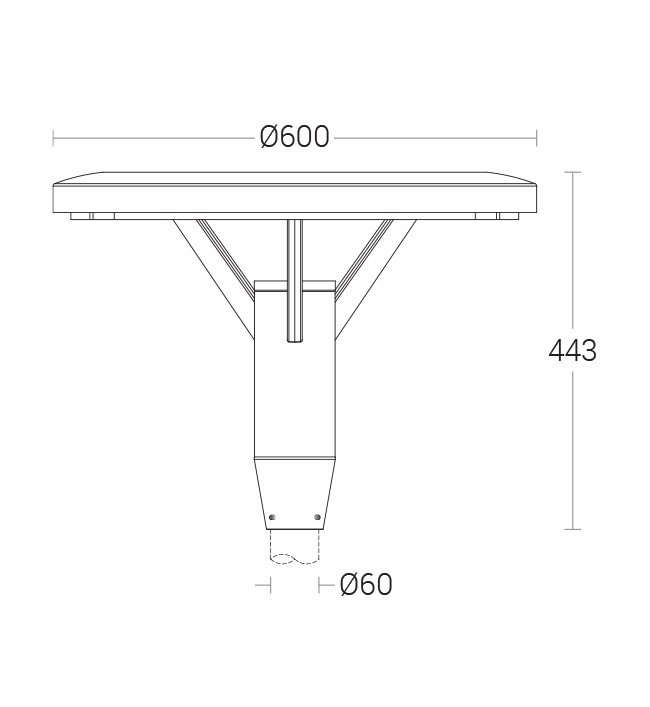

KL-504060W LED 2700K,3000K,4000K,5700K BA:120°, TranslucentØ600 x 443mmD2
KL-5040-BA120°-WW.IES
KL-5040-BA120°-CW.IES
KL-5040-BA120°-NW.IES
KL-5040-BA120°-WW.PDF
KL-5040-BA120°-CW.PDF
KL-5040-BA120°-NW.PDF
5040.pdf
KL-5040.txt
