Hales

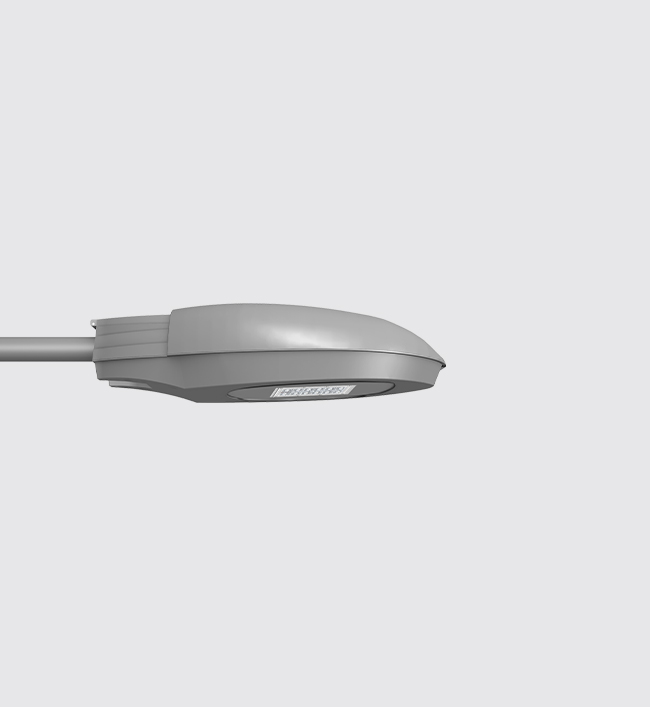

Hales Street Light Cut off lantern, integral model, horizontal & vertical mounting. High Brightness, LED Light source do not pose any environment risks. Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment with top opening facility for maintenance.

Product Description
• Luminaire body and top cover made of pressure die cast aluminium featuring high strength and anti corrosion.
• Top cover retained by hinge for easy maintenance and held in closed position by spring loaded latch.
• Integrated with 30W/50W LED module.
• Clear Polycarbonate optical cover.
• Suitable for mounting horizontal & vertical on 48mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz, single phase ac supply.
• Ordering guide : KL-5133-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Top cover retained by hinge for easy maintenance and held in closed position by spring loaded latch.
• Functionally versatile, strong and stable with sound engineering.
• Corrosion resistant and easy maintenance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

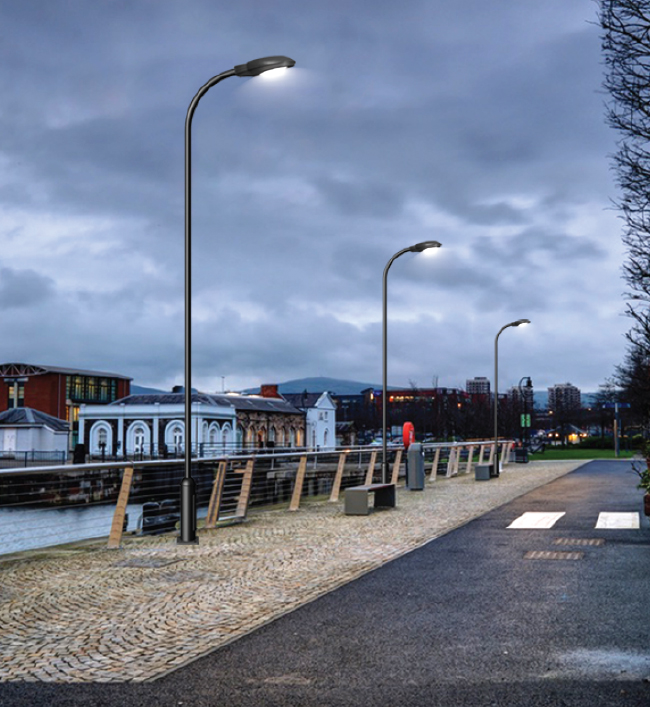

Street Lighting, Smaller Roadways, Expressways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Traffic grey
• Black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

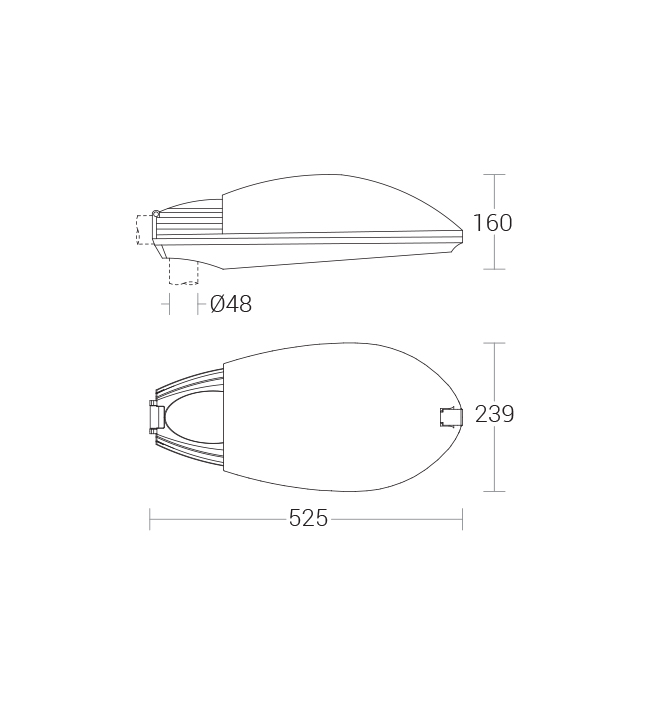

KL-41761 x 50W LED 3000K,4000K,5700K BA:Type III, Clear Polycarbonate Optical Cover525 x 239 x 160mmD14
KL-4176-BATYPEIII-WW.IES
KL-4176-BATYPEIII-CW.IES
KL-4176-BATYPEIII-NW.IES
KL-4176-BATYPEIII-WW.PDF
KL-4176-BATYPEIII-CW.PDF
KL-4176-BATYPEIII-NW.PDF
4176.pdf
KL-51331 x 30W LED 3000K,4000K,5700K BA:Type II, Clear Polycarbonate Optical Cover525 x 239 x 160mmD14
KL-5133-BATYPEII-WW.IES
KL-5133-BATYPEII-CW.IES
KL-5133-BATYPEII-NW.IES
KL-5133-BATYPEII-WW.PDF
KL-5133-BATYPEII-CW.PDF
KL-5133-BATYPEII-NW.PDF
5133.pdf
