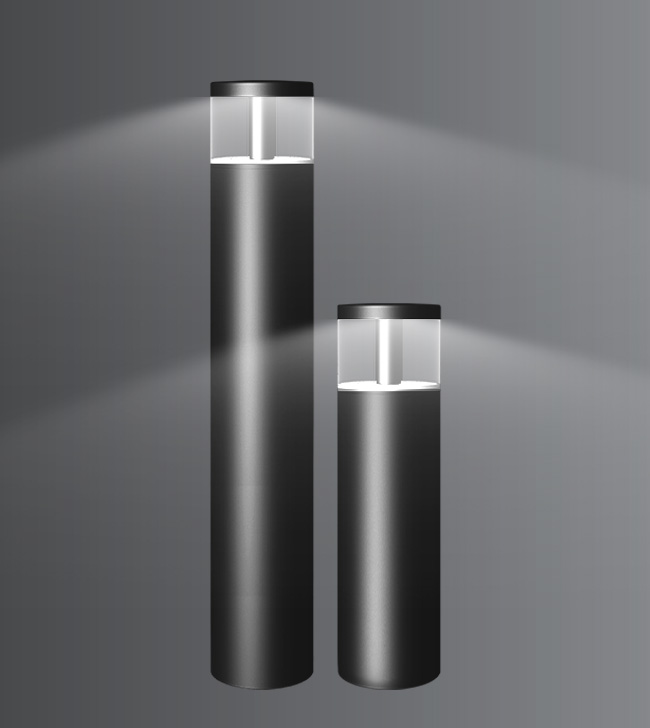

Vajra Bollard
These environmentally friendly LED garden and pathway luminaires, create a pleasant light distribution with a high degree of visual comfort. These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances, footpaths as well as garden and landscape architecture. Clean Lines and pure form are the underlying elements of this series of LED bollards, designed to provide radially symmetric light emission of 360°.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• Shielded light source .
• For optimum illumination, these luminaires can be supplied in three different heights.
• Reflector system made of spun aluminium.
• Non yellowing UV stabilized polycarbonate clear / translucent diffuser.
• Silicone gasket.
• Die-cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.
• Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 ( 90 CRI - On Request )
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5551-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Suitable for Residential & Public areas for Illuminating Driveways, Pathways, Flowerbeds, Entrances, Squares, Gardens and as well as landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey (RAL : 7016)
• Jet black (RAL : 9005)

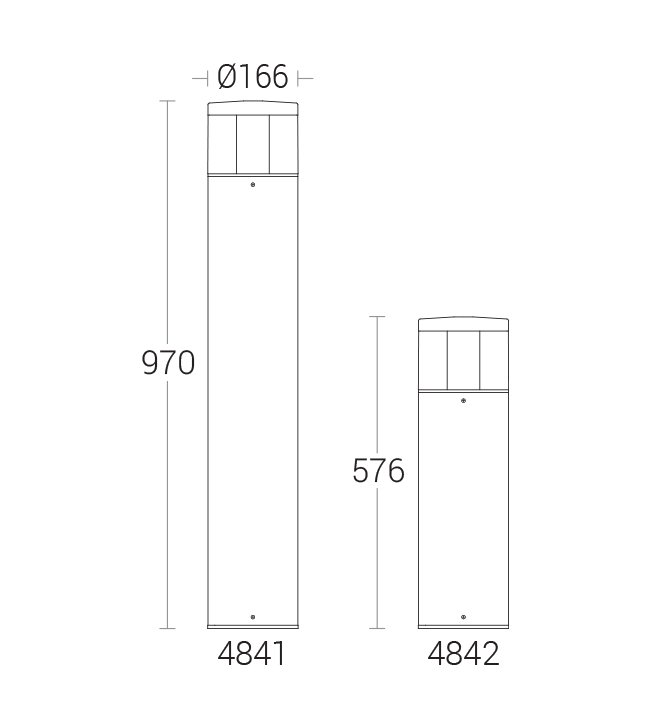

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-484116W LED WW,NW,CW, Clear PolycarbonateØ166 x 1025mmM3
Detailed Foundation Drawing
KL-4841-BA--WW.IES
KL-4841-BA--CW.IES
KL-4841-BA--NW.IES
KL-4841-BA--WW.PDF
KL-4841-BA--CW.PDF
KL-4841-BA--NW.PDF
4841.pdf
KL-484216W LED WW,NW,CW, Clear PolycarbonateØ166 x 490mmM3
Detailed Foundation Drawing
KL-4842-BA--WW.IES
KL-4842-BA--CW.IES
KL-4842-BA--NW.IES
KL-4842-BA--WW.PDF
KL-4842-BA--CW.PDF
KL-4842-BA--NW.PDF
4842.pdf
