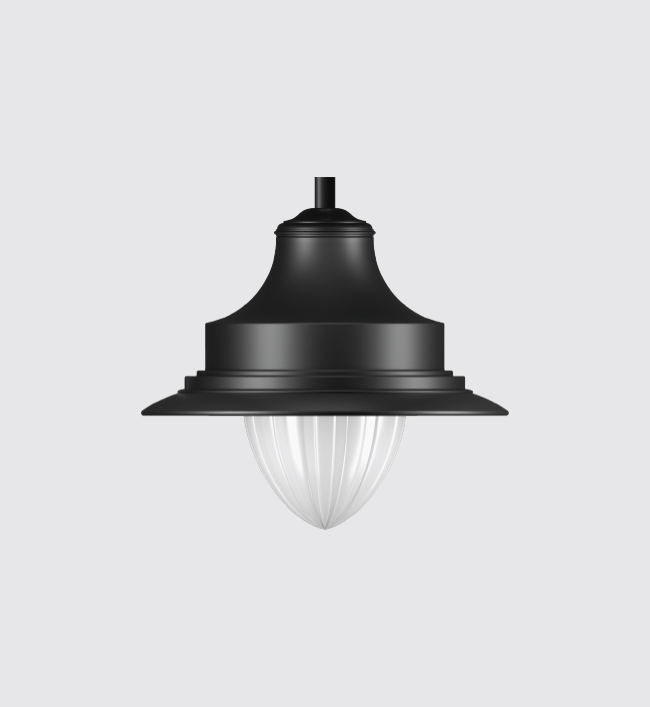

Pelican Fort
Pelican Fort street light luminaires is a special purpose outdoor luminaire,integral model,totally weather proof aesthetically contoured.Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment with top opening facility for maintenance.

Product Description
• Luminaire comprises of specially contoured spun aluminium body featuring high strength and anti corrosion.
• Non yellowing, UV stabilised,Clear V acrylic / Clear V Polycarbonate diffuser.
• EPDM gasket.
• Luminaire integrated with 50W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-6791-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

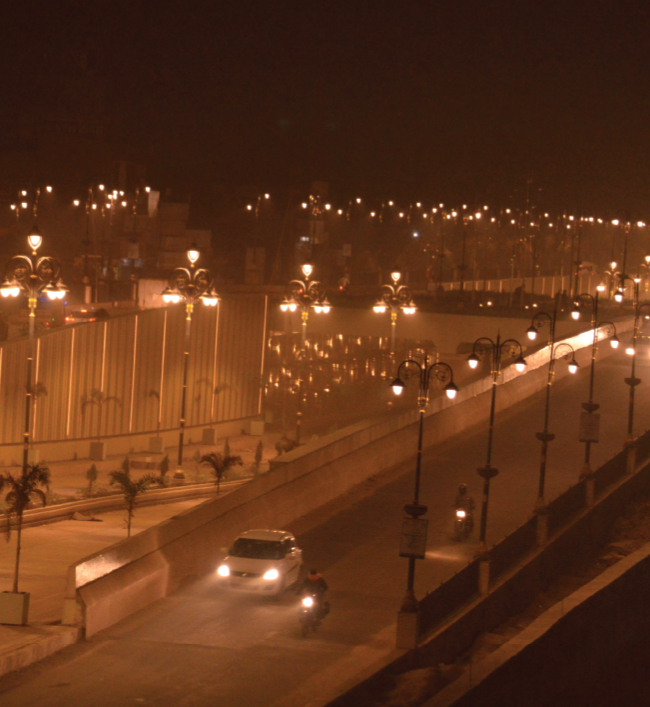

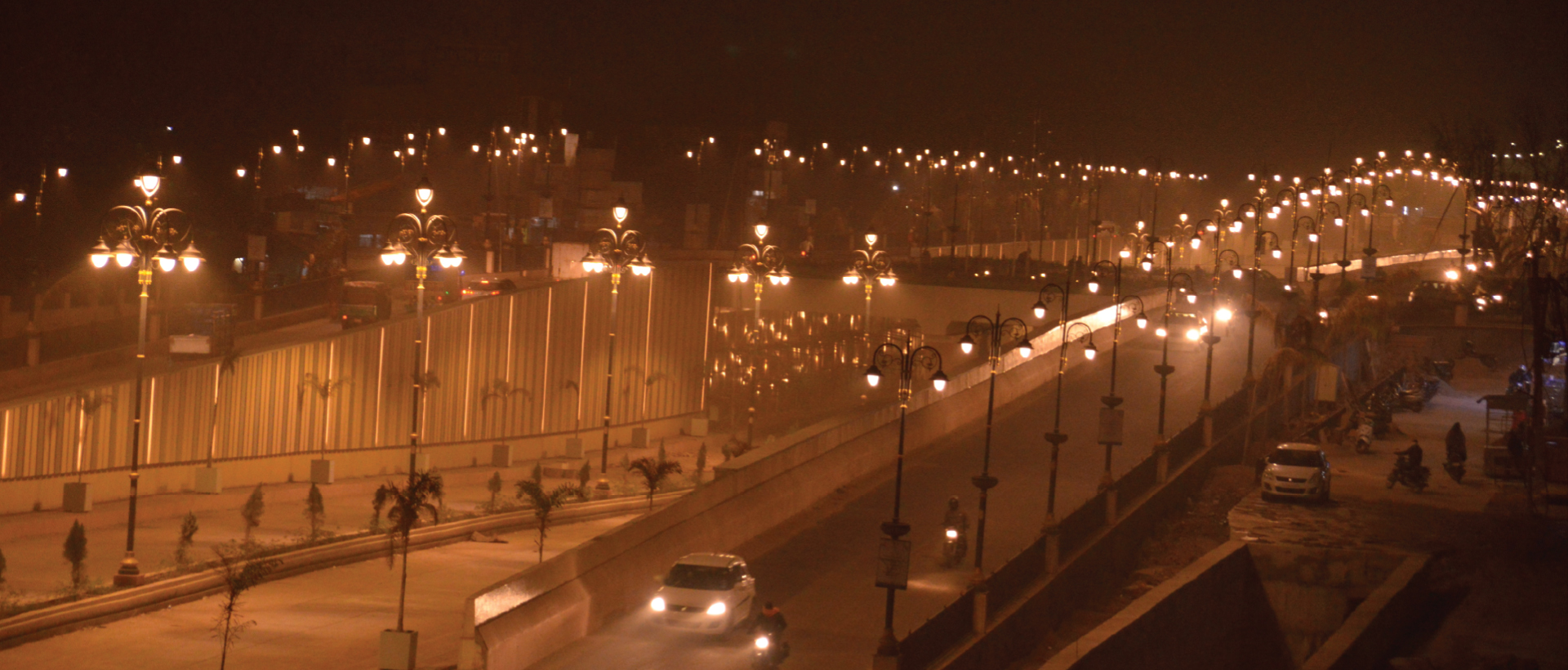

Street Lighting,Expressways,Private driveways,Residential Area Lighting,Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

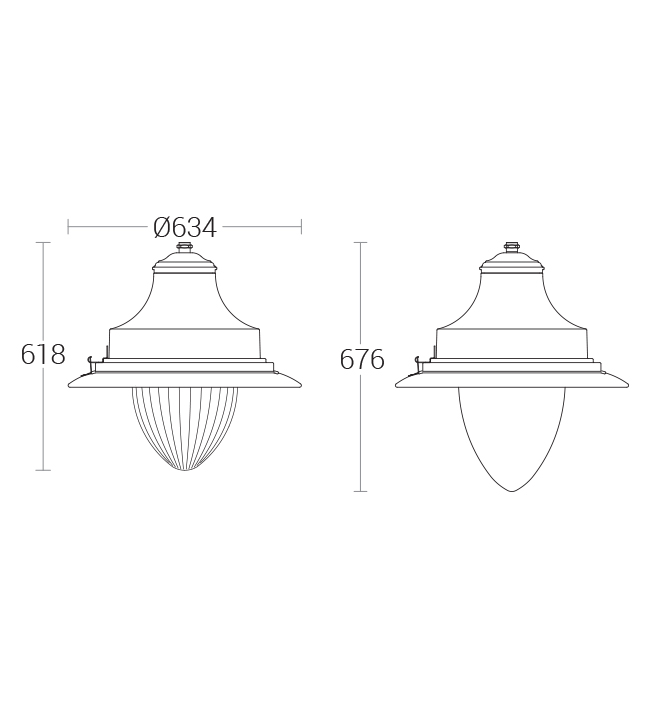

KL-679150W LED 2700K,3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateA9 : Ø634 x 618, A12 : Ø634 x 676mmD4
KL-6791-BAASYMMETRICAL-WW.IES
KL-6791-BAASYMMETRICAL-CW.IES
KL-6791-BAASYMMETRICAL-NW.IES
KL-6791-BAASYMMETRICAL-WW.PDF
KL-6791-BAASYMMETRICAL-CW.PDF
KL-6791-BAASYMMETRICAL-NW.PDF
6791.pdf
KL-6799100W LED 2700K,3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateA9 : Ø634 x 618, A12 : Ø634 x 676mmD4
KL-6799-BATYPEIV-CW.IES
KL-6799-BATYPEIV-WW.IES
KL-6799-BATYPEIV-CW.PDF
KL-6799-BATYPEIV-WW.PDF
6799.pdf
KL-6799.txt
