Karona Fort
Karona Fort street light is a special purpose outdoor luminaire,integral model,totally weather proof aesthetically contoured.Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment.

Product Description

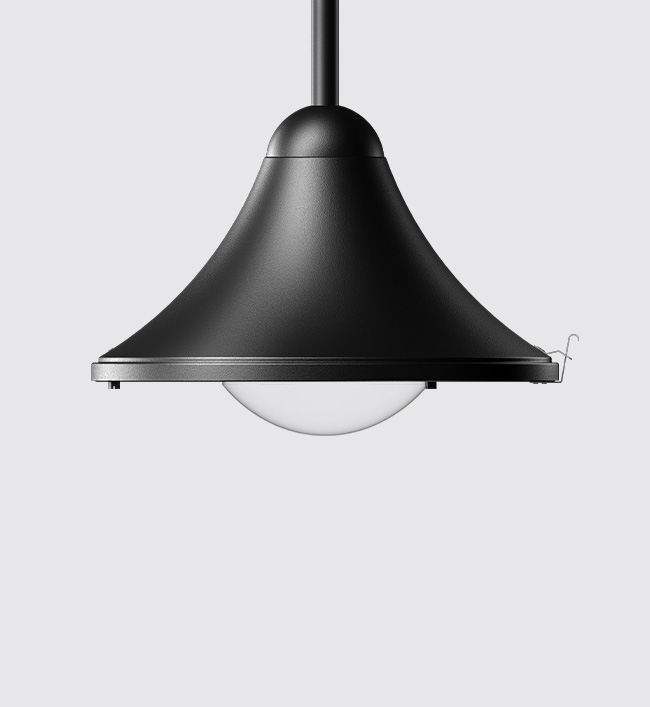

• Luminaire comprises of specially contoured spun aluminium body,extruded aluminium & die cast aluminum top cover featuring high strength and anti corrosion.
• Non yellowing,UV stabilised,Convex type clear acrylic diffuser.
• EPDM gasket.
• Luminaire integrated with 150W / 100W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4620-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

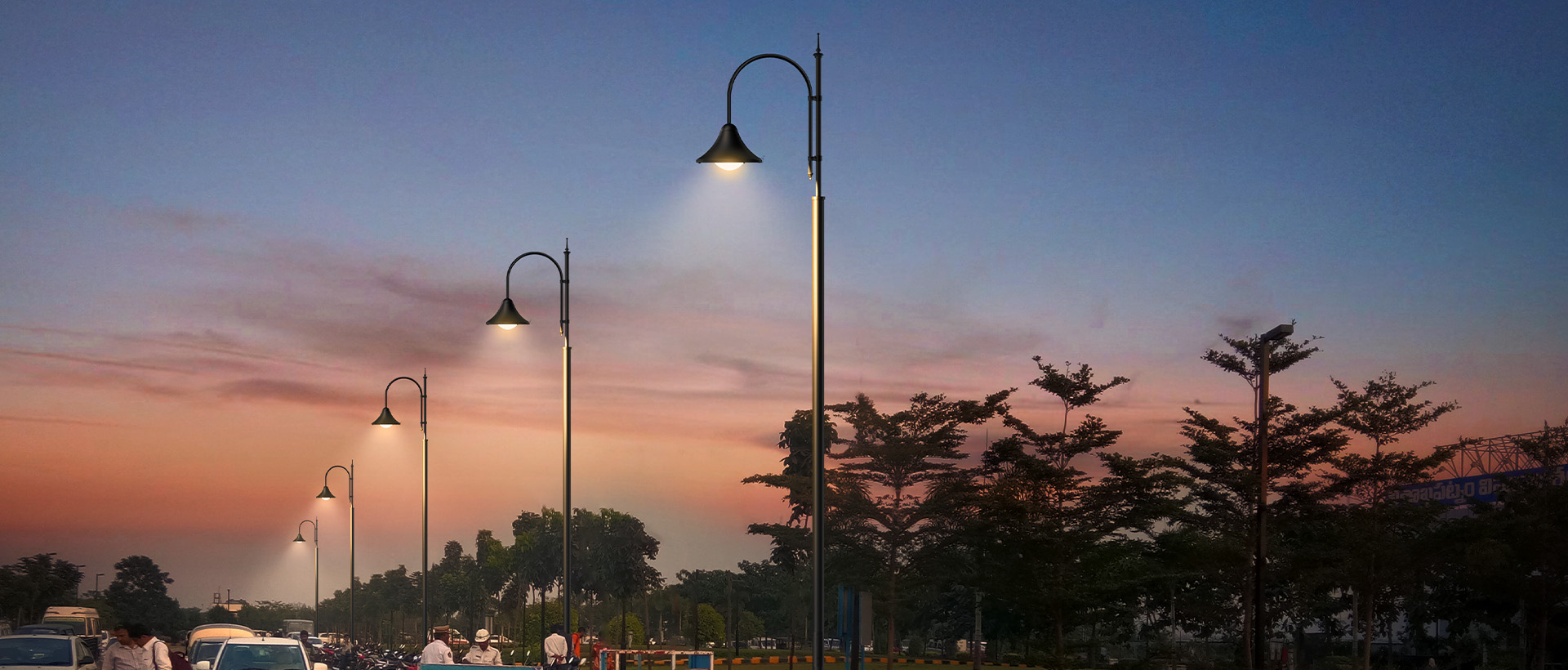

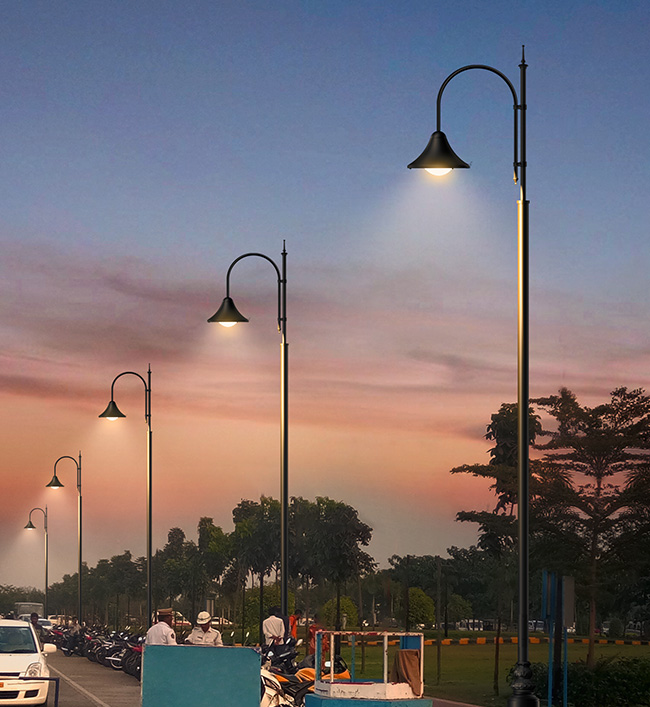

Street Lighting,Expressways,Private driveways,Residential Area Lighting,Courtyards,Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

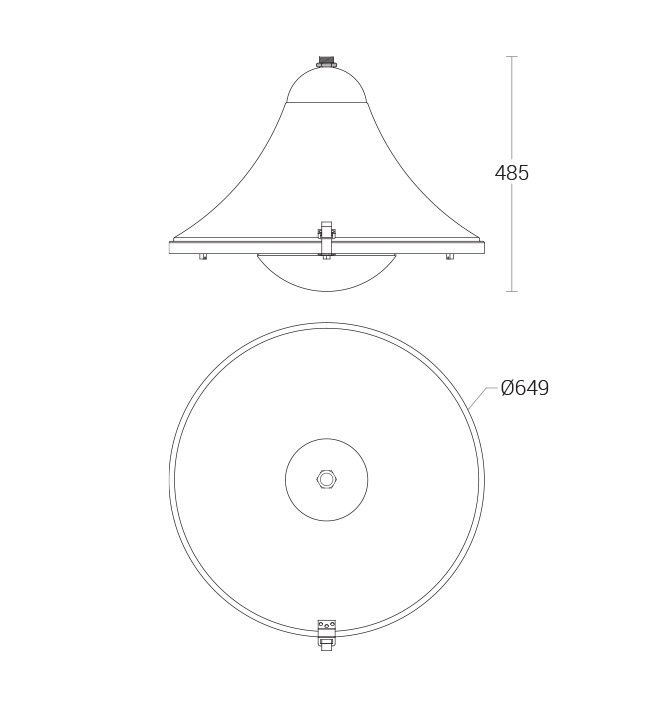

KL-4620150W LED WW,NW,CW BA:Type IV, Clear AcrylicØ645 x 596mmD44620.pdf
KL-4620.txt
KL-6800100W LED WW,NW,CW BA:Type IV, Clear AcrylicØ645 x 596mmD46800.pdf
KL-6800.txt
