Imperial
Imperial Street Light is a special purpose outdoor luminaire,integral model,totally weather proof aesthetically contoured.Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment with top opening facility for maintenance.

Product Description

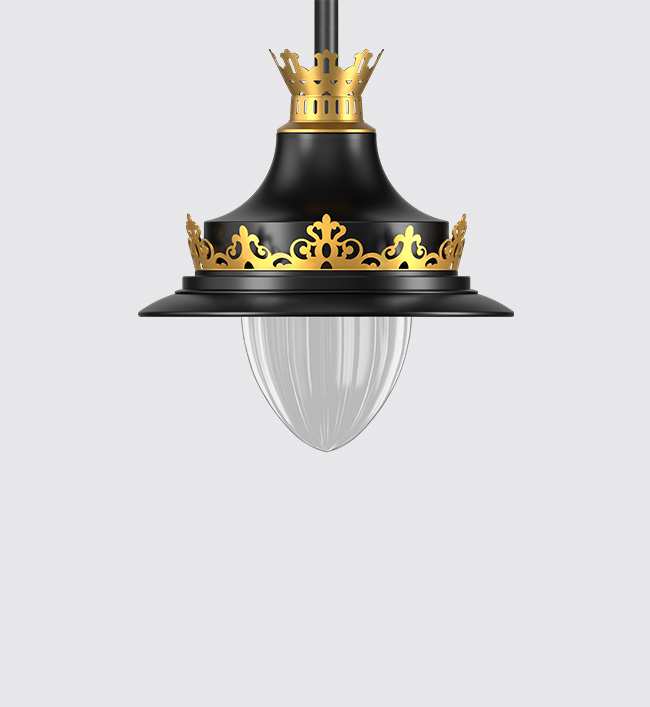

• Luminaire comprises of specially contoured spun aluminium body featuring high strength and anti corrosion.
• Aluminium Casting crown attachment added for aesthetics.
• Non yellowing,UV stabilised,Clear V diffuser / Clear Polycarbonate V diffuser.
• EPDM gasket.
• Luminaire integrated with 50W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-5138-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

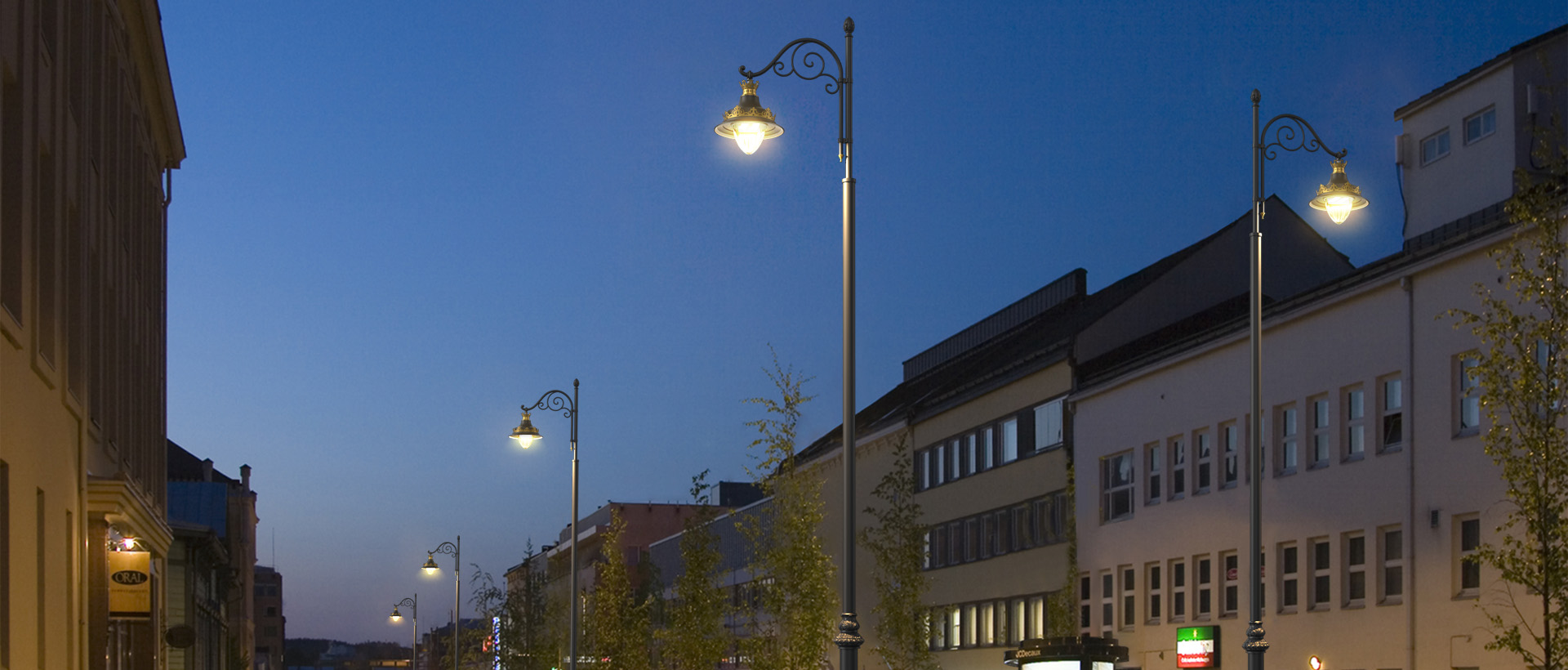

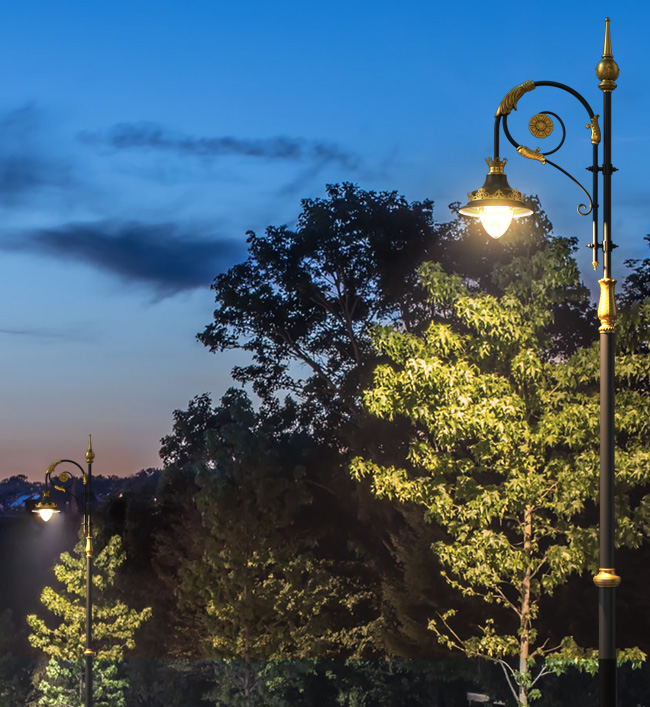

Street Lighting,Private driveways,Residential Area Lighting,Courtyards,Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

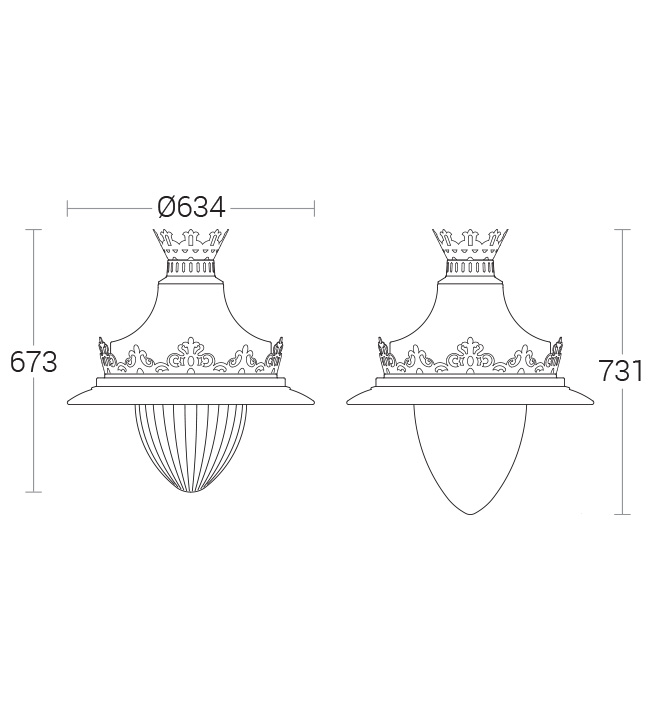

KL-513850W LED 3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateA9 : Ø634 x 673, A12 : Ø634 x 731mmD4
KL-5138-BAASYMMETRICAL-WW.IES
KL-5138-BAASYMMETRICAL-CW.IES
KL-5138-BAASYMMETRICAL-NW.IES
KL-5138-BAASYMMETRICAL-WW.PDF
KL-5138-BAASYMMETRICAL-CW.PDF
KL-5138-BAASYMMETRICAL-NW.PDF
5138.pdf
KL-5139100W LED 3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateA9 : Ø634 x 673, A12 : Ø634 x 731mmD4
5139.pdf
