An elegant and efficient lantern with prismatic diffuser provide a unique, comfortable light choice with symmetrical and glare free light distribution. Designed for highest efficiency in terms of more lumens at reduced wattages. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description

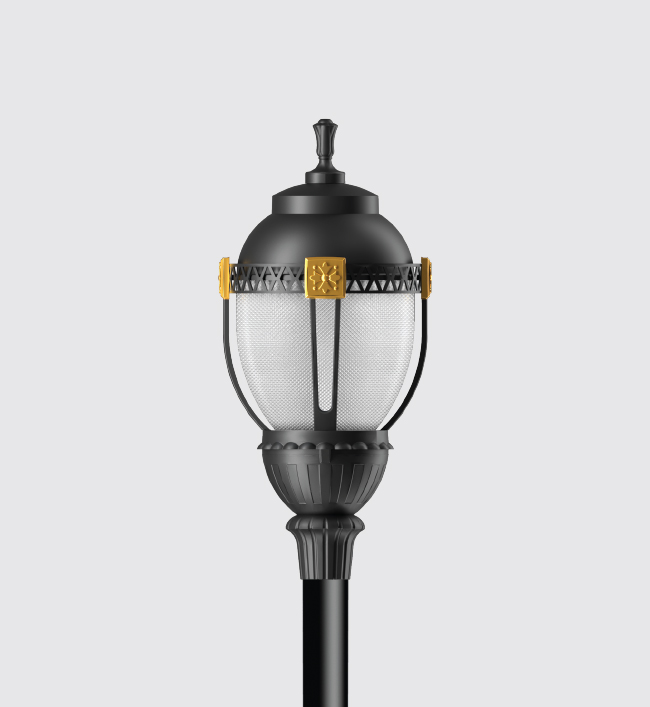

• The luminaire comprises of specially contoured spun aluminium top cover, aluminium decorative knob on top with ornamental supporting arms.
• Prismatic polycarbonate diffuser.
• EPDM Gasket.
• Luminaire integrated with 45W LED.
• Decorative die-cast aluminium base.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4998-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Elegance, Functionality.
• Environmental friendly.
• Moisture proof, insect free.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

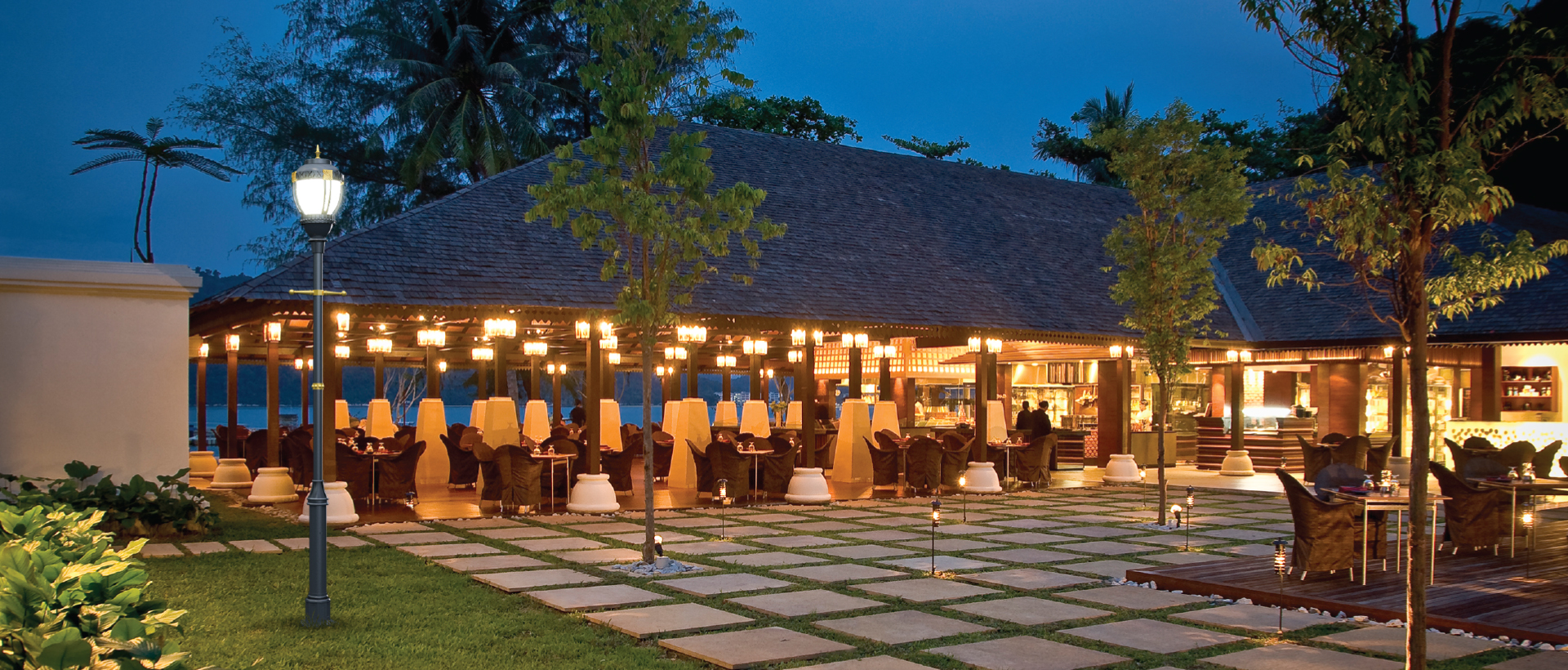

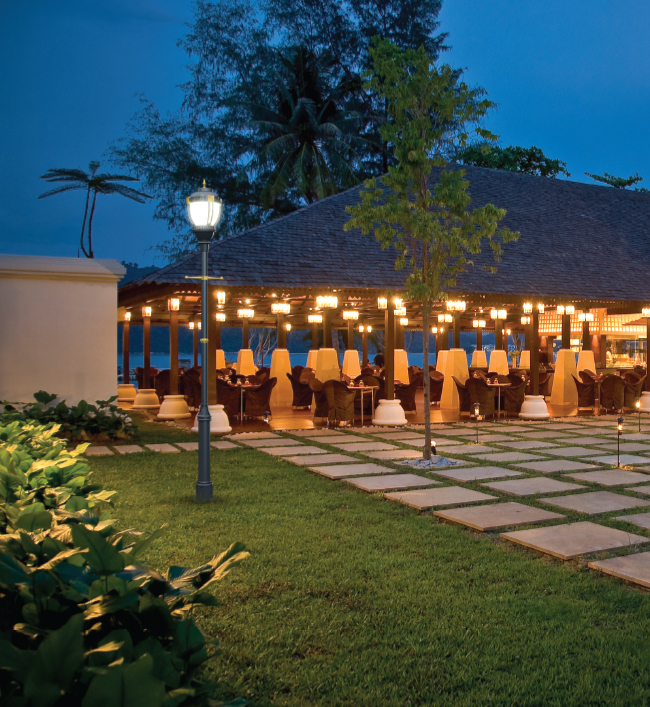

Illuminating parks, Gardens, Commercial complex, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

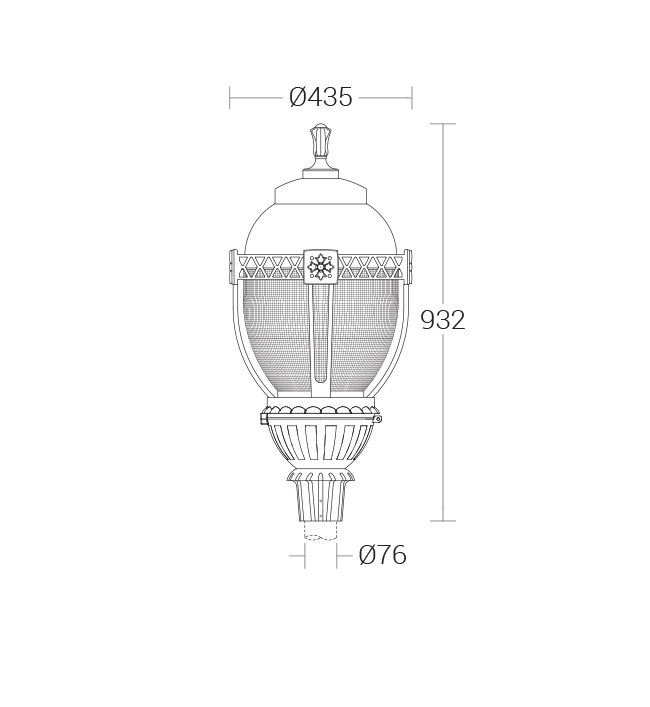

KL-4918E27 Holder (Max. 30W LED / 45W CFLE), PrismaticØ435 x 932mmD3
KL-499845W LED WW,CW,NW, PrismaticØ435 x 932mmD34998.pdf
