Magudam

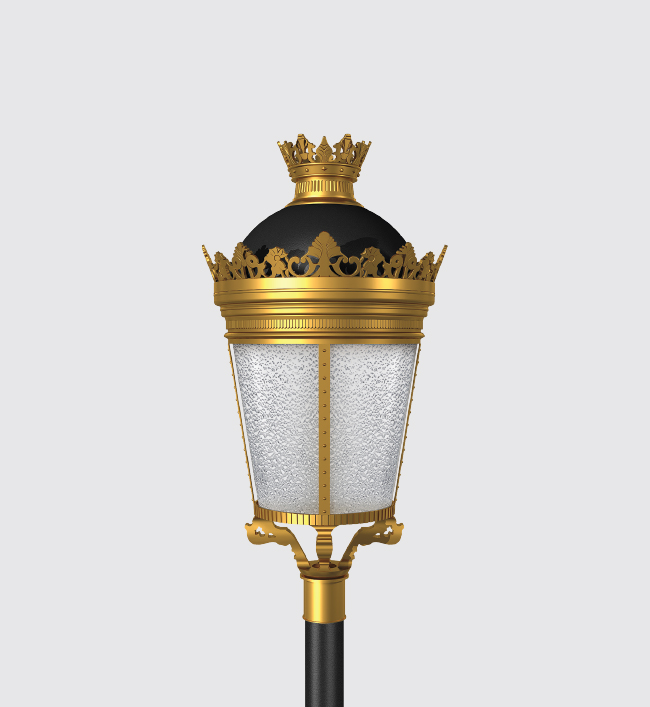

A modern heritage post top luminaire upgraded with high performance light engines.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover.
• Cast aluminium magudam attachment added for aesthetics.
• Prismatic diffuser.
• The lamp lamp along with driver is housed inside the top portion and the bottom portion attached to a mounting base.
• Luminaire integrated with 50W LED.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4999-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Functionality.
• Environmental Friendly.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

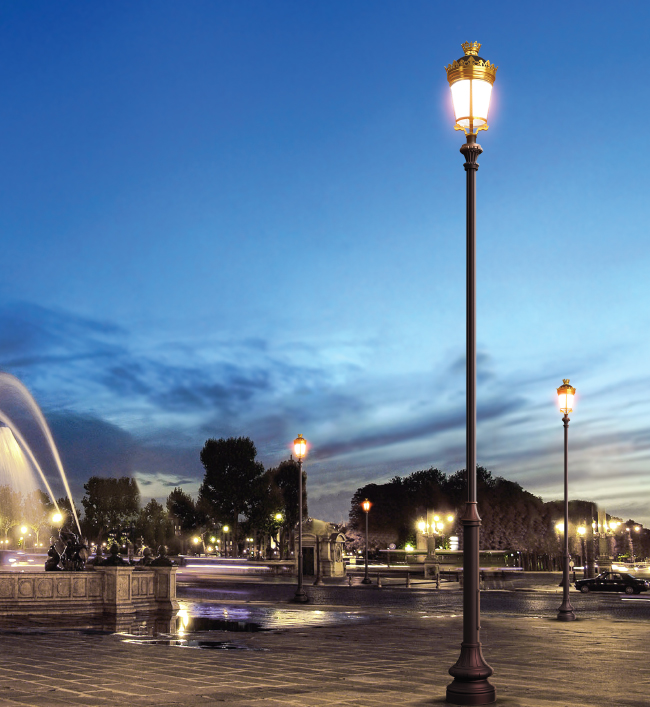

Illuminating parks,Gardens,commercial complex,Pathways in residential buildings,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey & Gold
• Anthracite grey & Gold
• Jet black & Gold.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4919E27 Holder (Max. 30W LED / 45W CFLE), PrismaticØ495 x 960mmD3

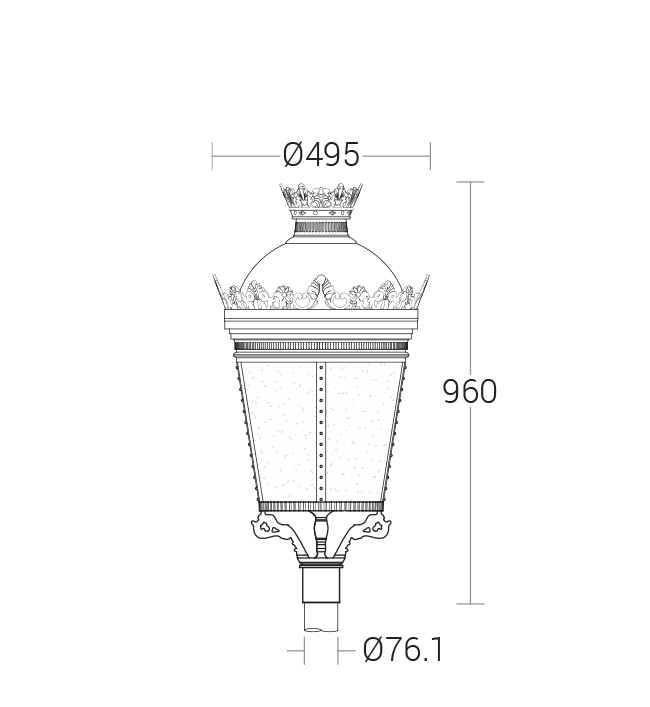

KL-499950W LED 2700K,3000K,4000K,5700K, PrismaticØ495 x 960mmD3
4999.pdf
