Ganthal
Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Low glare indirect post top luminaire designed for symmetrical light distribution.

Product Description

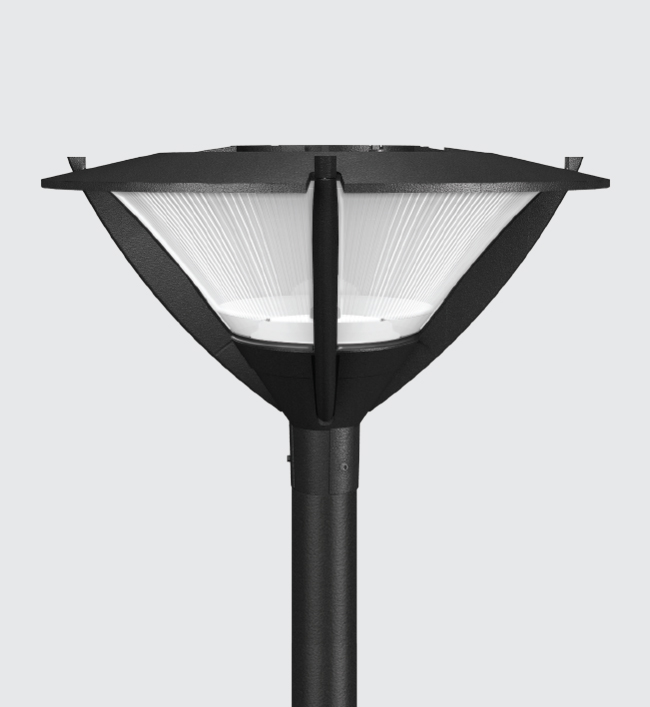

• The luminaire comprises of die cast aluminium body fixed into the frame with SS screws.
• Top cover made up of 2 parts sealed together so as to obtain a high degree of protection.
• Brite aluminium reflector is profiled for improved illumination efficiency.
• Luminaire integrated with 30W LED.
• Reeded clear acrylic diffuser.
• Suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-5027-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Elegant,Robust design.
• Environmental Friendly
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

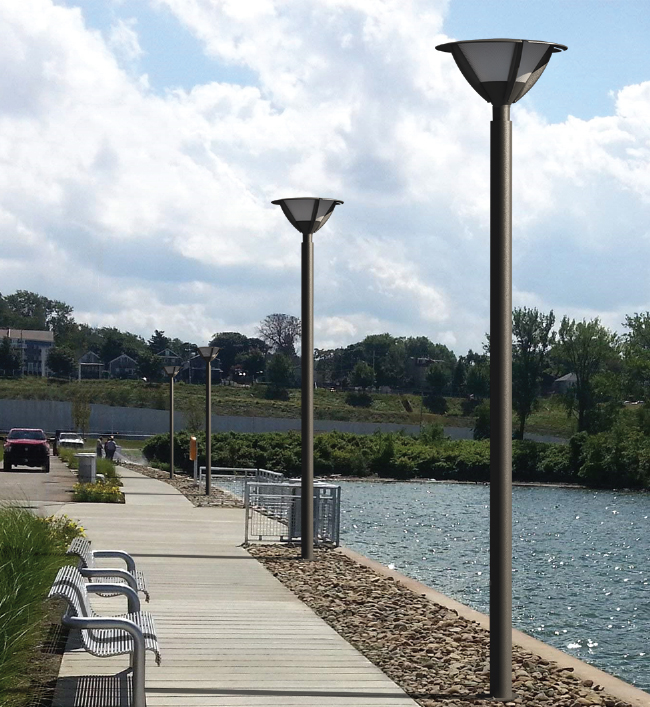

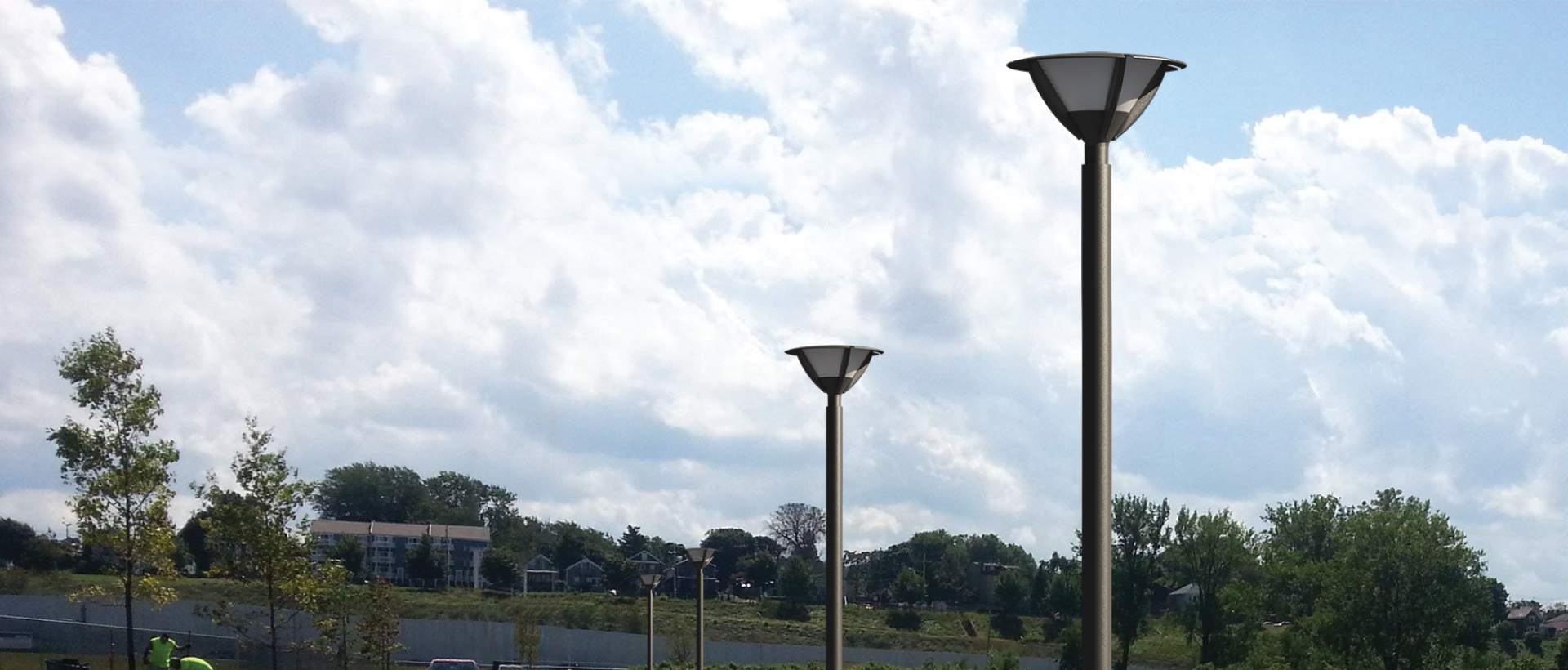

Illuminating parks,Gardens,Commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated Black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

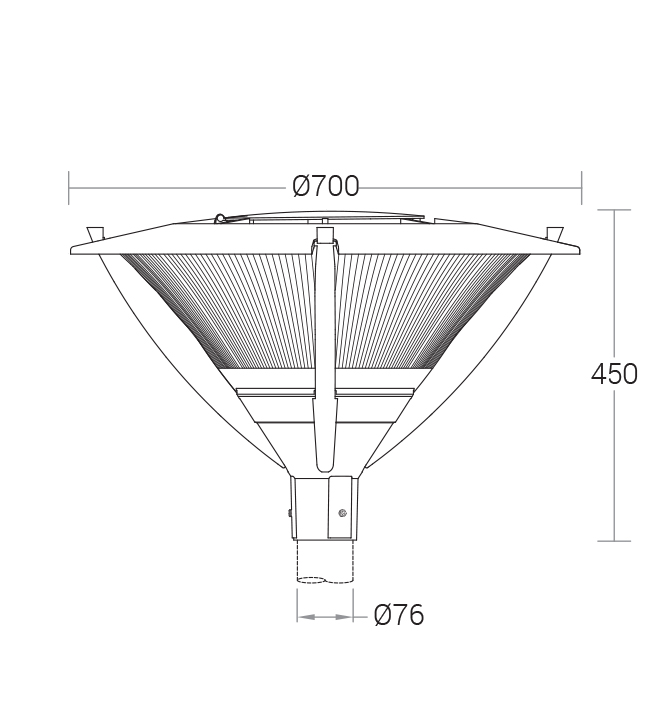

KL-502730W LED 2700K,3000K,4000K,5700K, Reeded Clear AcrylicØ700 x 450mmD3
KL-5027-BAsym-WW.IES
KL-5027-BAsym-WW.PDF
5027.pdf
