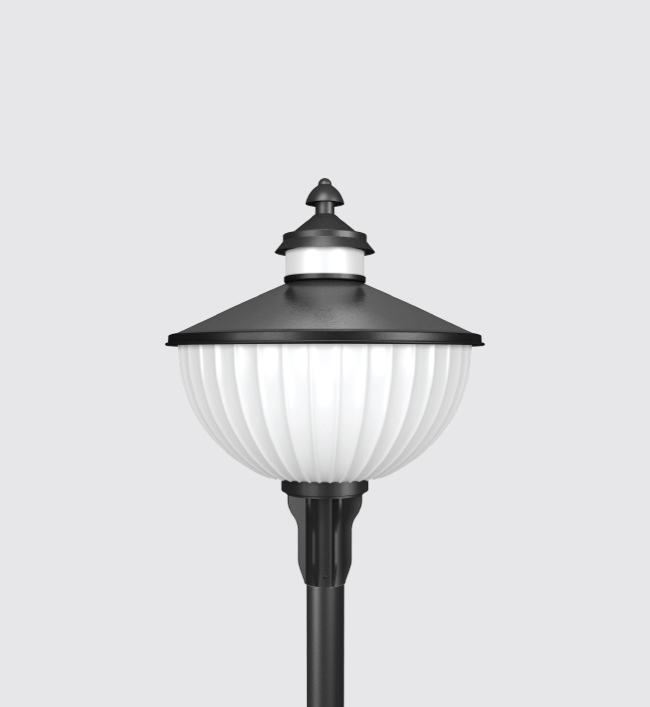

Prince Midi
An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice with symmetrical and glare free light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover with circular capping spacer and ventilating knob.
• Lamp compartment encased in non-yellowing translucent UV stabilised perpex prism acrylic diffuser.
• Luminaire integrated with 27W LED.
• EPDM rubber gasket.
• Turn type polycarbonate locking system for easy maintenance.
• Die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4985-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Elegance, Functionality.
• Environmental friendly.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application

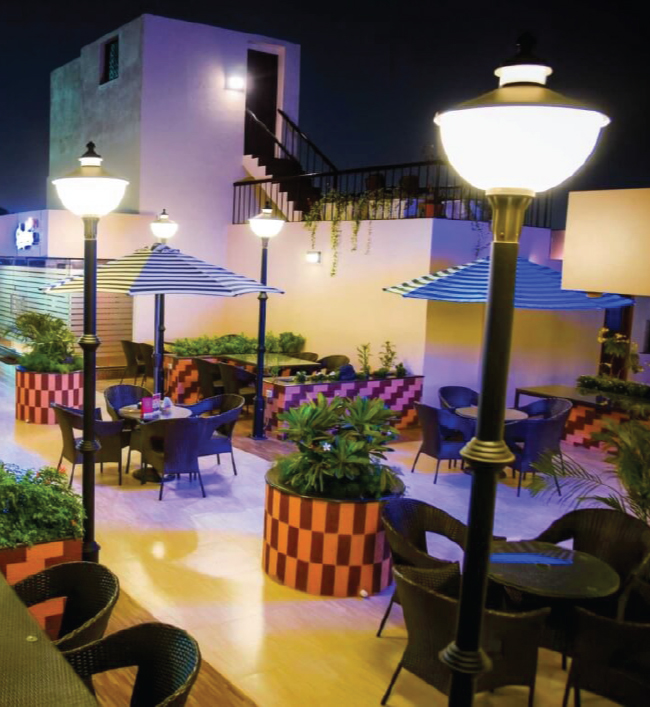

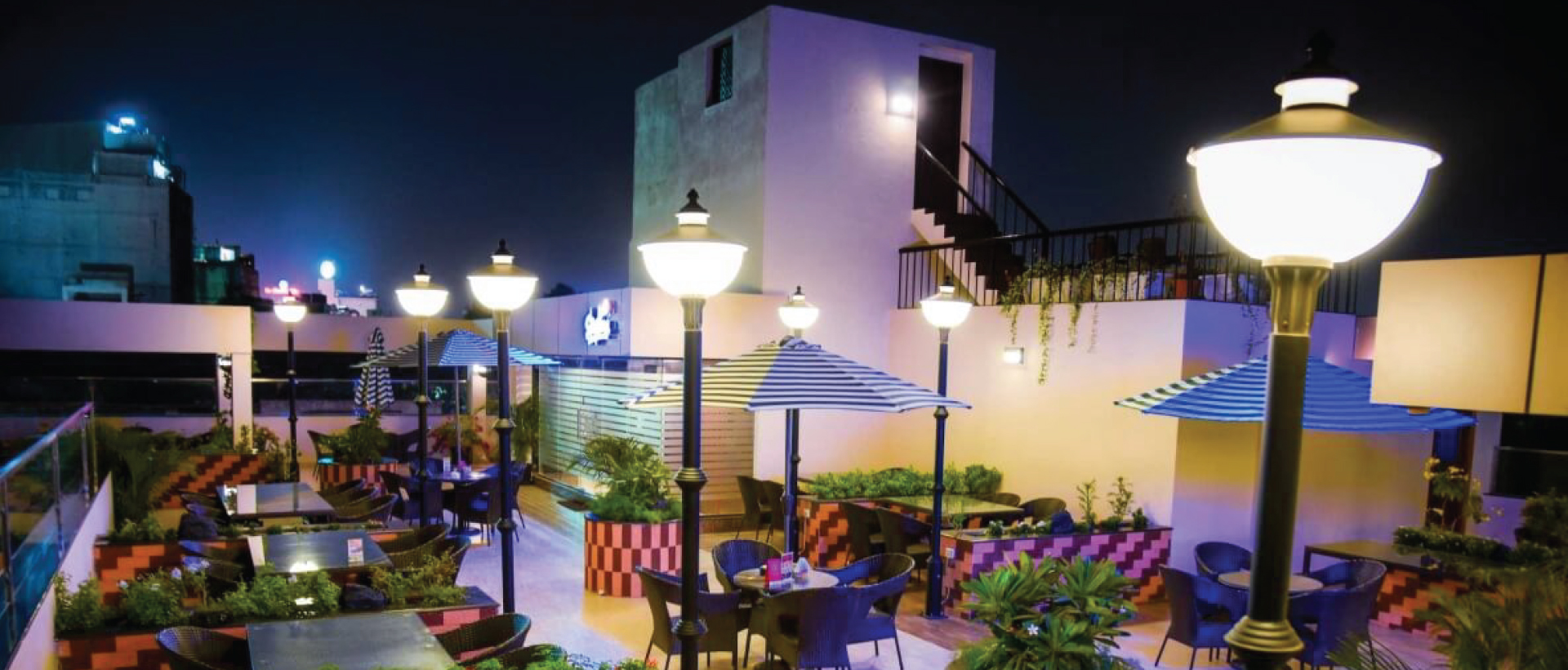

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

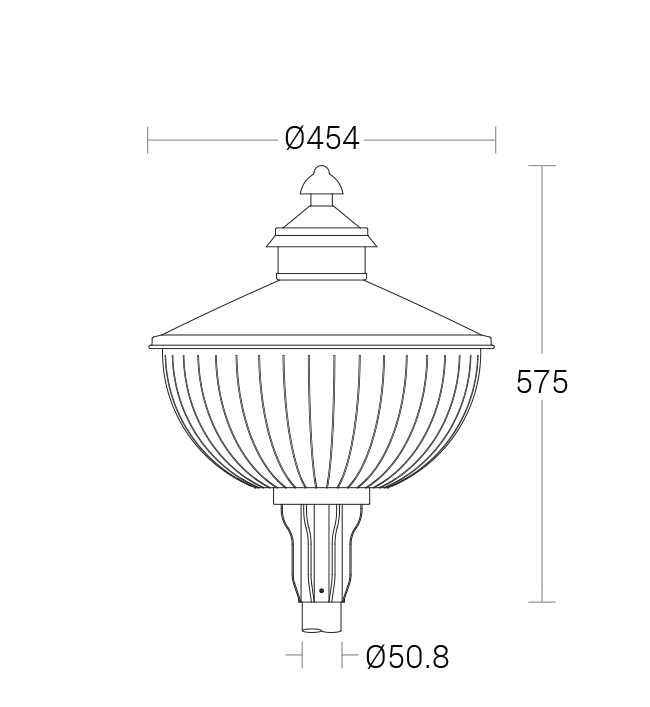

KL-498527W LED WW,CW,NW, Translucent AcrylicØ454 x 575mmD14985.pdf
KL-5088E27 Holder (Max.17W LED / 23W CFLE), Translucent AcrylicØ454 x 575mmD1
