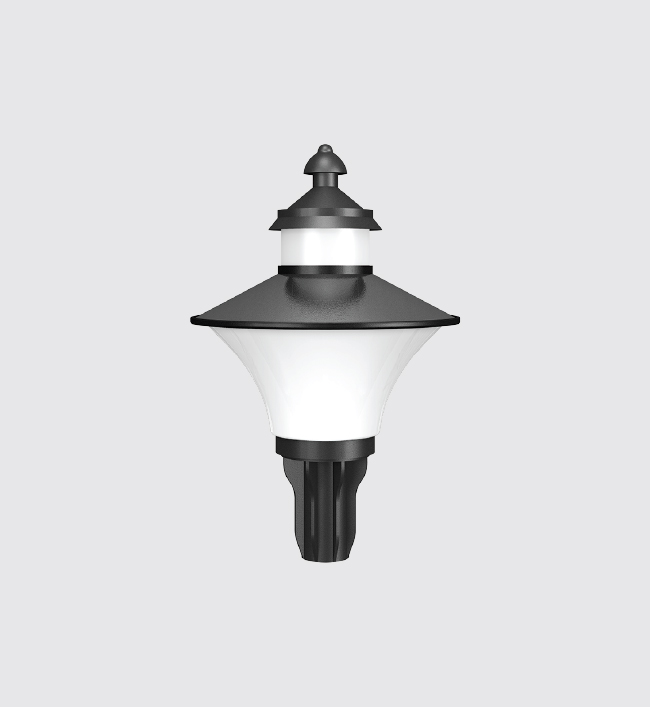

Light House Mini
An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover with circular capping spacer and ventilating knob.
• Lamp compartment encased in non-yellowing translucent UV stabilised acrylic diffuser.
• EPDM rubber gasket.
• Turn type polycarbonate locking system for easy maintenance.
• Die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Prewired with E27 holder and suitable for operation on 240V, 50Hz single phase ac supply.

Product Benefits
• Elegance, Functionality.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application

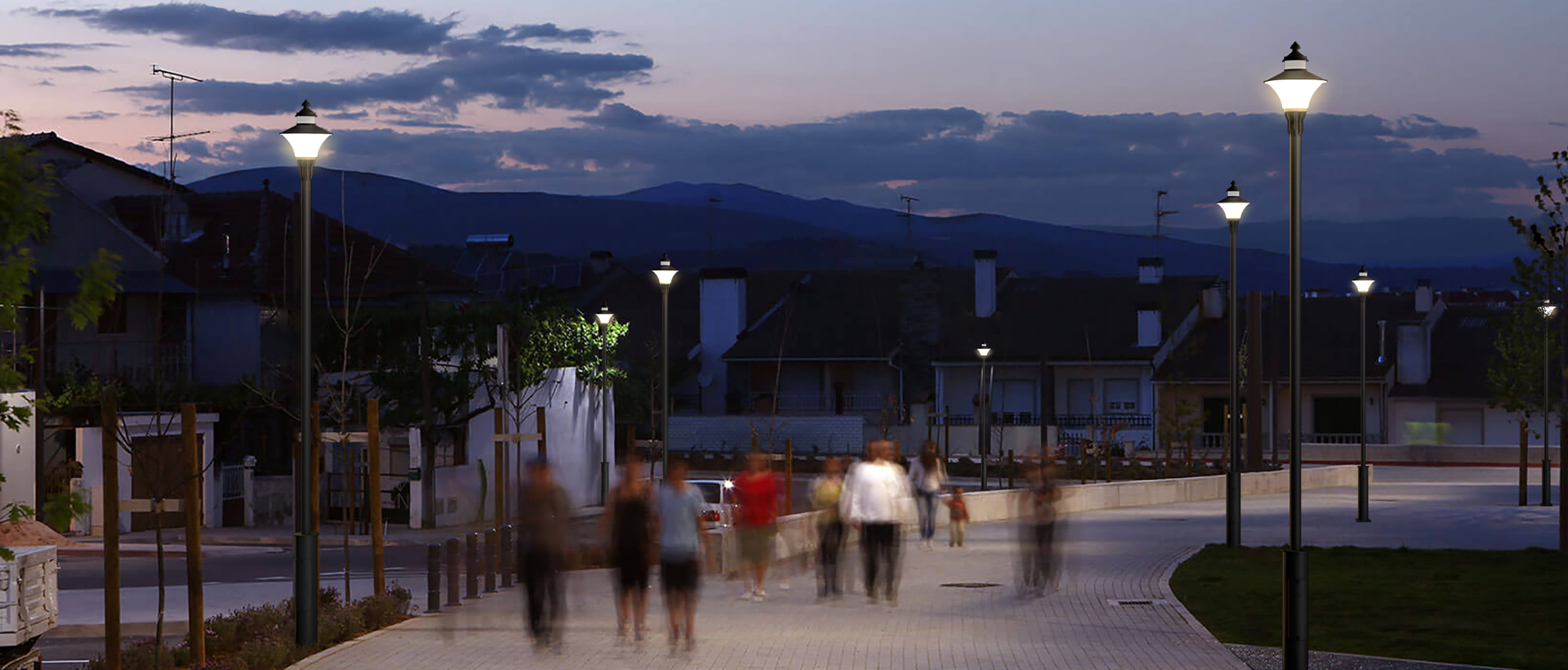

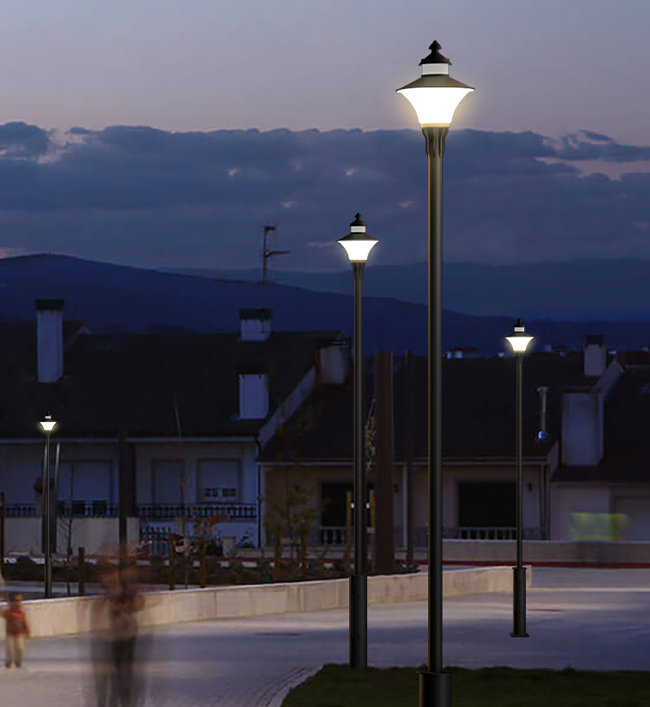

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

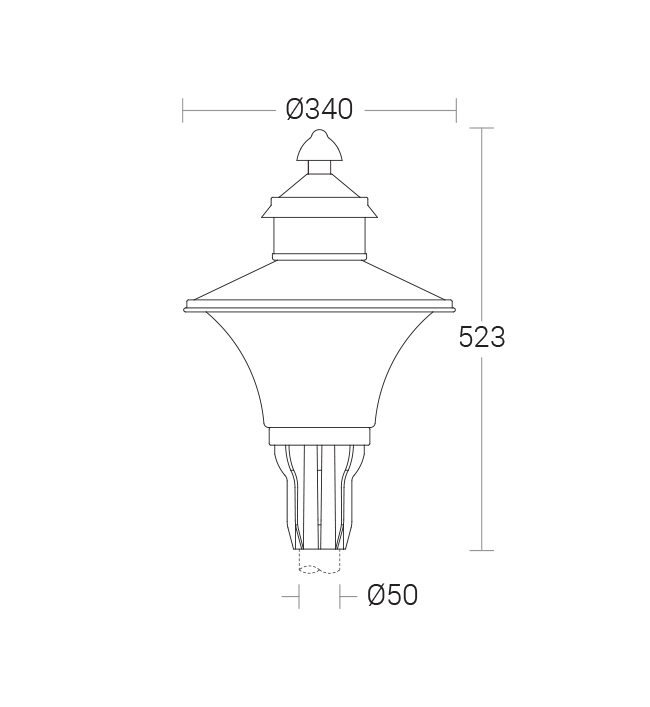

KL-5071E27 Holder (Max.13W LED / 20W CFLE), Translucent AcrylicØ340 x 523mmD1
