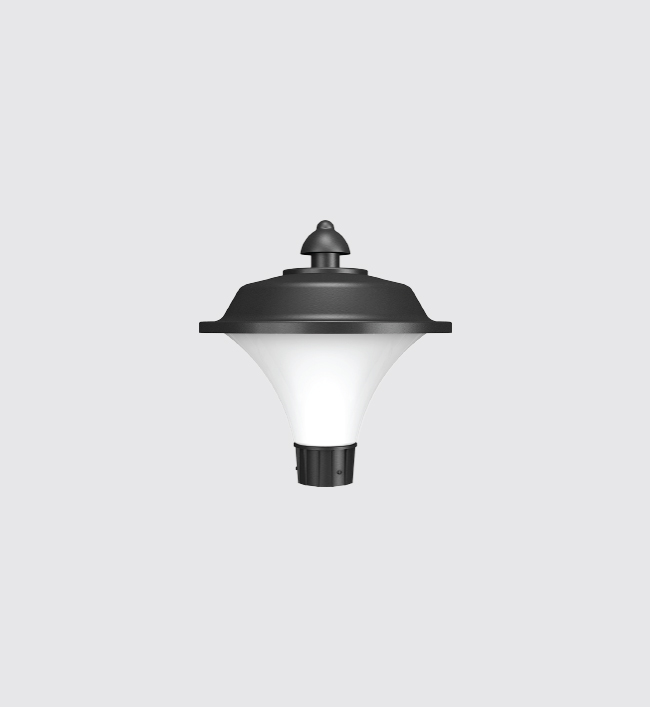

Conic
An elegant and efficient lantern with translucent diffuser provide a unique, comfortable light choice with symmetrical light distribution. Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire comprises of spun aluminium top cover with specially designed vent cap.
• Lamp compartment encased in non-yellowing translucent UV stabilised acrylic diffuser.
• EPDM rubber gasket.
• Cast aluminium alloy base of low copper content for effective corrosion resistance.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Prewired with E27 holder and suitable for operation on 240V, 50Hz single phase ac supply.

Product Benefits
• Elegance, Functionality.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application
Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

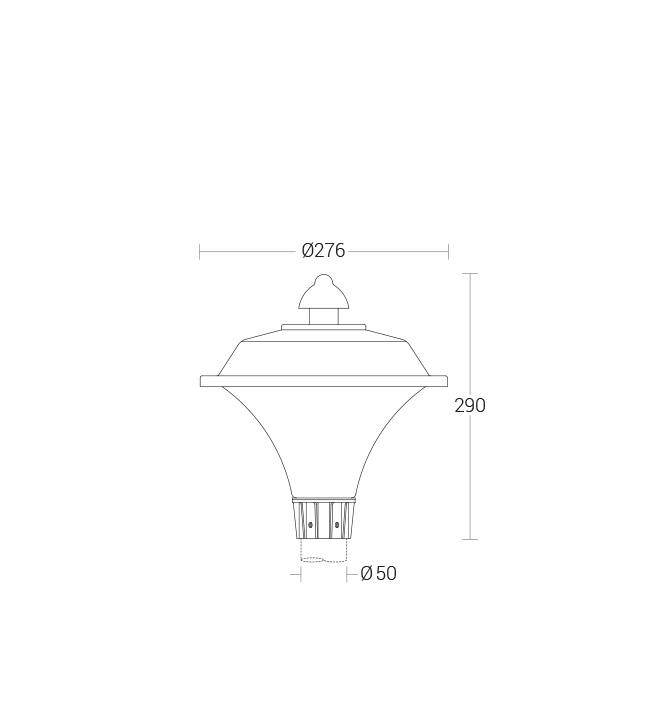

KL-6803E27 Holder (Max. 13W LED / 11W CFLE), Translucent AcrylicØ276 x 290mmD1
