Wall Crescent
Surface mounted range of LED wall lights are a perfect fit for varied outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.Aesthetically designed sturdy construction ensures a long life against all weather condition, maintaining initial performances through the lifetime of the installation.

Product Description
• Luminaire made of die-cast aluminium and non corrosive SS fasteners.
• Fully shielded light source for up down lighting effects.
• Clear toughened glass diffuser.
• Luminaire integrated with 40W LED.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-3776-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

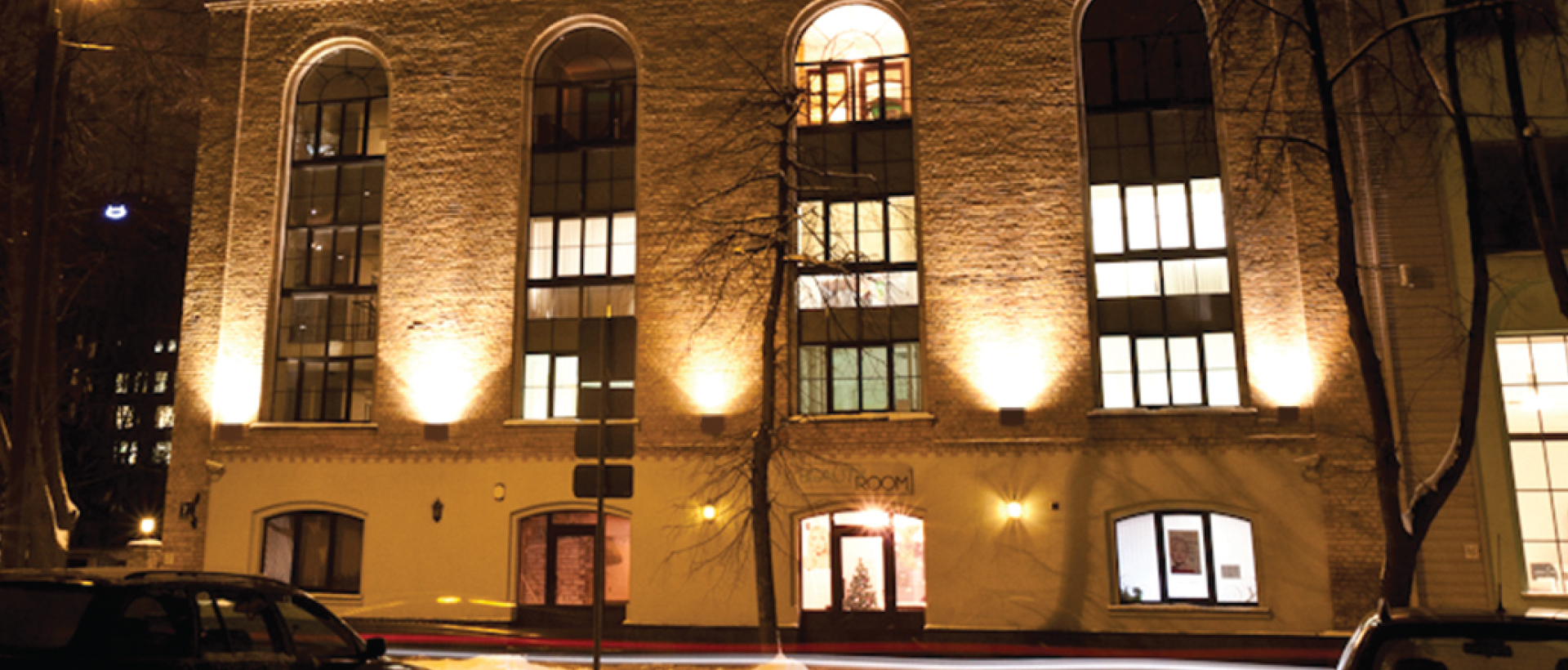

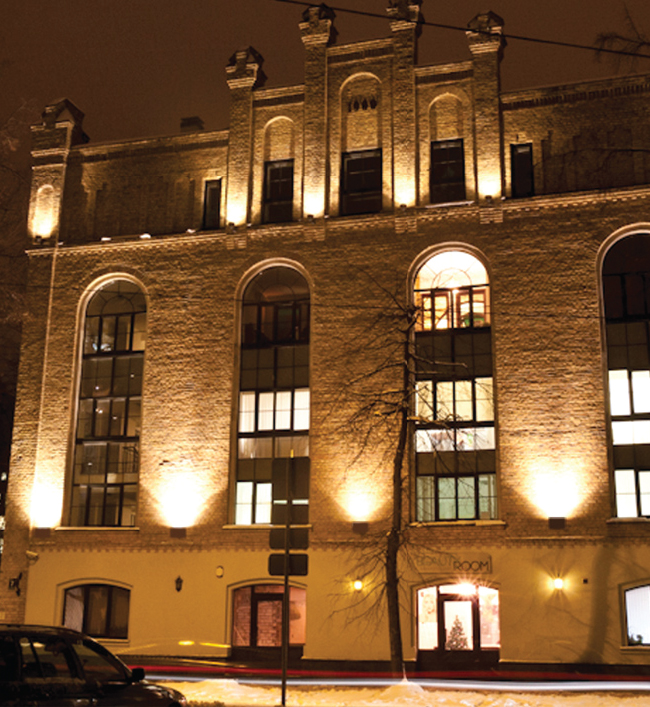

Building facade,Commercial centres,Passages,Walkways,Structures,Pathways in residential buildings & Office Complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

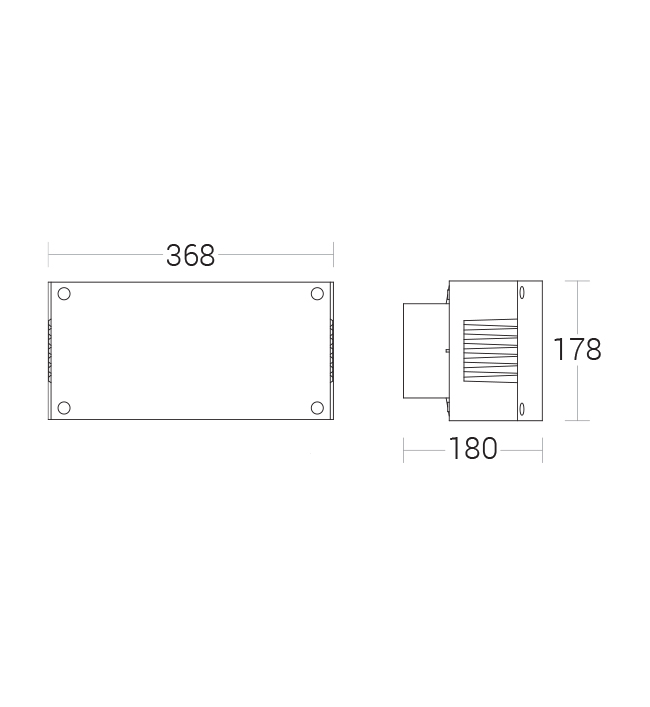

KL-37761 x 40W LED WW,NW,CW BA:Type II, Clear Toughened Glass368 x 180 x 178mm3776.pdf
KL-37772 x 40W LED WW,NW,CW BA:Type II, Clear Toughened Glass368 x 180 x 178mm3777.pdf
