Jado 30 Series

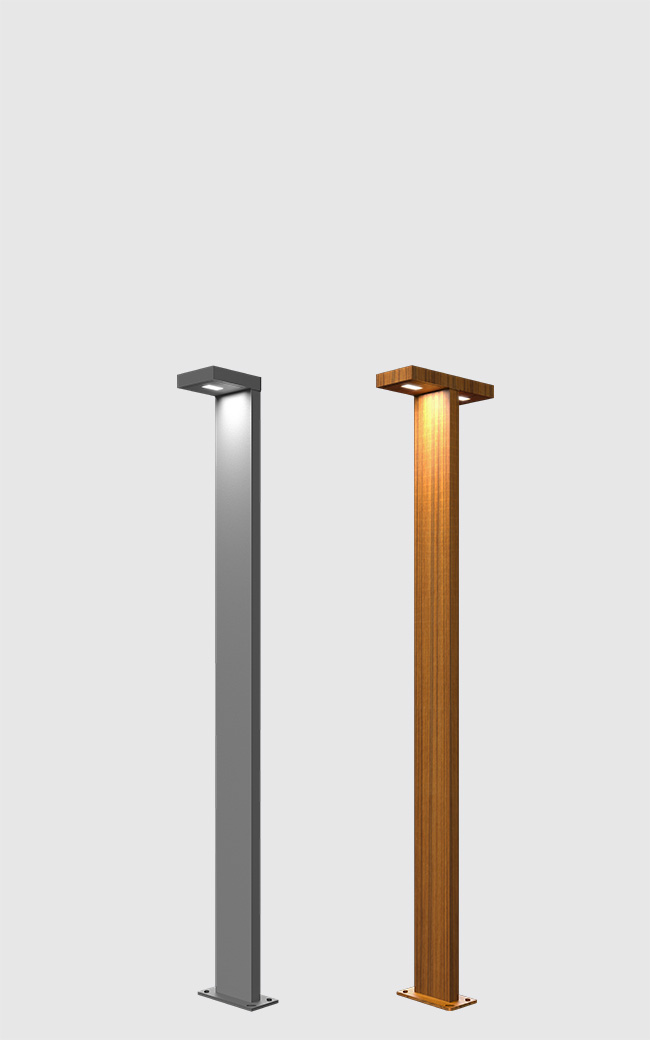

A decorative column light designed with single / double sided light output to provide soft, flat beam light distribution. These luminaries offer shielded glare free illumination on ground surface. Clean Lines and pure form are the underlying elements in this series of column light.

Product Description
• Luminaire body made of rectangular extruded aluminium tube (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• MS mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.
• No Loop-in / Loop-out arrangement
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4561-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant, Robust design
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

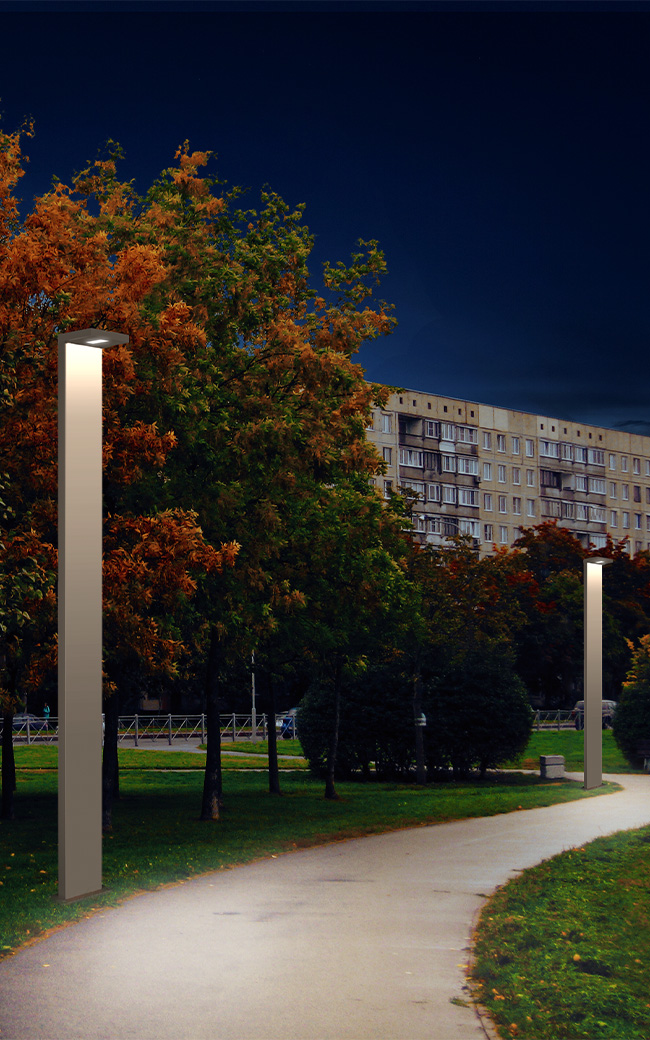

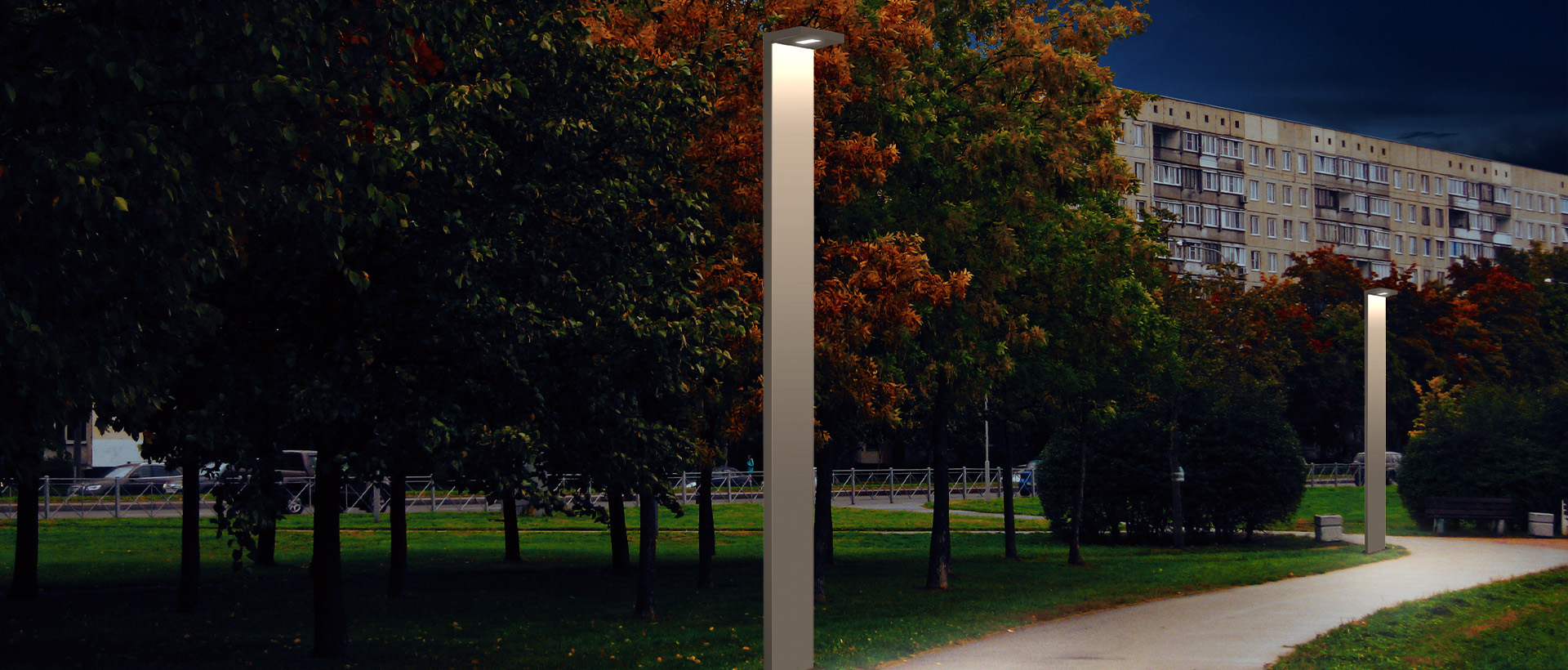

Suitable for Private & Public areas, Illuminating Driveways, Pathways, Building surrounds, Entrances, Squares & Gardens, Promenades

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

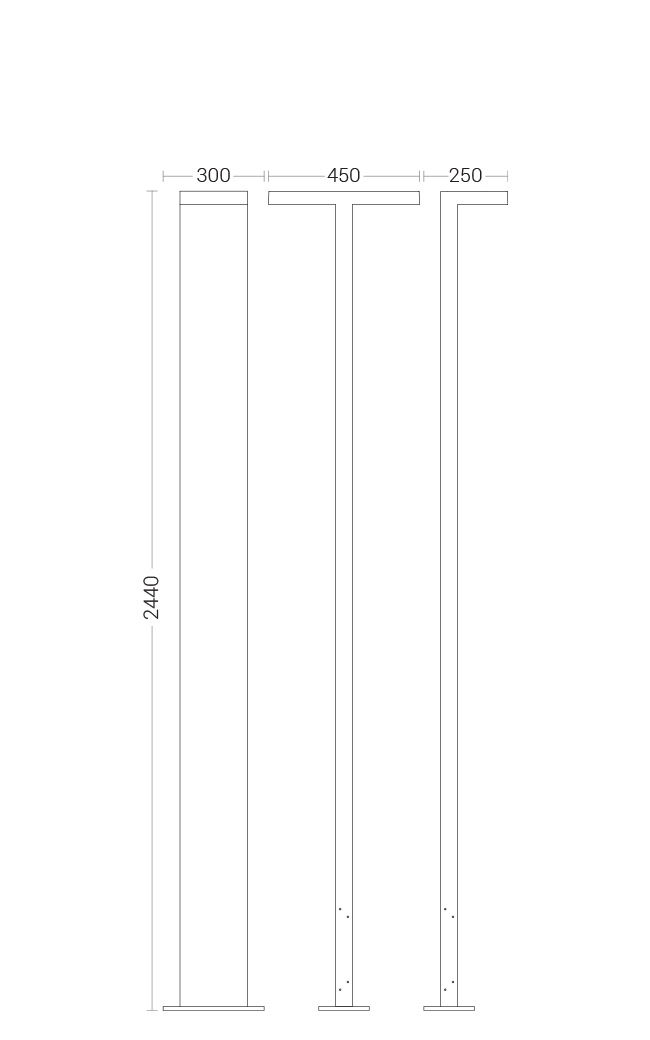

KL-456230W LED 3000K,4000K,5700K, Polycarbonate Optical Lens300 x 450 x 2440mm4562.pdf
KL-456130W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens300 x 250 x 2440mm4561.pdf
