Spark Mini
The Spark Mini pathway luminaire transcends the realm of simply providing illumination. It boasts an innovative design that seamlessly integrates with its surroundings, fostering a visually cohesive environment. Unlike purely functional pathway lights, the Spark Mini enhances the aesthetic appeal of outdoor spaces.
By minimizing light trespass or spillover, the Spark Mini promotes energy efficiency and reduces light pollution.

Material
Body : Extruded aluminium alloy (grade 6063)
Impact Protection : IK10
Ingress Protection : IP65
Lens : Polycarbonate optical lens
Mounting : Gravity die-cast aluminium mounting clamp suitable for mounting on 88.9mm OD pole.

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV

Product Configurations
Wattage : 24W / 48W
Light Distribution : Type III Medium
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application

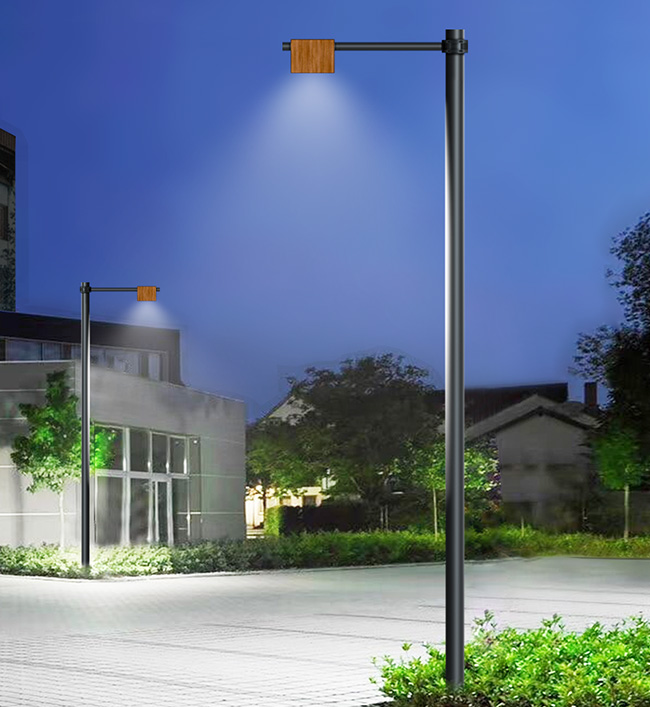

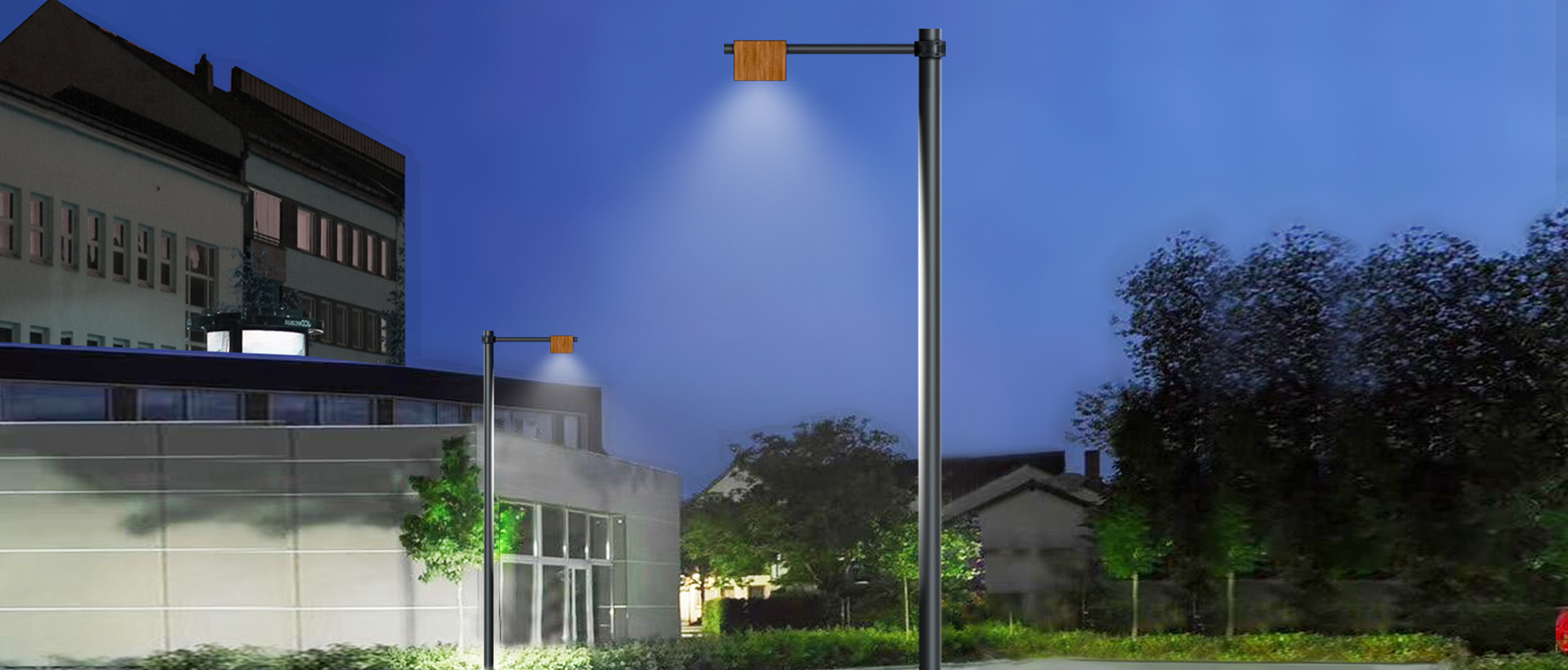

Illuminating parks, Gardens, Private driveways, Pathways in Residential buildings.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black & Teak
RAL 9007 Grey aluminium & Teak
RAL 7016 Anthracite grey & Teak
Graphite grey & Teak

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

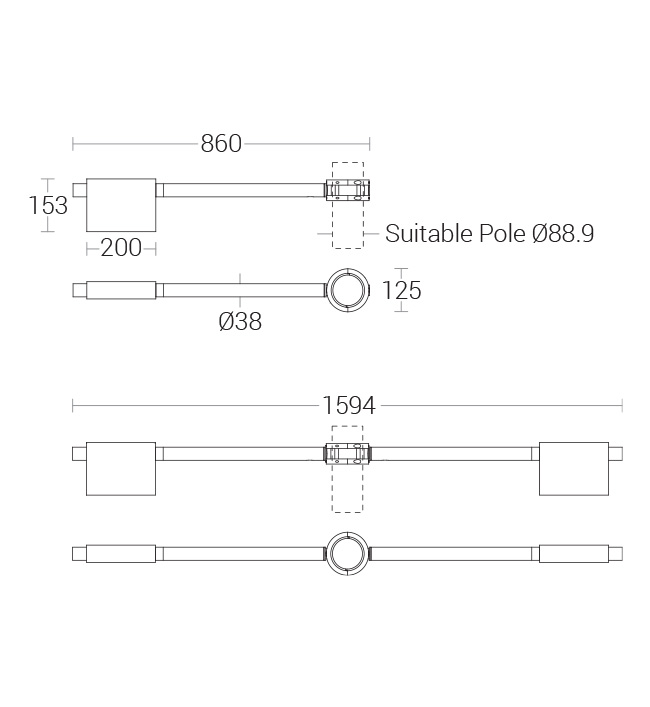

KL-445324W LED 2700K,3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical LensSA : 860 x 125 x 153,DA : 1594 x 125 x 153mmD26
KL-4453-BATYPEIII-3000K.IES
KL-4453-BATYPEIII-3000K.PDF
4453.pdf
