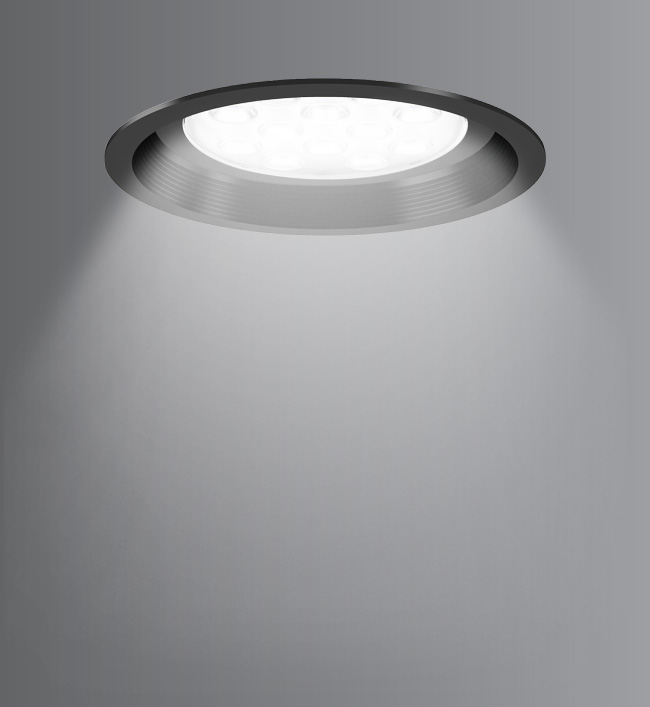

Vela 2.0
High performance robust LED recessed celling down light with integral power supply unit for outdoor. The availability of optical options with symmetrical narrow, medium, and wide beam distributions ensures versatile lighting solutions tailored to various needs. This combination of high performance and robust design makes it suitable for demanding outdoor environments where reliability and efficiency are paramount.

Material
Body : Pressure die-cast aluminium alloy
Impact Protection : IK10
Ingress Protection : IP66
Lens : Polycarbonate optical lens
Gasket : Silicone compression gasket

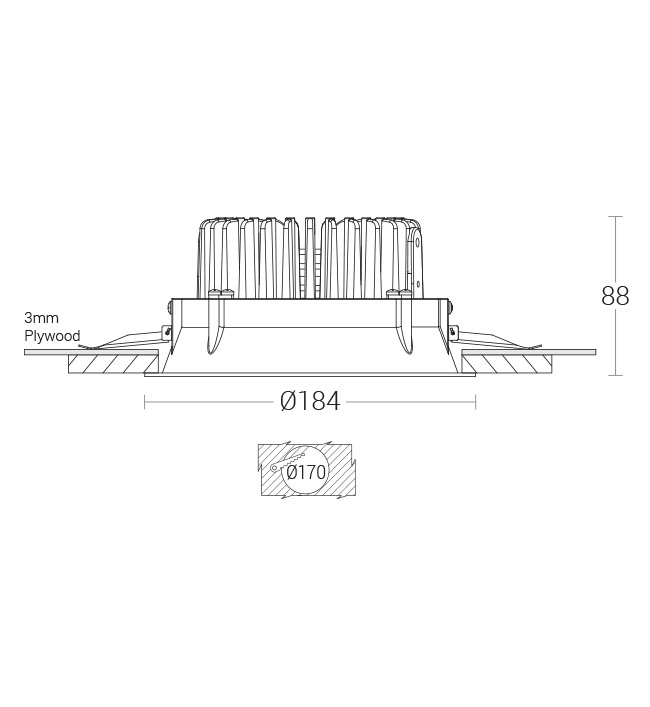

Mounting : Recessed - COD Ø170

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV

Product Configurations
Wattage : 50W
Beam Angle : 10° / 28° / 45°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application
Retail Sector, Commercial & Business centers, Airports, Parking lots, Educational institutes, Hospitality & Industrial sector, Entrance foyer.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
RAL 9016 Traffic white

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-432950W LED 2700K,3000K,4000K,5700K BA:10°,28°,45°, Clear Polycarbonate Optical LensØ184 x 88mmKL-4329.IES
KL-4329.IES
KL-4329.IES
KL-4329-BA28D-2700K.IES
KL-4329.IES
KL-4329.IES
KL-4329.IES
KL-4329-BA10D-5700K.IES
KL-4329.IES
KL-4329.PDF
KL-4329.PDF
KL-4329.PDF
KL-4329-BA28D-2700K.PDF
KL-4329.PDF
KL-4329.PDF
KL-4329.PDF
KL-4329-BA10D-5700K.PDF
KL-4329.PDF
4329.pdf
KL-4329.txt
