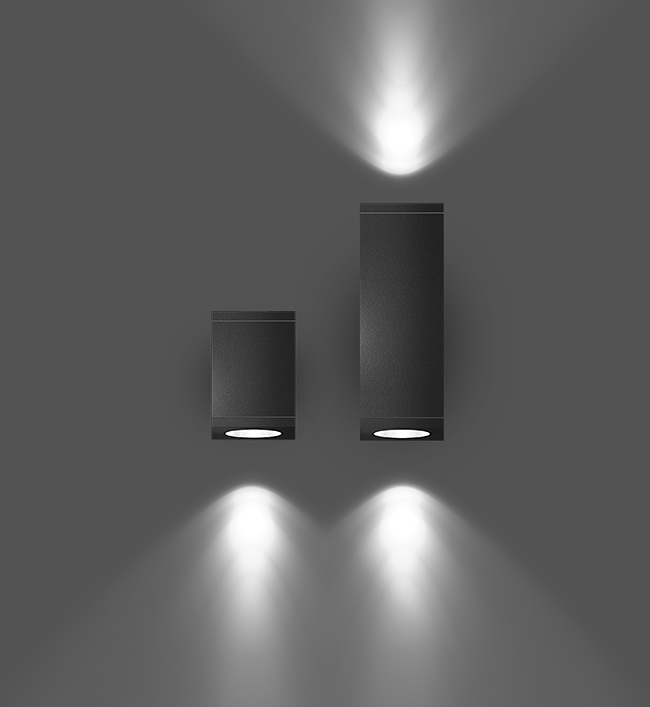

Wall Quad Mini
Facade luminaires with Hybrid optics,downwards for ambient lighting and orientation,upwards to accentuate architectural elements,Precise lighting for where it is required.Aesthetically shaped wall mounted luminaire with fully shielded light source for striking light effects.

Product Description
• Luminaire made of pressure die cast aluminium,extruded aluminium & non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Hybrid optics with lens & reflector combination for higher efficiency,lower optical losses with optimum glare suppression.
• Die Cast aluminium base for easy installation onto the wall / column.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-3639-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K (CW on request).

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation with low maintenance.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

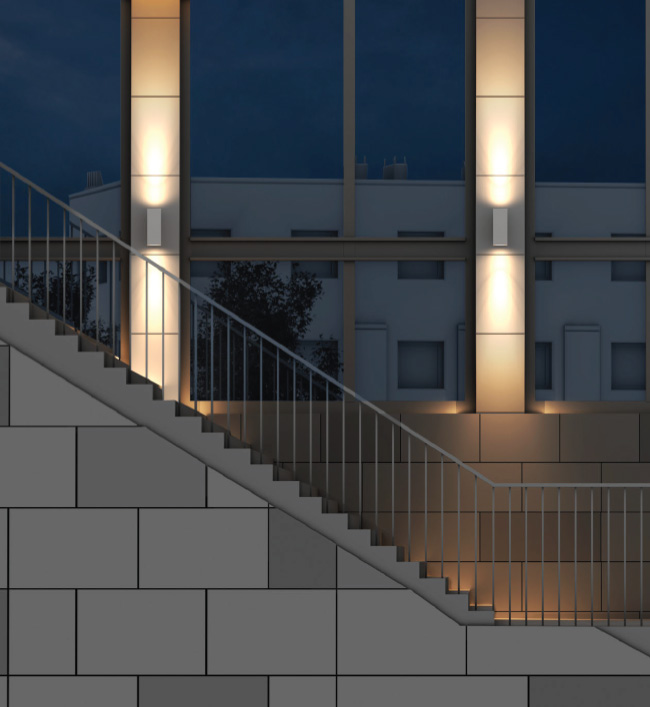

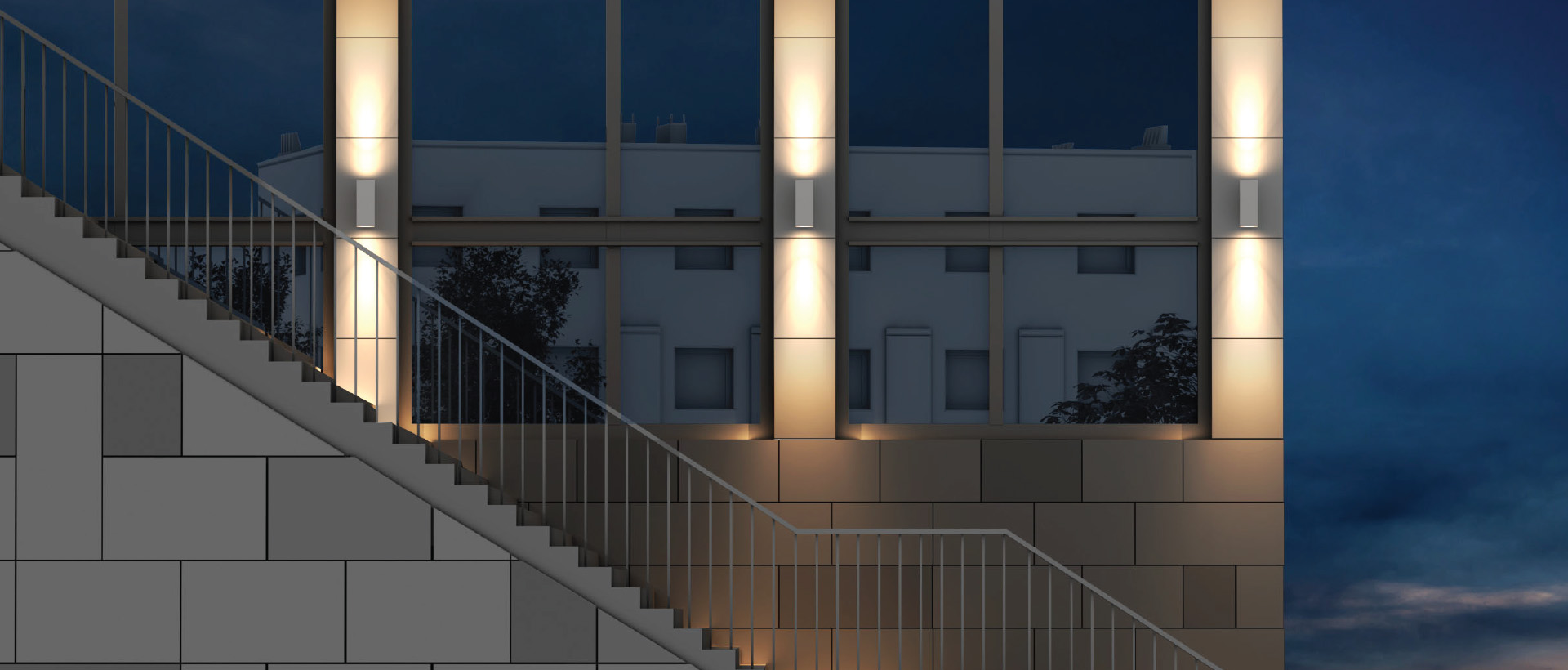

Residential,Building facade,Commercial centres,Passages,Pathways,Sculptures and Structures.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

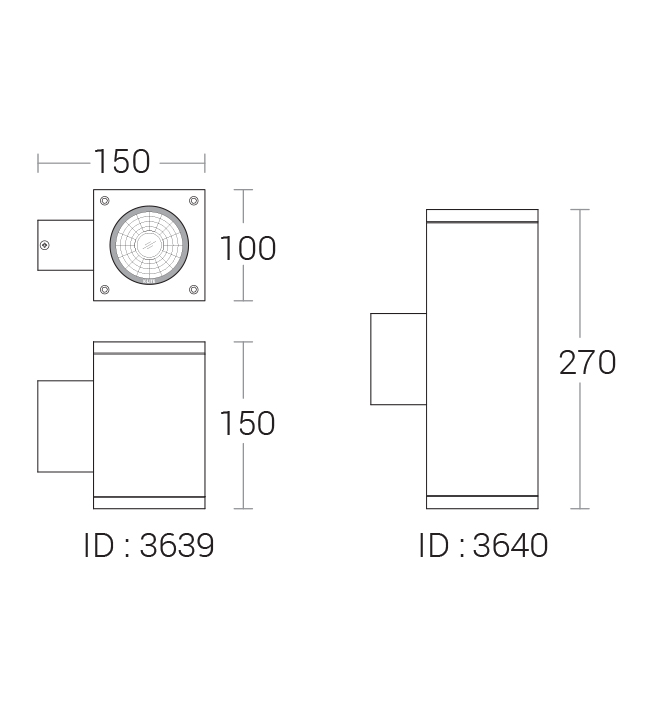

KL-36391 x 18W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened Glass150 x 100 x 150mmW32
Detailed Foundation Drawing
KL-3639-BA25°-WW.IES
KL-3639-BA25°-NW.IES
KL-3639-BA40°-WW.IES
KL-3639-BA15°-WW.IES
KL-3639-BA15°-NW.IES
KL-3639-BA40°-NW.IES
KL-3639-BA25°-WW.PDF
KL-3639-BA25°-NW.PDF
KL-3639-BA40°-WW.PDF
KL-3639-BA15°-WW.PDF
KL-3639-BA15°-NW.PDF
KL-3639-BA40°-NW.PDF
3639.pdf
KL-3639.txt
KL-36402 x 18W LED 2700K,3000K,4000K,6500K BA:25°,40°,15°, Clear Toughened Glass150 x 100 x 270mmW32
Detailed Foundation Drawing
3640.pdf
KL-3640.txt
