Kayal
“Kayal” pathway luminaire,is an innovative design options to provide visual integration with the environment.High Brightness,LED Light source do not pose any environment risks.Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.Product offered asymmetrical light distribution.

Product Description
• Luminaire made of die cast aluminium with extruded aluminium pipe & non corrosive SS fasteners.
• Clear toughened glass.
• Luminaire integrated with 50W LED.
• Suitable for mounting on 76mm / 88.9mm OD pipe,72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4373-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Illuminating parks,Gardens,Commercial complex,Smallar Roadways,Private driveways,Pathways in Residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

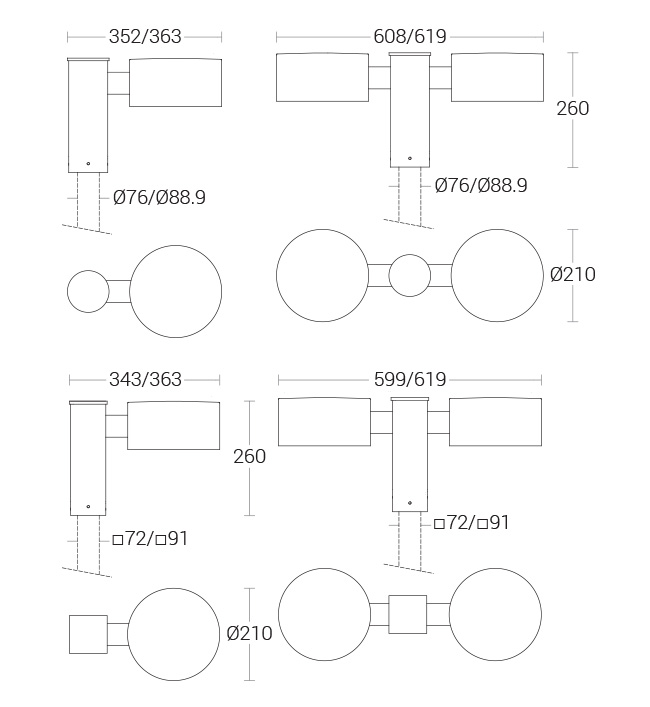

KL-4375100W LED 3000K,4000K,5700K BA:Type IV, Clear Toughened GlassD3:608xØ210x260, D26:619xØ210x260, D15:599xØ210x260, D16:619xØ210x260mmD3
D26
D15
D16
4375.pdf
KL-437350W LED 3000K,4000K,5700K BA:Type IV, Clear Toughened GlassD3:352xØ210x260, D26:363xØ210x260, D15:343xØ210x260, D16:363xØ210x260mmD3
D26
D15
D16
4373.pdf
