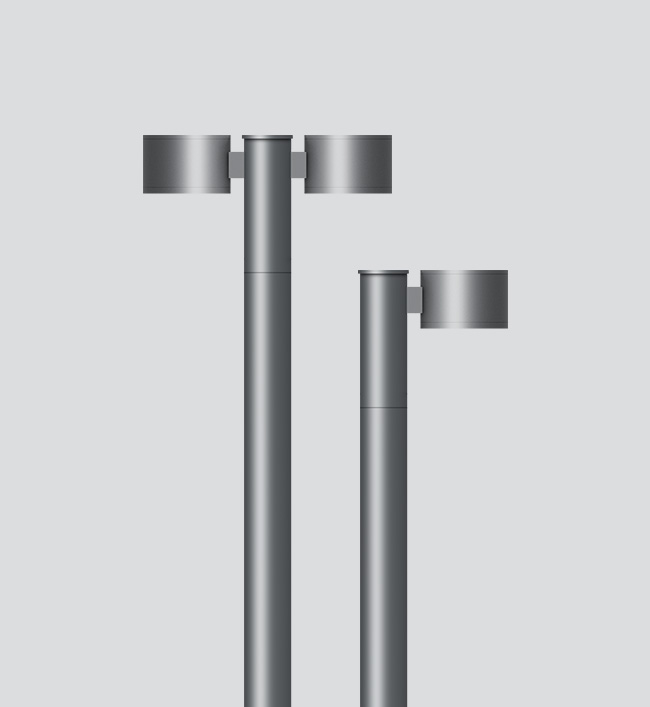

Kayal Mini
“Kayal Mini” pathway luminaire,is an innovative design options to provide visual integration with the environment.High Brightness,LED Light source do not pose any environment risks.Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.
Product offered asymmetrical light distribution.

Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 30W LED.
• Suitable for mounting on 76mm / 88.9mm OD pipe,72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4372-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

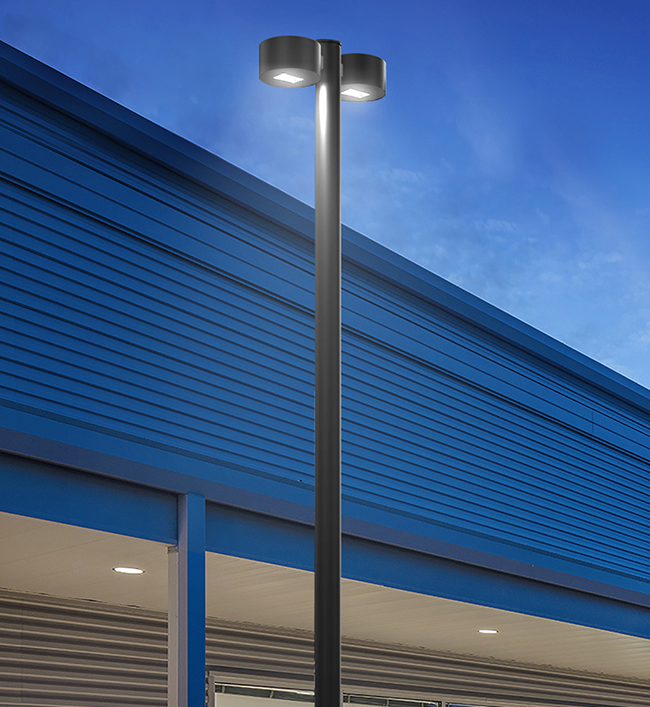

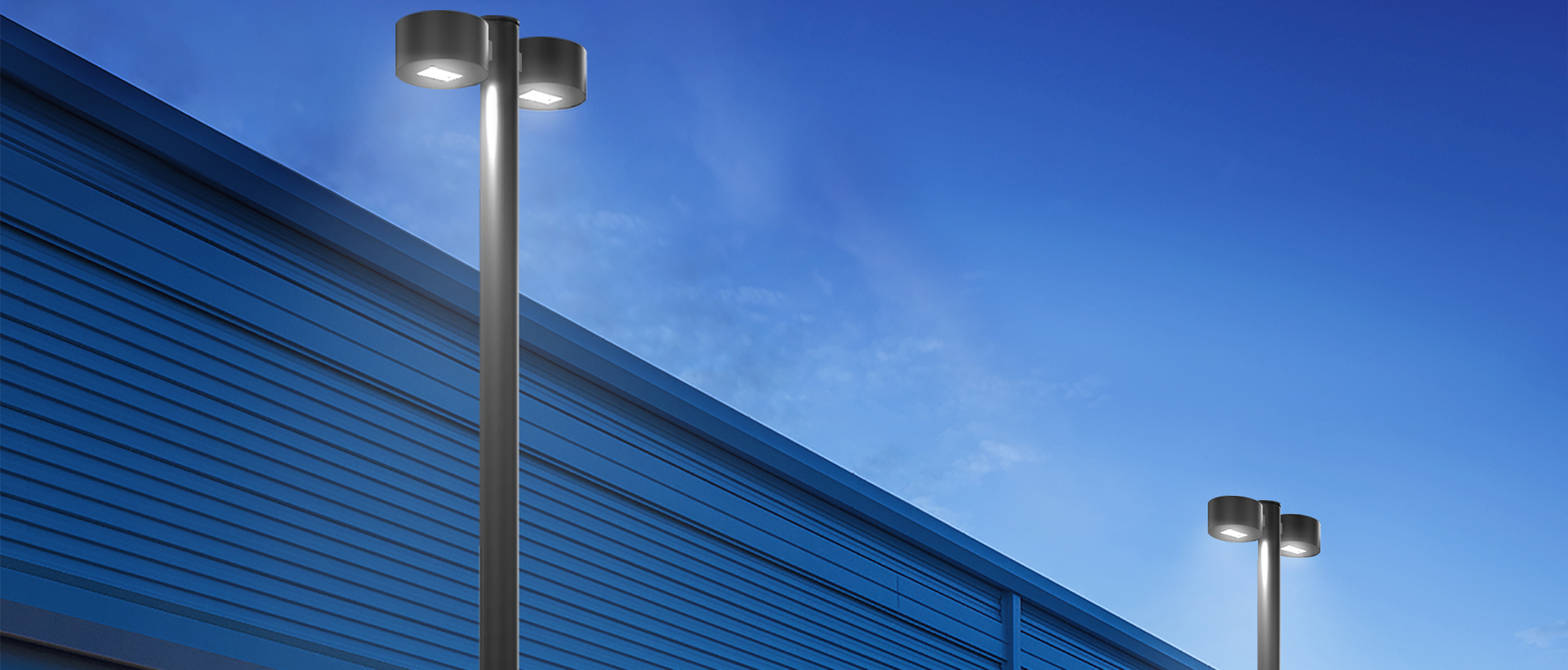

Illuminating parks,Gardens,Private driveways,Commercial complex,Pathways in Residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

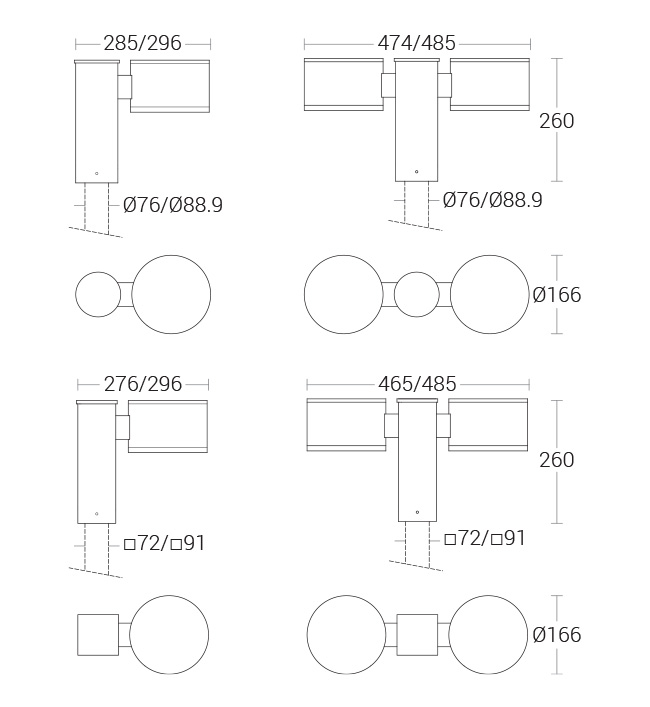

KL-437460W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical LensD3:474xØ166x260, D26:485xØ166x260, D15:465xØ166x260, D16:485xØ166x260mmD3
KL-437230W LED 2700K,4000K,5700K BA:Type II, Polycarbonate Optical LensD3:285xØ166x260, D26:296xØ166x260, D15:276xØ166x260, D16:296xØ166x260mmD3
