Cylin Midi

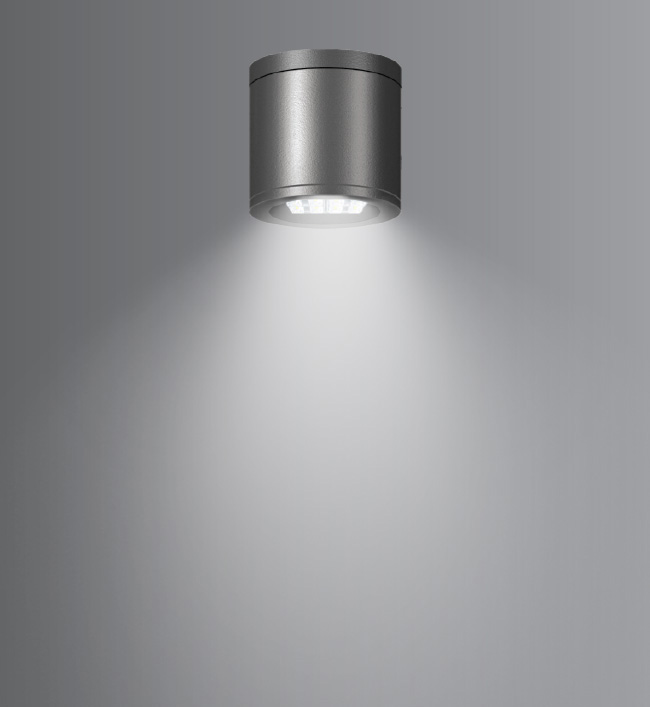

Compact and efficient ceiling mounted down lighters with various housing sizes and light output. High protection class & lumen output makes it versatile solution for both indoor & outdoor applications.

Product Description
• Luminaire made of die cast aluminium, extruded aluminium & SS fasteners.
• Clear toughened glass.
• Silicone gasket.
• Hybrid optics with lens & reflector combination for higher efficiency, lower optical losses with optimum glare suppression.
• Cast aluminium plate for surface mounting onto the ceiling.
• Surface mounting on ceiling using hardware after connecting to the
power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3629-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K (CW on request)

Product Benefits
• High luminous efficiency at reduced wattage.
• Quick & simple installation.
• Clear glass in the front with continuous silicone gasket to ensure adequate sealing.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

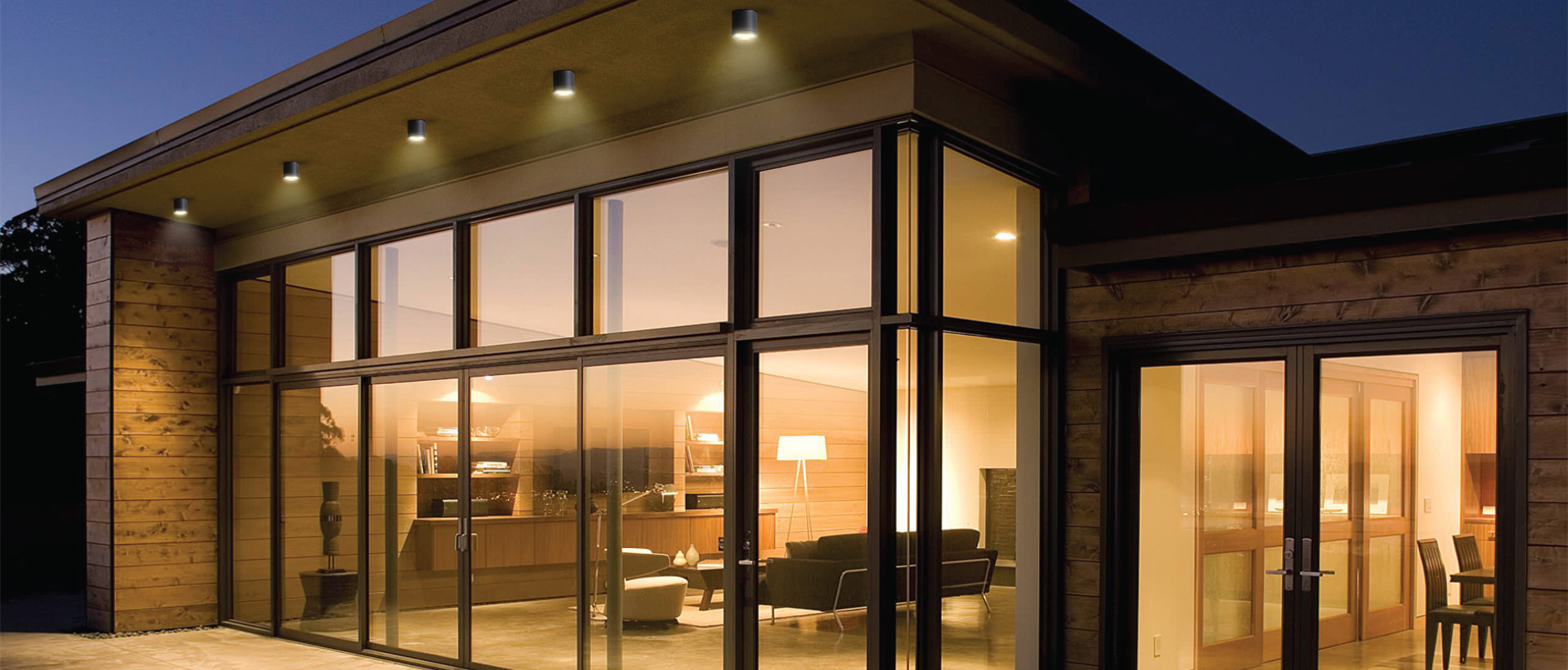

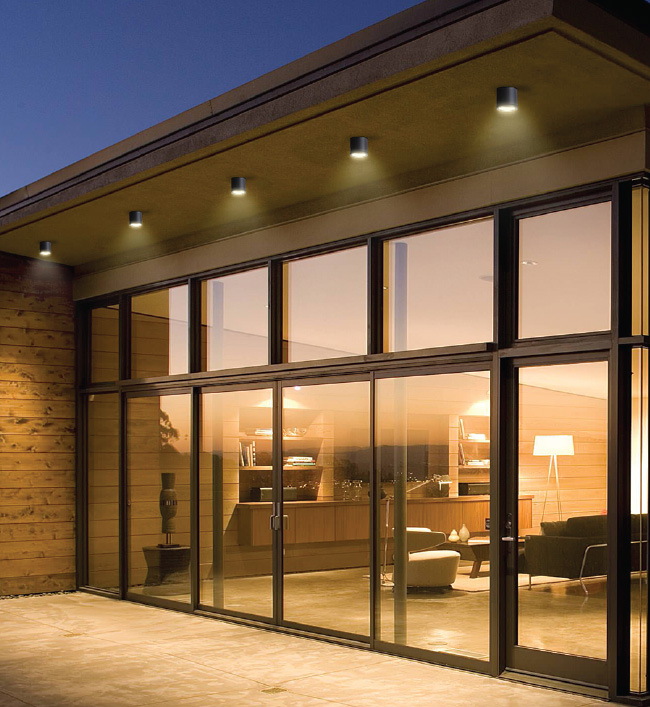

Lobbies & Foyers, Retail outlets, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black

Downloads
Catalogue Page
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description

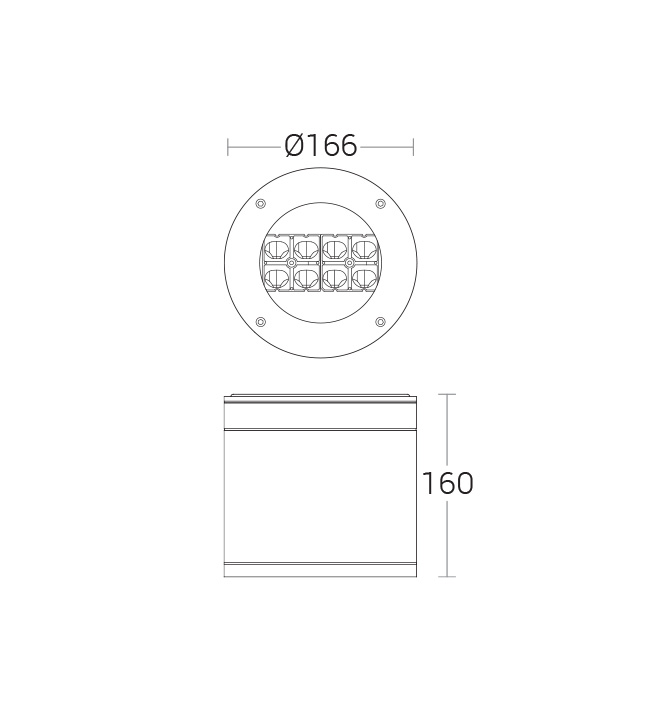

KL-362930W LED WW,NW,CW BA:Type IV, Clear Toughened GlassØ166 x 160mmKL-3629.IESKL-3629.PDF3629.pdf
KL-3629.txt
