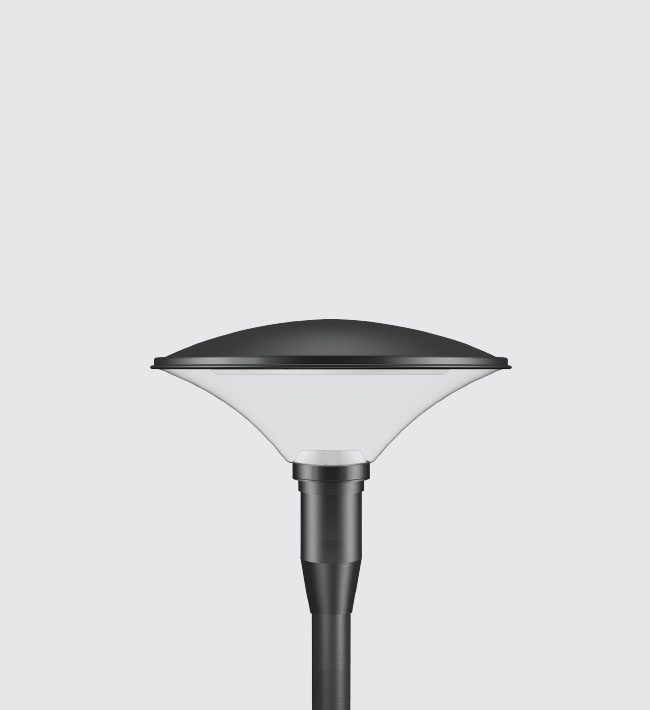

Gema
An elegant and efficient lantern with clear diffuser provide a unique,comfortable light choice with symmetrical light distribution.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.

Product Description
• The luminaire made of spun aluminium top cover and die cast aluminium base.
• Non yellowing UV stabilised clear acrylic diffuser.
• Brite aluminium reflector is profiled for improved illumination efficiency.
• Luminaire integrated with 30W LED.
• Die cast aluminium spigot base with aluminium alloy of low copper content for effective corrosion resistance.
• Suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4520-CCT (Colour Temperature)
• Available CCT : 2700K,4000K,5700K.

Product Benefits
• Elegant,Robust design.
• Environmental friendly,moisture proof,insect free.
• The diffuser contributes to the creation of ambiance and to visual comfort by reducing glare.
• Low maintenance cost.

Area of Application

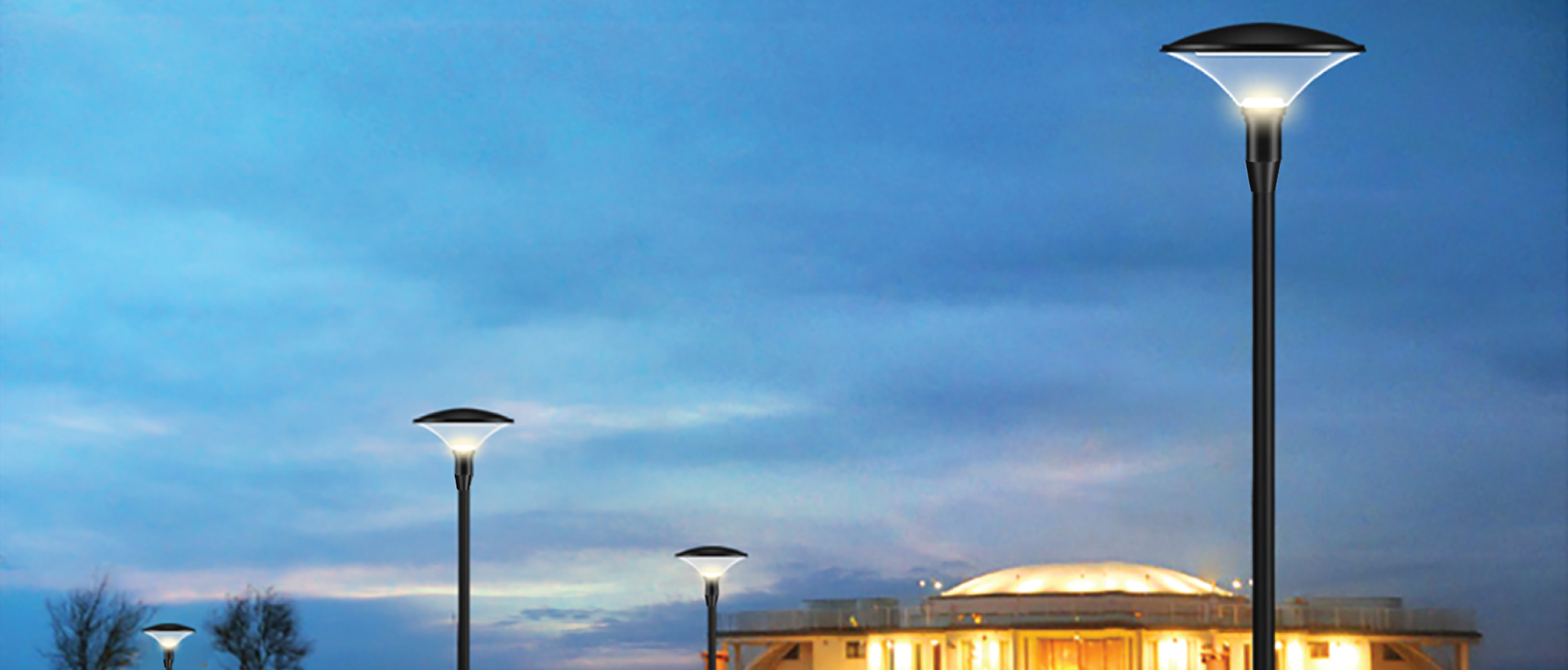

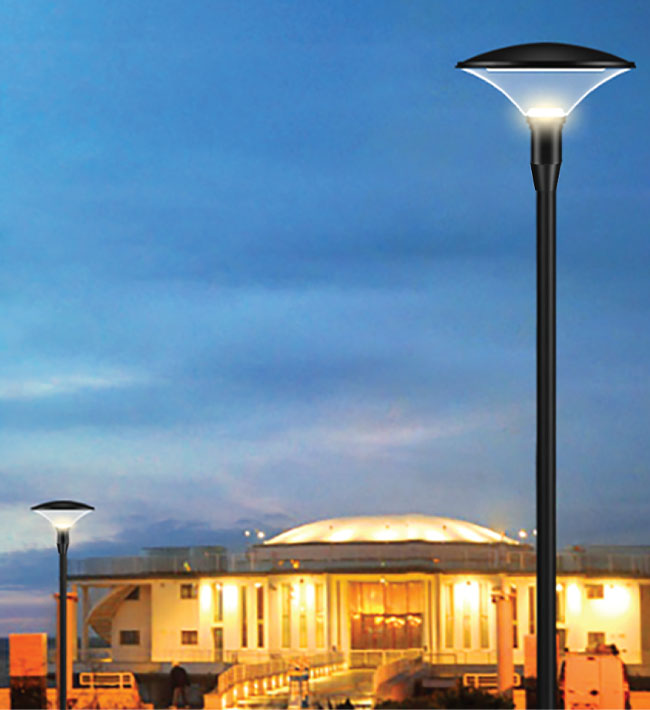

Illuminating parks,Gardens,commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

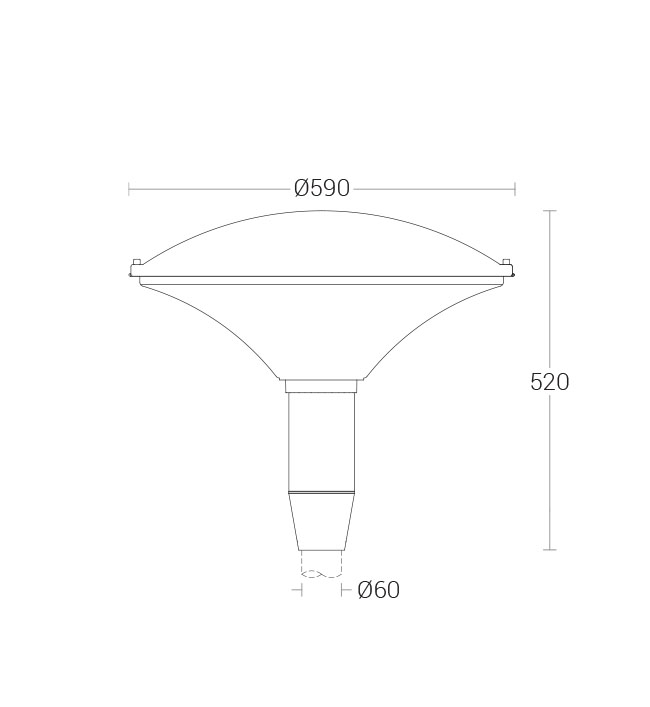

KL-452030W LED 2700K,3000K,4000K,5700K, Clear AcrylicØ590 x 450mmD2
KL-4520-BAsym-WW.IES
KL-4520-BAsym-WW.PDF
4520.pdf
