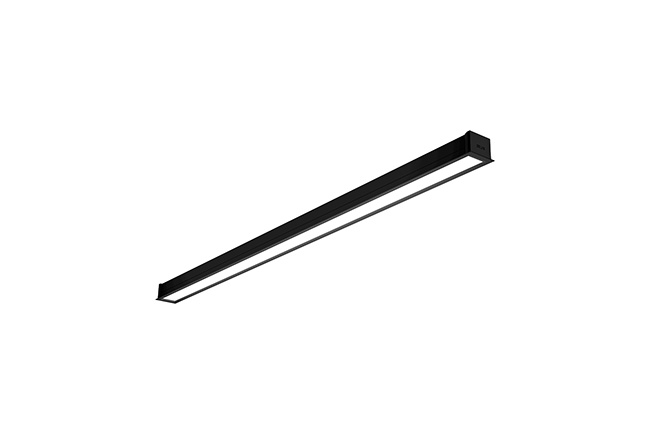

Vio Series
Vio luminaire is a versatile solution for projects that demand high quality of the lighting system and high visual comfort.The extruded aluminium housing is ideal for better thermal management.These IP65 profile for robust outdoor applications.

Product Description
• Luminaire made of extruded aluminium for better thermal management.
• Translucent polycarbonate diffuser for optimum optical performance.
• Available in 110° beam angle.
• Specially designed potted constant current driver with built-in surge protection.
• Cable entries for through-wiring of mains supply cable.
• Integrated driver for easy maintenance and replacement.
• CRI (Ra) : >80.
• Suitable for operation on 240V,50Hz single phase ac supply.
• Ordering guide : KL-3543-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Attractive high quality housing.
• Environmental friendly.
• Designed for easy maintenance operation to reduce maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

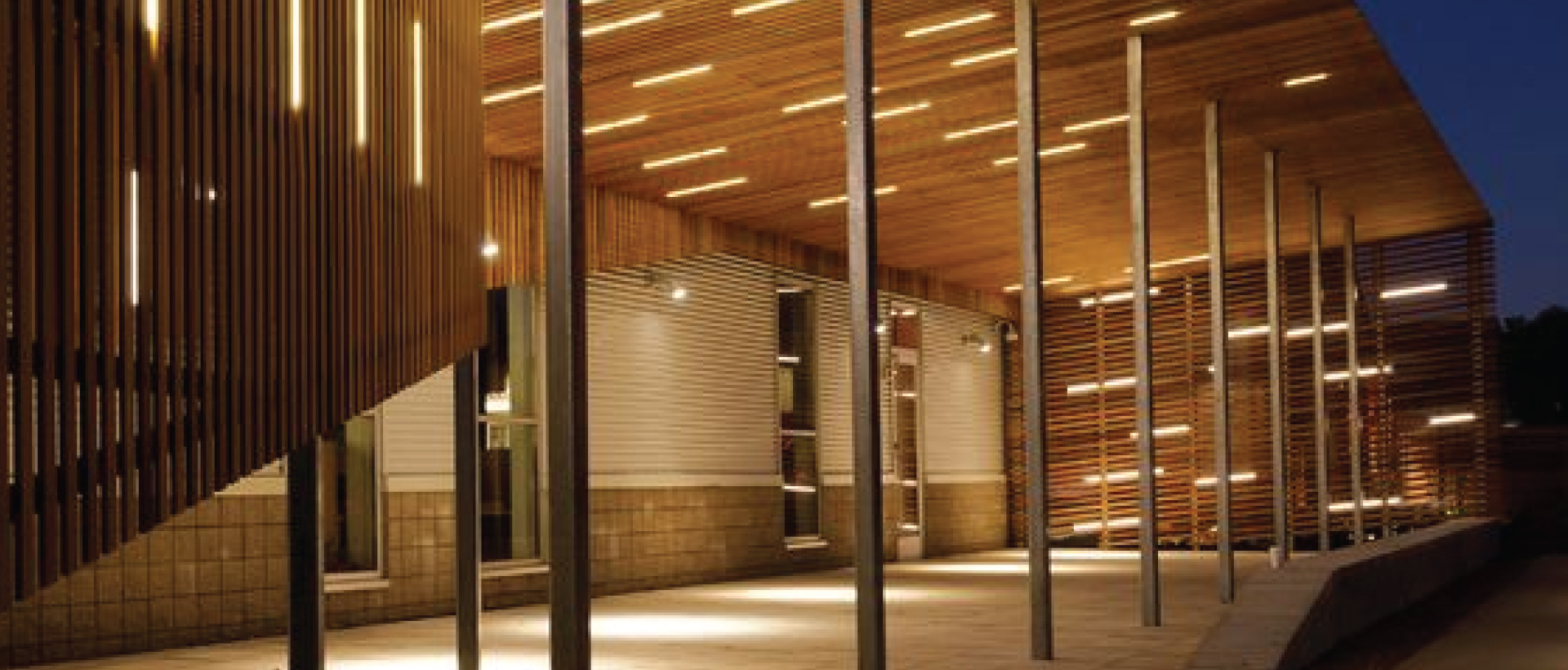

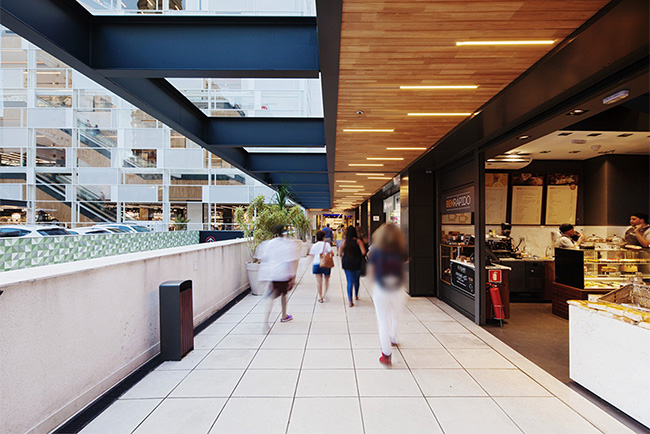

Area of Application
Public / Under ground car parkings,Petrol Bunk,Hotel & Resorts,Malls,Commercial & Business Centers,etc.

Available Finish
Pure polyester powder coated
• White
• Black
• Grey

Accessory
Clamps.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

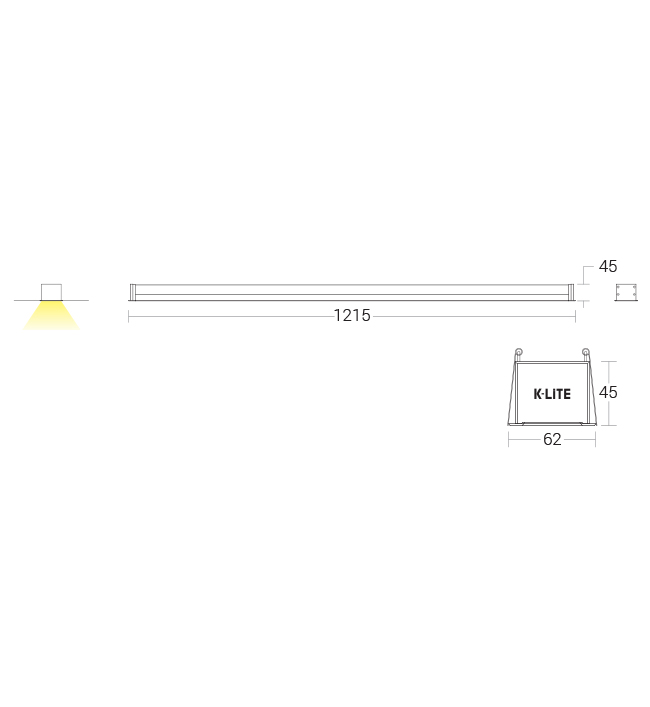

KL-3542Upto 40W LED 2700K,3000K,4000K,5700K BA:110°, Polycarbonate1210 x 52 x 45mm3542.pdf
KL-3543Upto 40W LED 2700K,3000K,4000K,5700K BA:110°, PolycarbonateC.O.D : 1208 x 55mmKL-3543-BA110D-CW.IES
KL-3543-BA110D-CW.PDF
3543.pdf
